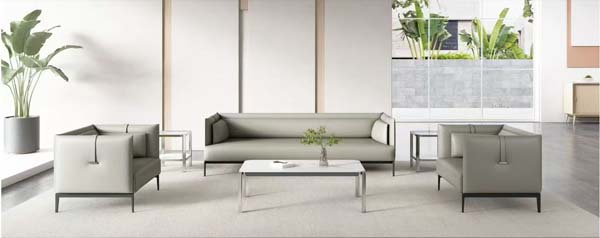

Product supplierModern Light Gray Commercial Office Reception Sofa Set (3+1+1 Seating Group with Matching Tables), 1.2mm thick wear-resistant light gray PU leather
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2200 × 850 × 850 mm | |
|---|---|---|
| Seat height (all seating units) | 450 mm | |
| Seat depth (all seating units) | 600 mm | |
| Backrest height (above seat) | 400 mm | |
| Armrest width | 120 mm | |
| Steel leg diameter | 30 mm | |
| Leg ground clearance | 150 mm | |
| Coffee table tabletop thickness | 12 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| 3-seat sofa total static load capacity | 450 kg | |
|---|---|---|
| 3-seat sofa net weight | 52 kg | |
| Foam filling density | 40 kg/m³ | |
| Foam rebound rate | 60% | |
| Upholstery abrasion resistance | 50000 cycles | |
| Commercial warranty period | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | 1.2mm thick wear-resistant light gray PU leather | |
|---|---|---|
| Internal seat cushion filling | 40 density high-resilience polyurethane foam | |
| Internal structural frame | 1.2mm thick welded carbon steel tube | |
| Support legs (sofa and armchairs) | Powder-coated matte black carbon steel square tube | |
| Armrest external strap detail | Matching PU leather fixed strap | |
| Coffee and side table tops | 12mm thick white matte sintered stone | |
| Table support legs | Clear transparent acrylic rectangular tube | |
| Seat base support | 8mm thick elastic webbing under foam layer | |
| Back cushion filling | 30 density soft polyurethane foam | |
| Frame surface treatment | Electrostatic powder coating on steel components | |
| Seam stitching pitch | 8 stitches per inch | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed 3-seat sofa + 2 single armchairs facing central coffee table | |
|---|---|---|
| Table set composition | 1 central rectangular coffee table + 2 square side tables placed adjacent to armchairs | |
| Seating structure | Fixed non-reclining, non-adjustable upholstered seats and backs | |
| Upholstery maintenance | Stain-resistant PU leather surface, wipe clean with soft dry cloth | |
| Foot design | Fixed non-adjustable steel legs with non-slip floor protection pads | |
| Color customization option | Available in 7 standard commercial colors including black, navy, gray, brown | |
| Seating capacity | 5 total seats (3 on main sofa, 1 per armchair) | |
| Assembly requirement | Leg and table base attachment required on delivery | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate office reception lobbies | Formal light gray styling matches professional corporate front-of-house environments | |
|---|---|---|
| Office waiting areas and visitor lounges | 5-seat capacity supports small group visitor waiting with table surfaces for items | |
| Commercial building public waiting zones | Durable commercial-grade materials withstand high-traffic daily public use | |
| Hotel lobby guest seating areas | Minimalist design complements modern hotel interior design schemes | |
| Executive office meeting break-out zones | Compact set fits informal meeting and casual discussion spaces | |
| Small business customer reception areas | Complete ready-to-use set eliminates need to source separate matching tables | |
| Medical and clinic waiting spaces | Stain-resistant wipe-clean upholstery supports hygiene requirements | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | Safety requirements for office furniture, applies to public area seating components | |
|---|---|---|
| EN 1022:2018 | Domestic and contract seating, stability test requirements | |
| EN 12520:2015 | Furniture, strength, durability and safety requirements for seating | |
| EN 16139:2013 | Strength, durability and safety requirements for non-domestic seating |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Safety and performance standard for lounge and public area seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies if solid wood internal frame is used | |
|---|---|---|
| GB/T 19001-2016 | Quality management system requirement for commercial furniture manufacturers | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture for indoor use | |
| GB/T 35607-2017 | Technical requirements for green furniture evaluation, commercial seating |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies if solid wood internal frame is used; 2. GB/T 19001-2016: Quality management system requirement for commercial furniture manufacturers; 3. GB 18584-2001: Limit of harmful substances in wooden furniture for indoor use; 4. GB/T 35607-2017: Technical requirements for green furniture evaluation, commercial seating; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
