| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| 3-seater sofa overall dimensions | 2080 x 880 x 900 mm | |
|---|---|---|
| Single armchair overall dimensions | 920 x 860 x 880 mm | |
| Seat height from floor | 450 mm | |
| Seat depth (usable) | 580 mm | |
| Seat width per person | 630 mm | |
| Backrest height (above seat) | 420 mm | |
| Armrest height from seat | 200 mm | |
| Wood trim thickness (arm and back corner) | 50 mm | |
| Foot height | 30 mm | |
| Armrest width | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| 3-seater sofa net weight | 78 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Seat foam density | 40 kg/m³ | |
| Backrest foam density | 30 kg/m³ | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Recommended daily usage cycle | 8 hours | |
| PU upholstery abrasion resistance | 50000 cycles | |
| Floor glide static load rating | 60 kg per glide | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery material | Black polyurethane (PU) faux leather, 1.0mm thickness, matte finish | |
|---|---|---|
| Seat padding | High-density polyurethane foam, 120mm thick, 40kg/m³ density | |
| Backrest padding | Medium-density polyurethane foam, 80mm thick, 30kg/m³ density | |
| Corner accent trim | Walnut-stained solid hardwood veneered MDF, polished clear finish | |
| Internal frame | 1.2mm thick rectangular steel tube frame, powder-coated black | |
| Armrest structure | Padded PU upholstery over solid wood arm core, capped with walnut wood trim | |
| Support feet | Walnut-stained solid hardwood block feet, with anti-slip plastic floor glides | |
| Under-seat support | Elastic webbing suspension over serpentine steel springs | |
| Seat base panel | 12mm thick plywood deck under foam padding | |
| Back inner panel | 9mm thick hardboard backing for foam attachment | |
| Coffee table top | 10mm thick black tempered glass with polished edge | |
| Coffee table frame and drawers | Brushed stainless steel frame with walnut-veneer drawer fronts and stainless steel handles |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fixed 3-seater + 2 single armchair layout for 5 total users | |
|---|---|---|
| Positioning | Freestanding placement, does not require wall mounting, can be arranged in U-shaped or parallel reception layouts | |
| Floor protection | Anti-slip polymer glides on all feet prevent scuffing on hard tile or polished stone floors | |
| Maintenance feature | Smooth PU upholstery surface can be wiped clean with standard disinfectant wipes without staining or material damage | |
| Structural durability | Fixed welded steel frame eliminates loose joint wobble during regular use | |
| Weight distribution | Even weight spread across 4 feet per unit prevents floor indentation on soft flooring materials | |
| Positioning flexibility | Freestanding placement, no wall mounting required, supports U-shaped or parallel reception layouts | |
| Structural stability | Welded steel frame with reinforced corner joints eliminates loose joint wobble during regular use | |
| Coffee table storage function | 2 integrated soft-close drawers in matching coffee table provide enclosed storage for tea service or office supplies | |
| Static posture support | Fixed upright seat and back angle supports formal attentive seating for 30 minute visitor stays without slouching | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
| Total number of shipping cartons | 3 | |
|---|---|---|
| 3-seater sofa carton dimensions | 2130 x 930 x 620 mm | |
| Single armchair carton dimensions (per unit) | 970 x 910 x 600 mm | |
| Total shipping gross weight | 182 kg | |
| Total shipping volume (CBM) | 2.29 | |
| Assembly time per set | 40 minutes | |
| 20ft GP container loading quantity | 18 sets | |
| 40ft HQ container loading quantity | 46 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Executive office reception area | Formal black and walnut finish matches professional executive office decor for hosting visiting clients and guests | |
|---|---|---|
| Corporate lobby waiting zone | 5-seat configuration provides adequate guest seating for medium-sized office lobbies without crowding walkways | |
| Meeting room breakout space | Compact footprint fits in meeting room perimeter areas for informal post-meeting discussions or temporary overflow seating | |
| Government and institutional reception spaces | Conservative styling meets formal decor requirements for public sector office reception areas | |

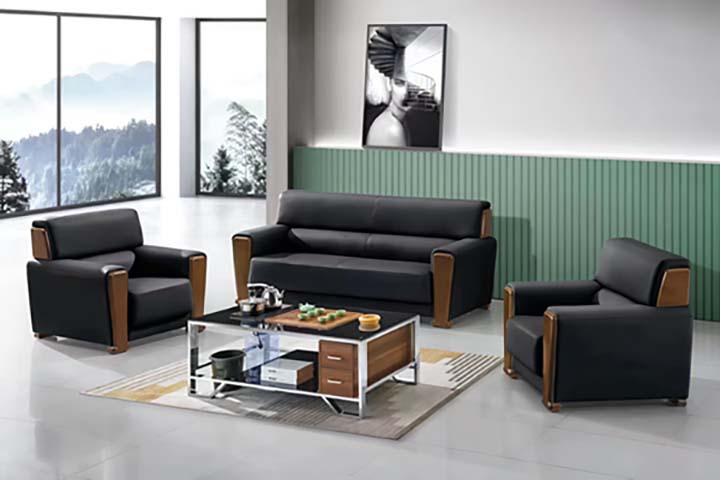

| Recommended companion furniture | Pairs with glass-top metal frame coffee tables (as pictured) for guest tea and document placement during meetings | |
| Recommended companion configuration | Pairs with the pictured glass-top metal frame coffee table for guest tea service and document placement during meetings | |
| Small business waiting area | Scaled footprint fits in 25sqm reception spaces for law firms, accounting offices or medical clinics | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
