PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3800 × 1850 × 790 mm
Overall set dimensions	3800 x 1850 x 790 mm
Standard lounge seat height	450 mm
Individual 2-seat module dimensions	1600 x 900 x 790 mm
Individual 1-seat module dimensions	900 x 900 x 790 mm
Seat cushion depth	650 mm
Backrest height above seat	340 mm
Armrest width	120 mm
Integrated side console table dimensions	600 x 600 x 450 mm
Large central coffee table dimensions	1800 x 800 x 420 mm
Small central coffee table dimensions	700 x 700 x 450 mm
Knee clearance under coffee tables	380 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set net weight reference	300 kg
Per-seat static load capacity	156 kg
Seating capacity for full set	6 persons
Upholstery abrasion resistance	50000 Martindale cycles
Foam compression set resistance	95% rebound after 40% compression
Recliner swivel rotation range	360 degrees
Recliner maximum recline angle	135 degrees
Commercial use warranty period	3 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	1.4mm thick top-grain corrected leather, dyed black/brown
Seat cushion padding	30D high-density polyurethane foam, 120mm thick seat core
Backrest padding	25D polyurethane foam, 80mm thick, wrapped in soft fiber
Internal seat frame	Kiln-dried solid hardwood frame, 30mm section, glued and screwed
Seat support system	80mm wide sinuous steel springs, 4mm gauge, spaced 100mm apart
Sectional base structure	Polished chrome-plated cantilever steel legs, 2mm wall thickness
Recliner base structure	Polished aluminum star swivel base with 300mm diameter
Coffee table tops	12mm thick polished dark stone composite with steel edge trim
Coffee table support bases	Polished 304 stainless steel pedestal and frame, 50mm diameter column
Integrated side console tops	Matched leather-wrapped surface with steel edge trim
Stitching specification	Bonded nylon thread, 8 stitches per 30mm seam pitch
Recliner mechanism hardware	1.5mm thick steel recline mechanism with lock positions

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular reconfiguration	Individual seat and console modules connect via heavy-duty steel brackets for custom curved layout adjustments
Recliner swivel function	360-degree smooth rotation on sealed ball bearing swivel joint
Recliner position lock	Infinite position lock between upright and 135-degree full recline
Integrated side console function	Flat hard surface at arm height for placement of lamps, beverages, and small personal items
Sectional floor protection	Felt glides fitted to base legs prevent scratching on polished hard flooring
Coffee table surface function	Smooth non-porous stone composite surface resists liquid spills and supports service items
Upholstery maintenance	Treated leather surface resists staining and allows wiping clean with standard leather care products
Module connection stability	Interlocking steel brackets prevent separation of modules during regular seating use
Matching brown recliner dimensions	840 x 1270 x 1020 mm
Recliner seat height	450 mm
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total number of packages per full set	7 packages
Largest carton dimensions	1600 x 1000 x 800 mm
Total packaged gross weight	300 kg
Total packaged volume	4.7 CBM
assembly time	50 minutes
20ft GP container loading quantity	10 sets
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office lounge areas	Provides premium curved conversation seating for visitor reception and executive informal meetings
High-end residential living rooms	Serves as luxury statement seating for open-plan modern living spaces with curved layout focus
VIP hotel lobby waiting areas	Offers durable, comfortable seating for premium hotel guest waiting and relaxation zones
Private cinema media rooms	Curved layout provides unobstructed viewing angles for multiple seated users facing a central screen
Corporate boardroom breakout spaces	Supports informal collaborative discussion away from formal conference tables
Luxury yacht and private aviation lounges	Compact modular design fits curved interior bulkheads for premium transport seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Furniture strength, durability and safety for domestic seating, applicable to structural performance verification
EN 1022:2018	Furniture seating determination of stability, applicable to anti-tip testing for all seating units
EN 13356:2018	Furniture non-domestic seating performance requirements, applicable to commercial lounge durability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2021	Lounge and public seating performance standard, applicable to static load and durability testing for commercial use
ANSI/BIFMA X5.1-2017	Office chairs general purpose, applicable to recliner swivel mechanism and base durability verification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal hardwood frame structural integrity
GB/T 16799-2008	Leather for furniture, applicable to upholstery leather material performance and testing
GB/T 10357.1-2013	Furniture mechanical performance test for seating, applicable to static load and durability verification
GB 18584-2001	Indoor decoration material limit of harmful substances for wooden furniture, applicable to formaldehyde emission testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal hardwood frame structural integrity;
2. GB/T 16799-2008: Leather for furniture, applicable to upholstery leather material performance and testing;
3. GB/T 10357.1-2013: Furniture mechanical performance test for seating, applicable to static load and durability verification;
4. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, applicable to formaldehyde emission testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CLS-3800-CRV-LEA

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CLS-3800-CRV-LEA

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CLS-3800-CRV-LEAOpen Export Tool

Quick Actions

Post an RFQ

Product Description

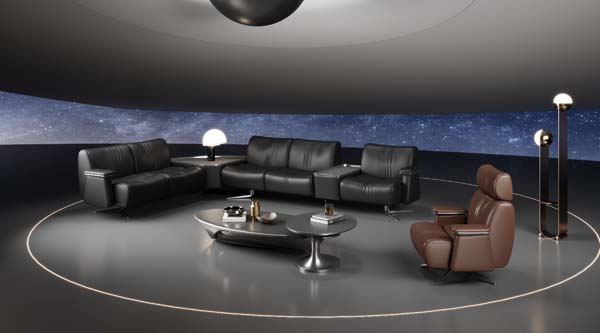

The CLS-3800-CRV-LEA modular curved leather sectional lounge set is an unbranded public and premium space seating solution designed for flexible, high-comfort configuration. Its visual identity centers on a smooth, flowing curved form, delivered through connected modular units that create an inclusive, conversational layout, paired with a matching swivel recliner and coordinated coffee tables for a cohesive, polished aesthetic. The set is built for long-term heavy use: seating surfaces are upholstered in 1.4mm thick top-grain corrected leather, offered in black or brown dyed finishes, with a solid kiln-dried hardwood internal frame secured with glued and screwed joinery. Seat cushions use 120mm thick 30D high-density polyurethane foam, while backrests use 80mm thick 25D polyurethane foam wrapped in soft fiber, supported by 80mm wide sinuous steel springs. Sectional units sit on polished chrome-plated cantilever steel legs, the matching recliner features a polished aluminum star swivel base, and accompanying coffee tables have 12mm thick polished dark stone composite tops with steel edge trim, mounted on 304 stainless steel pedestal bases. The upholstery delivers 50000 Martindale cycles of abrasion resistance, with foam retaining 95% rebound after 40% compression, and each seat supports a 156kg static load. The modular system connects individual 1-seat, 2-seat, and integrated side console units via heavy-duty steel brackets, allowing custom curved layout adjustments to fit space constraints. The matching recliner offers 360-degree smooth rotation on sealed ball bearings, with infinite position locking between upright and 135-degree full recline. Integrated side consoles sit at arm height to hold beverages, small personal items, or table lamps, while felt glides on sectional legs prevent scratches to polished hard flooring. Coffee table surfaces are non-porous to resist liquid spills, and the treated leather upholstery resists staining, wiping clean easily with standard leather care products. The full set seats 6 people, with a standard 450mm seat height and 650mm seat depth for accessible, comfortable use. This set is suited for executive office lounge reception areas, high-end open-plan residential living rooms, VIP hotel lobby waiting zones, private cinema media rooms where its curved layout delivers unobstructed central screen viewing, corporate boardroom breakout spaces for informal collaboration, and luxury yacht or private aviation lounges where its modular form aligns with curved interior bulkheads. For procurement, note the full set ships in 7 packages, with a total packaged gross weight of 300kg and total packaged volume of 4.7 CBM, requiring 50 minutes of assembly time. A 20ft GP container can hold 10 sets, making it scalable for large-scale commercial furnishing projects. No third-party certifications are listed for this product.
