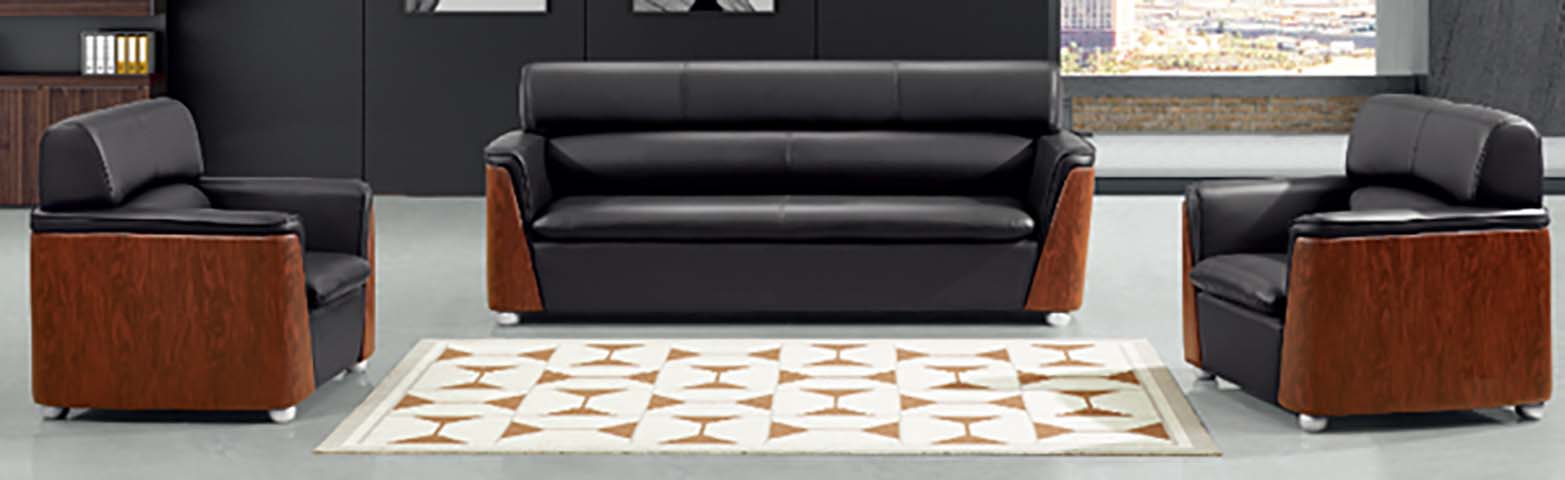

Product supplier3-Piece Commercial Office Reception Sofa Set (3-Seater + 2 Armchairs), 1.2mm thick black PU faux leather
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2180 × 900 × 750 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Seat depth (per seat position) | 550 mm | |
| Backrest total height | 400 mm | |
| Armrest height from seat surface | 180 mm | |
| Feet height from floor | 30 mm | |
| Walnut veneer side panel thickness | 18 mm | |
| Per-seat usable width (three-seater) | 680 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight | 160 kg | |
|---|---|---|
| Per-seat static load rating | 150 kg | |
| Three-seater total static load rating | 450 kg | |
| PU upholstery abrasion resistance | 50000 double rubs | |
| Seat foam density | 50 kg/m³ | |
| Backrest foam density | 28 kg/m³ | |
| Foam rebound rate | 60% | |
| Structural frame warranty | 5 years | |
| Surface performance | Water, scratch and stain resistant | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | 1.2mm thick black PU faux leather | |
|---|---|---|
| Side accent panels | Walnut grain wood veneer over MDF core | |
| Inner support frame | Kiln-dried insect-treated solid hardwood | |
| Seat support system | 3.2mm diameter manganese steel sinuous springs | |
| Cushion filling | High-density polyurethane foam, dual-layer construction | |
| Furniture feet | Chrome-plated polished metal, rounded cylindrical shape | |
| Stitching details | High-strength polyester thread, 8 stitches per 30mm seam | |
| Armrest padding | 20mm thick high-density foam wrapped over PU leather | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | 1 three-seat sofa + 2 matching single armchairs | |
|---|---|---|
| Recline function | Fixed upright backrest, no tilt or recline adjustment | |
| Mobility | Static fixed placement, no casters installed | |
| Modular arrangement | Freestanding units, configurable to space layout | |
| Cushion design | Fixed attached seat and back cushions, no removable covers | |
| Load distribution | Even weight distribution across hardwood frame and spring base | |
| Surface maintenance | Wipe-clean PU upholstery, no specialized cleaning required | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office reception areas | Formal symmetric layout for guest waiting before executive meetings | |
|---|---|---|
| Corporate lobby waiting zones | High-traffic durable seating for daily visitor use in office buildings | |
| Conference room break-out spaces | Permanent side seating for informal discussion during long meetings | |
| Public institution visitor areas | Professional stain-resistant seating for government or financial service offices | |
| Recommended companion furniture | Matched walnut-veneer coffee table for central drink and document placement | |
| Target user group | Adult office visitors and meeting attendees, short to medium wait duration | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-2:2018 | Office furniture seating safety requirements, applicable for public reception use | |
|---|---|---|
| EN 1022:2018 | Domestic and contract seating stability test requirements |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Lounge and public seating safety and performance standard for commercial use | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | General office seating durability and static load test requirements |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood veneer trim panels | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and faux leather upholstery materials | |
| GB/T 1952.1-2012 | Mechanical performance requirements for sofas for contract office use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood veneer trim panels; 2. GB 20400-2006: Limit of harmful substances in leather and faux leather upholstery materials; 3. GB/T 1952.1-2012: Mechanical performance requirements for sofas for contract office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
