PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	950 × 800 × 860 mm
Desk height adjustment range maximum	860 mm
Attached upper bookshelf dimensions	720 x 250 x 350 mm
Seat cushion dimensions	430 x 410 mm
Seat height adjustment maximum	600 mm
Backrest height adjustment maximum	920 mm
Under-desk seated knee clearance height	600 mm
Desk leg base footprint width per leg	380 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desk static load capacity	100 kg
Recommended maximum child user height	1600 mm
Recommended user age range maximum	12 years
Set total net weight	30 kg
Seat foam density	45 kg/m³
Seat foam thickness	120 mm
Upholstery fabric abrasion resistance	30000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desk support frame	1.2mm thick powder-coated carbon steel
Desktop panel	18mm thick E1-grade MDF with matte easy-clean laminate
Desktop edge trim	Soft rounded PVC edge banding
Chair internal support frame	1.0mm thick powder-coated carbon steel
Seat and back padding	High-density high-resilience polyurethane foam
Chair upholstery	Breathable woven polyester fabric
Caster wheels	50mm diameter PU soft tread casters
Bookshelf panel	15mm thick E1-grade MDF with matching laminate finish
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Desk height adjustment	Hand-crank mechanical lift locking at 10mm increments for growing children
Desktop tilt adjustment	Stepless friction lock at 45° for writing, reading and drawing positions
Backrest adjustment	Tool-less sliding height adjustment to align lumbar support with child spine
Caster safety feature	Gravity auto-lock casters that lock when seated to prevent unwanted movement
Attached bookshelf storage	Open divided compartments for books, stationery and reading stand
Anti-tip structure	Wide splayed desk leg base with floor contact pads to prevent forward tipping
Desktop maximum tilt angle	45°
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Children's bedroom study area	Fits compact home spaces for daily homework, reading and art activities
Primary school home study use	Accommodates users aged 12as children grow through primary education
After-school tutoring classroom setup	Ergonomic design supports proper seated posture for extended study sessions
Recommended paired accessories	Clip-on LED desk lamp, detachable book stand, pull-out under-desk storage drawer
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1729-1:2015	Applicable for safety and strength requirements of educational furniture
EN 71-3:2019	Applicable for migration of certain elements in children's furniture materials

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3976-2014	Applicable for functional dimensions of student desks and chairs for primary/secondary use
GB 28007-2011	Applicable for general safety requirements of children's furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3976-2014: Applicable for functional dimensions of student desks and chairs for primary/secondary use;
2. GB 28007-2011: Applicable for general safety requirements of children's furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · KDS-9580-TILT-SET

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · KDS-9580-TILT-SET

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · KDS-9580-TILT-SETOpen Export Tool

Quick Actions

Post an RFQ

Product Description

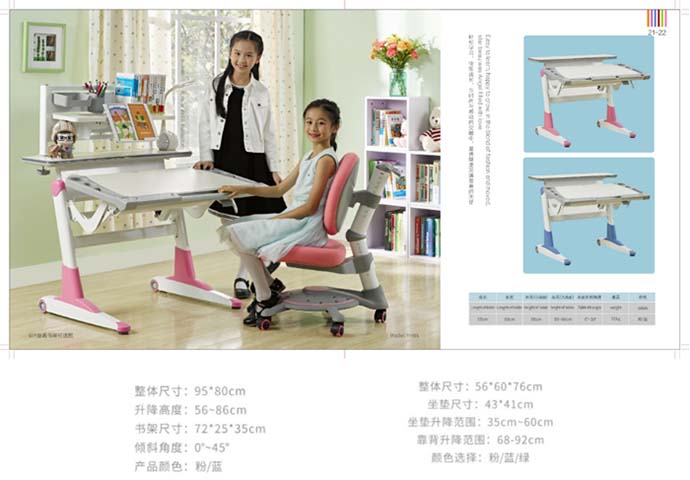

The Height-Adjustable Ergonomic Kids Study Desk and Chair Set with Attached Bookshelf (model KDS-9580-TILT-SET) is an unbranded child-sized study solution designed to support growing users through their primary school years. Visually, the set presents a streamlined, child-centric layout: the desk integrates a raised upper bookshelf with open divided compartments at its rear, while the matching chair sits neatly beneath the work surface to minimize unused floor space. Its soft rounded edge detailing and neutral, easy-coordinate finish suit a range of interior palettes. The desk frame is constructed from powder-coated carbon steel, paired with an 18mm thick E1-grade MDF desktop finished with a matte easy-clean laminate and soft rounded PVC edge banding. The attached bookshelf uses matching 15mm thick E1-grade MDF for visual consistency. The chair features a thinner powder-coated carbon steel internal frame supported by a bent plywood seat base, padded with high-density high-resilience polyurethane foam and upholstered in breathable woven polyester fabric. It rides on 50mm diameter PU soft tread casters designed to glide smoothly without damaging hard flooring. Functional design is tailored to long-term child use: the desk uses a hand-crank mechanical lift that locks in small increments to adjust height, with a stepless friction lock that tilts the desktop to a maximum 45 degrees to support writing, reading, and drawing positions. The chair offers tool-free sliding height adjustment for both the seat and backrest to align lumbar support with a child’s developing spine, and its gravity auto-lock casters lock automatically when a child is seated to prevent unwanted movement. The wide splayed desk leg base with floor contact pads provides anti-tip stability, while the integrated bookshelf keeps frequently used books, stationery, and reading materials within easy reach. This set fits well in compact children’s bedroom study areas for daily homework, reading, and art activities, as well as in after-school tutoring classrooms where proper seated posture is important for extended study sessions. It accommodates users up to 12 years of age. For procurement, note that each set ships in two cartons, with an assembly time of 40 minutes per unit. The set supports daily use of 8 hours per day, and pairs well with complementary accessories including clip-on LED desk lamps, detachable book stands, and pull-out under-desk storage drawers. Load planning for 20-foot containers accounts for 135 sets at 85% space utilization for bulk orders.

Height-Adjustable Ergonomic Kids Study Desk and Chair Set with Attached Bookshelf Specifications
