PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3300 × 1800 × 850 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	160 kg
Maximum static load per seat	150 kg
Total seating capacity	4 adults
Foam density (seat cushions)	38 kg/m³
Fabric abrasion resistance	30000 Martindale cycles
Seat cushion rebound rate	60%
Frame load-bearing capacity	600 kg
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	Matte light gray linen-look woven polyester
Internal frame	Kiln-dried solid pine wood
Seat cushion filling	High-resilience polyurethane foam wrapped in 50g polyester fiber
Back cushion filling	Blown polyester fiber fill
Throw pillow filling	100% hollow polyester fiber fill
Seat base support	4mm thick sinuous spring system with polypropylene webbing
Stitching detail	Matched light gray polyester thread, 8 stitches per inch
Undercarriage glides	Non-marking black plastic floor glides
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	Three separate sections (left chaise, two middle seats) connected with metal alligator clips
Removable cushion covers	All seat, back and throw pillow covers have hidden zippers for removal and dry cleaning
Chaise lounge function	Left-side extended chaise supports full leg extension for reclined seating
Low-profile base design	Floor-hugging frame eliminates visible legs, creating a streamlined minimalist silhouette
Reversible throw pillows	All included throw pillows are finished on both sides for symmetrical styling
Independent back support	Each seat position has a separate fixed back cushion for dedicated lumbar support
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room	Suitable for open-plan modern living rooms as primary seating for families and guests
Open-plan loft apartment	Low-profile scale fits high-ceiling industrial or minimalist loft spaces without blocking sightlines
Casual office lounge area	Appropriate for informal meeting spaces, breakout rooms or employee relaxation areas
Small home media room	Deep seat cushions provide comfortable viewing position for extended movie or media use
Neutral base for styling	Light gray fabric acts as a neutral foundation for accent pillows, throws and decorative items

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable European standard for domestic seating furniture strength, durability and safety requirements
EN 1021-1:2014	Applicable upholstered furniture flammability standard for ignition resistance from smoldering cigarettes

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 1952.1-2012	Applicable Chinese standard for upholstered sofas, specifying strength, durability and dimension requirements for residential use
GB 18401-2010	Applicable national textile safety standard, Category B for direct skin contact upholstery fabrics

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 1952.1-2012: Applicable Chinese standard for upholstered sofas, specifying strength, durability and dimension requirements for residential use;
2. GB 18401-2010: Applicable national textile safety standard, Category B for direct skin contact upholstery fabrics;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SEC-L-MOD-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SEC-L-MOD-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SEC-L-MOD-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

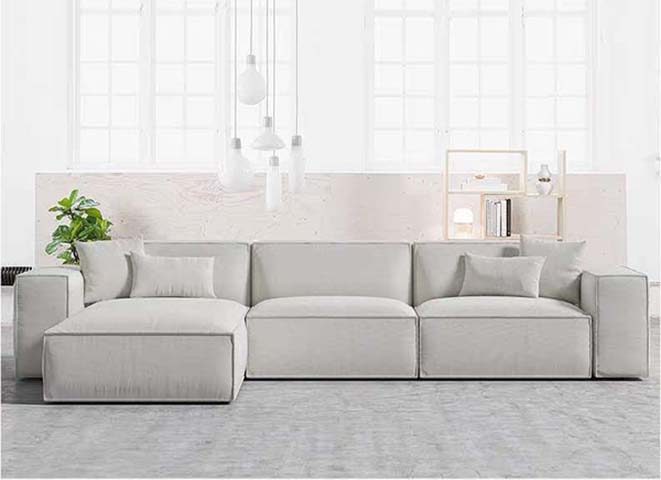

The Unbranded SEC-L-MOD-001 L-Shaped Light Gray Fabric Modular Sectional Sofa is a minimalist seating solution defined by its clean, streamlined low-profile silhouette, with a floor-hugging frame that eliminates visible legs for an unbroken visual line. It is laid out as a left-side extended chaise paired with two middle seating positions, forming a generous L-shape that accommodates four adults, with squared armrests that reinforce its understated, contemporary aesthetic. The upholstery uses matte light gray linen-look woven polyester, stitched with matched light gray polyester thread for a seamless, polished finish, and the sofa stands on non-marking black plastic floor glides that protect finished flooring surfaces. Its internal structure relies on a kiln-dried solid pine wood frame, paired with a 4mm thick sinuous spring system and polypropylene webbing for stable seat support. Seat cushions are filled with high-resilience polyurethane foam wrapped in polyester fiber, topped with separate fixed back cushions filled with blown polyester fiber to deliver dedicated lumbar support for each seating position, while included reversible throw pillows are stuffed with hollow polyester fiber for soft, evenly distributed padding. All seat, back, and throw pillow covers feature hidden zippers that allow simple removal for dry cleaning, and the three separate sofa sections connect via durable metal alligator clips to enable secure, stable modular configuration; the left-side chaise supports full leg extension for relaxed, reclined seating. The light gray fabric acts as a neutral styling base that pairs easily with accent pillows, throws, and other decorative elements, making the sofa suitable for a range of both residential and commercial spaces. It works well as primary family seating in open-plan modern living rooms, fits seamlessly into high-ceiling industrial or minimalist loft apartments without blocking cross-space sightlines, offers comfortable support for extended viewing in small home media rooms, and creates a relaxed, inviting atmosphere in casual office lounge areas, informal meeting spaces, and employee breakout rooms. For procurement planning, note that each set ships in two cartons, with an assembly time of 40 minutes per unit, and factor in appropriate handling support given the product’s total net weight. Buyers should also plan for regular dry cleaning of removable cushion covers to maintain upholstery appearance over extended use.

L-Shaped Light Gray Fabric Modular Sectional Sofa Specifications
