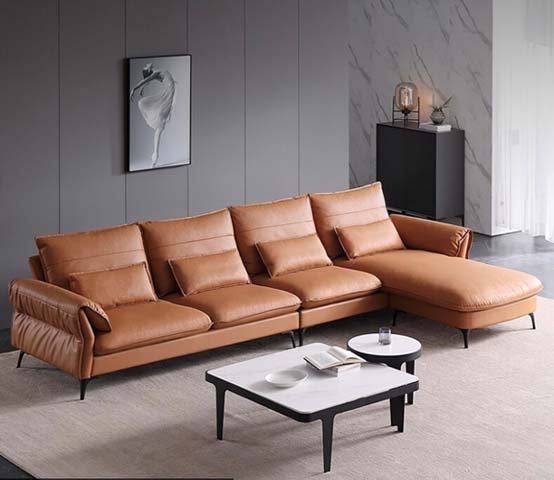

Product supplierL-Shaped Right-Facing Leather Upholstered Sectional Sofa, Top-grain cowhide leather
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3400 × 1800 × 900 mm | |
|---|---|---|
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 110 kg | |
|---|---|---|
| Total static load capacity | 480 kg | |
| Seat foam density | 45 kg/m³ | |
| Back foam density | 35 kg/m³ | |
| Foam rebound rate | 60% | |
| Fabric abrasion resistance (Martindale) | 50000 cycles | |
| Recommended maximum occupancy | 4 people | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Top-grain cowhide leather | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam wrapped in down blend | |
| Back cushion core | Medium-density polyurethane foam with fiber fill | |
| Throw pillow covers | Matching top-grain leather | |
| Support frame | Kiln-dried solid hardwood + plywood inner frame | |
| Sofa legs | 1.5mm thick powder-coated carbon steel | |
| Armrest padding | Multi-layer foam padding with stitched rolled edge | |
| Seam construction | Reinforced nylon stitching with 8mm stitch pitch | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Configuration layout | Right-hand facing chaise attached to 3-seat main sofa | |
|---|---|---|
| Cushion design | Loose, reversible seat and back cushions | |
| Back support adjustment | Dual horizontal stitching channels for structured lumbar support | |
| Surface protection | Smooth leather finish that resists liquid spills and easy wiping | |
| Floor protection | Plastic glides fitted to bottom of all metal legs | |
| Assembly requirement | 3 base sections bolted together on site | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room main seating | Suitable for open-plan modern residential living rooms | |
|---|---|---|
| Luxury apartment interior | Fits contemporary minimalist and light luxury design schemes | |
| Open lounge reception area | Appropriate for small office executive reception lounges | |
| Recommended supporting furniture | Pair with 1200mm stone-top coffee table and small side table as shown | |
| Recommended rug size | 3000 x 4000 mm low-pile area rug | |
| User height compatibility | Suitable for users 1550mm to 1850mm tall |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Domestic furniture safety recommendation | EN 12520:2015 | |
|---|---|---|
| Upholstered furniture flammability recommendation | EN 1021:2014 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Upholstered furniture safety recommendation | GB 20400:2006 | |
|---|---|---|
| Furniture structural durability recommendation | GB/T 3324 |
Standardized tender description text
This product must meet the following technical requirements: 1. Upholstered furniture safety recommendation: GB 20400:2006; 2. Furniture structural durability recommendation: GB/T 3324; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
