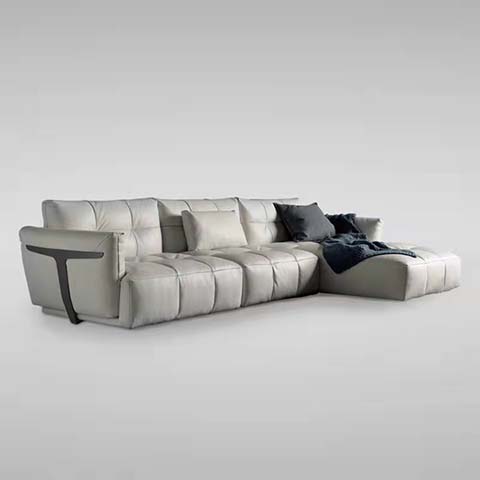

Product supplierLight Grey Channel-Tufted L-Shaped Modular Sectional Sofa with Integrated Cantilever Side Table, Kiln-dried solid hardwood + 18mm plywood
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3300 × 2100 × 880 mm | |
|---|---|---|
| Floor to seat height | 490 mm | |
| Seat depth (standard seating section) | 510 mm | |
| Chaise lounge seat depth | 1500 mm | |
| Backrest height above seat | 390 mm | |
| Armrest height above floor | 620 mm | |
| Integrated side table dimensions | 450 x 300 x 620 mm | |
| Single seat cushion width | 600 mm | |
| Base clearance above floor | 20 mm | |
| Throw pillow dimensions (included) | 500 x 500 mm | |
| Armrest width | 180 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight | 129 kg | |
|---|---|---|
| Per-seat static weight capacity | 135 kg | |
| Total static weight capacity | 816 kg | |
| Recommended seating capacity | 5 people | |
| Seat foam density | 45 kg/m³ | |
| Seat foam indentation load deflection | 38 ILD | |
| Back cushion foam density | 30 kg/m³ | |
| Cushion rebound rate | 60% | |
| Fabric abrasion resistance | 30000 double rubs | |
| Seam stitch pitch | 8 stitches per inch |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Inner load-bearing frame | Kiln-dried solid hardwood + 18mm plywood | |
|---|---|---|
| Seat suspension system | 8-gauge sinuous steel springs with polypropylene webbing | |
| Seat cushion core | 45kg/m³ high-resilience polyurethane foam wrapped with 50g polyester fiber | |
| Back cushion core | 30kg/m³ polyurethane foam mixed with blown polyester fiber | |
| Upholstery fabric | 380gsm light grey matte woven polyester fabric | |
| Integrated side table | 12mm thick matte black powder-coated carbon steel | |
| Lower base enclosure | Fabric-wrapped engineered wood block frame | |
| Throw pillows (included) | Polyester fabric cover with 100% polyester fiber fill | |
| Decorative throw blanket (displayed) | Dark navy woven polyester fabric | |
| Frame joint hardware | Zinc-plated steel corner brackets and wood screws | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular seat configuration | Fixed L-shape with right-aligned chaise, connected via steel bracket fasteners | |
|---|---|---|
| Integrated side table function | Cantilevered arm-mounted flat surface for drinks, small devices and reading materials | |
| Channel-tufted cushion structure | Vertically segmented seat and back cushions to prevent fill shift and maintain structured form | |
| Deep lounging support | Extended chaise section supports full leg extension for reclined relaxation | |
| Seat comfort design | Medium-firm foam support with fiber wrap for balanced softness and long-term shape retention | |
| Surface maintenance | Removable cushion covers with hidden zippers for spot cleaning or professional upholstery care | |
| Floor protection | Felt glides installed on base bottom to prevent hard floor scratching | |
| Modular reconfiguration potential | Sections can be separated and rearranged into alternate layouts using built-in connection hardware | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Primary seating for open-plan modern living spaces, fits 5users for daily use and gatherings | |
|---|---|---|
| Modern loft or apartment | Low-profile ground-hugging form suits minimalist, contemporary or wabi-sabi interior schemes | |
| Lounge relaxation zones | Chaise section supports reclined reading, media viewing and casual napping for home users | |
| Boutique office reception areas | Upscale upholstered design suitable for high-end workplace waiting or informal meeting spaces | |
| Open-concept studio spaces | L-shaped layout defines seating zones without blocking sightlines in compact open floor plans | |
| Recommended paired furniture | Low-profile coffee tables 400 mm high to align with seat height for ergonomic access |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture – Strength, durability and safety for domestic seating, applicable for residential use verification | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability test (smouldering cigarette), applicable for fabric fire safety |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to inner wood frame structural integrity | |
|---|---|---|
| GB 18401-2010 | National general safety technical code for textile products, applicable to upholstery fabric safety | |
| GB/T 1952.1-2012 | Test methods for sofas, applicable to static load, durability and stability performance verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to inner wood frame structural integrity; 2. GB 18401-2010: National general safety technical code for textile products, applicable to upholstery fabric safety; 3. GB/T 1952.1-2012: Test methods for sofas, applicable to static load, durability and stability performance verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
