Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 3530 x 1740 x 950 mm | |
|---|---|---|
| Seat height | 470 mm | |
| Main seat depth (non-chaise) | 620 mm | |
| Chaise lounge depth | 1740 mm | |
| Armrest height | 620 mm | |
| Armrest width | 180 mm | |
| Seat cushion thickness | 200 mm | |
| Back cushion thickness | 150 mm | |
| Leg height | 150 mm | |
| Backrest height above seat | 480 mm | |
| Chaise seat width | 1000 mm | |
| Per-seat width (main section) | 840 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Total static seating load | 350 kg | |
|---|---|---|
| Seat foam density | 45D | |
| Back/arm foam density | 30D | |
| Fabric Martindale abrasion resistance | 40000 cycles | |
| Wood frame moisture content | 10% | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Fabric colorfastness grade | 4 | |
| Frame structural warranty | 5 years | |
| Soft parts warranty | 3 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery fabric | Light gray woven tech-fabric, stain-resistant finish | |
|---|---|---|
| Internal frame | Kiln-dried solid larch wood + plywood reinforcement | |
| Seat support system | Serpentine steel springs + 50mm elastic webbing layer | |
| Seat cushion filling | 45D high-resilience polyurethane foam + 20mm soft foam topper | |
| Back cushion filling | 30D polyurethane foam + polyester fiber wrap | |
| Support legs | 1.5mm thick powder-coated black tapered steel legs | |
| Throw pillows | Polyester fiber filled, matching and contrasting covers | |
| Seam construction | Reinforced polyester thread stitching, edge piping detail | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
Adjustment / rotation / tilt / mobility / storage features
| Modular assembly | Two-section bolted connection between main seat and chaise | |
|---|---|---|
| Cushion design | Loose seat and back cushions for regular rotation and fluffing | |
| Leg installation | Screw-on tapered legs for knockdown shipping and easy assembly | |
| Seating configuration | Fixed right-hand chaise for L-shaped lounge layout | |
| Cushion cover access | Hidden zippers on cushion covers for removable dry cleaning | |
| Floor protection | Plastic end caps on leg bases to prevent hard floor scratching | |
| Weight distribution | 6 support legs (3 on main section, 3 on chaise) for even load spread | |
| Cleaning requirement | Water-free upholstery cleaner recommended for spot treatment | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Residential living room | Suitable for medium to large open-plan living spaces as primary seating | |
|---|---|---|
| Apartment lounge | Ideal for modern minimalist or Nordic style apartment common areas | |
| Small home office reception | Appropriate for informal client seating in contemporary home offices | |

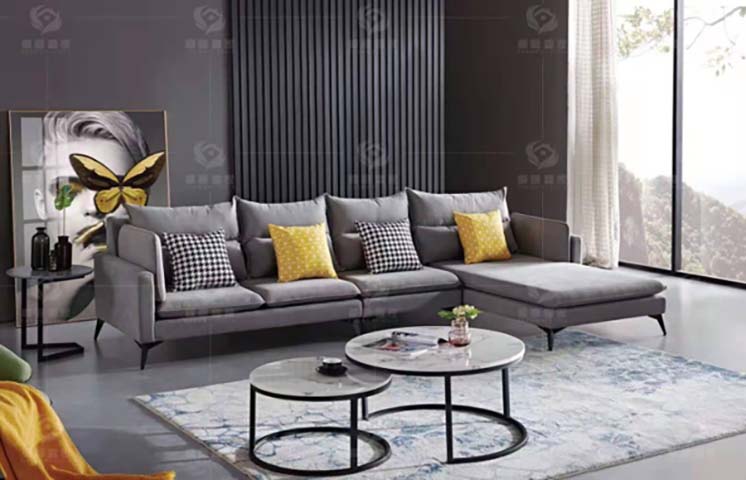

| Recommended pairing | Matches with 1000 mm round nesting coffee tables as shown in reference scene | |
| Target user group | Designed for households seeking durable, easy-maintenance lounge seating | |
| Layout recommendation | Place against wall with chaise oriented toward window or open room side |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety for residential seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance to smouldering cigarette |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal wood frame | |
|---|---|---|
| GB 18401-2010 | National textile safety specification, Category B for direct skin contact upholstery | |
| GB/T 1952.1-2012 | Strength and durability test standard for upholstered sofas |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame; 2. GB 18401-2010: National textile safety specification, Category B for direct skin contact upholstery; 3. GB/T 1952.1-2012: Strength and durability test standard for upholstered sofas; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
