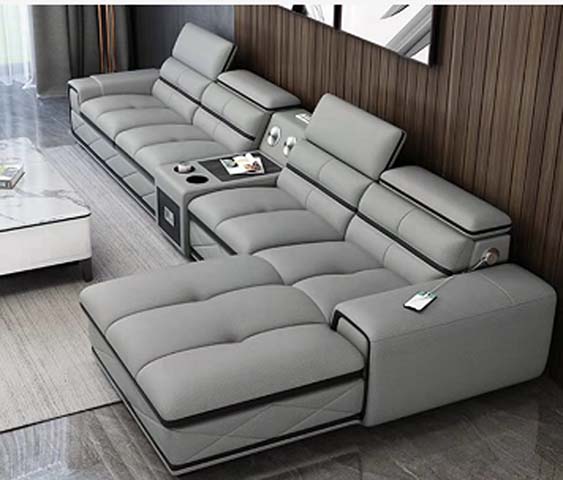

Name: Gray L-Shaped Manual Reclining Sectional Sofa with Chaise and Center Console
Brand: Youwei
SKU: UH8CAW

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3300 × 2460 × 1000 mm
Seat height	510 mm
Seat depth (non-chaise seats)	560 mm
Chaise lounge length	1650 mm
Armrest width	270 mm
Armrest height	620 mm
Leg height	130 mm
Console unit width	590 mm
Cup holder diameter	85 mm
Headrest adjustment height range	120 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	794 kg
Net product weight	165 kg
Seating capacity	5 persons
Recline mechanism cycle rating	25000 cycles
Foam compression set resistance	90% rebound
Upholstery abrasion resistance	50000 double rubs
Warranty period	2 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery	1.2 mm thick gray PU leather with black contrast piping
Seat cushion fill	45 kg/m³ high-density polyurethane foam with 150 g/m² polyester wadding
Backrest and armrest fill	35 kg/m³ polyurethane foam with soft polyester batting
Internal frame	30 mm thick kiln-dried solid wood with 18 mm plywood enclosure
Seat suspension	3.8 mm gauge sinuous no-sag springs with 50 mm elastic webbing
Recliner mechanism	1.5 mm thick powder-coated steel manual recline hardware
Headrest mechanism	1.2 mm thick steel ratchet adjustment hardware
Console interior	Black laminated engineered wood with flip-up padded top
Base legs	Polished chrome-plated steel feet
Stitching details	30 mm seam pitch with bonded polyester thread
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Manual seat recline	Side-lever activated, locks at 3 positions up to 160-degree full recline
Adjustable headrests	Ratchet-style individual headrests lock at 4 height positions
Center console storage	Flip-up padded lid reveals 20 L enclosed storage compartment
Integrated cup holders	Two recessed 85 mm diameter cup holders in console surface
Removable backrests	Quick-release back panels allow narrow doorway entry
Console table surface	Padded flat top section holds remotes, mobile devices or small items
Chaise lounge extension	Fixed extended seat provides full leg rest for end seat position
Reclined seat total depth	1780 mm
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Individual carton dimensions	1920 x 920 x 620 mm, 1350 x 920 x 620 mm, 990 x 920 x 620 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Large residential living rooms	Fits open-plan living areas 30 sqm or larger for family and guest seating
Home media or theater rooms	Reclining seats, headrests and cup holders support long viewing sessions
Open-plan lounge spaces	L-shaped configuration defines seating zones in open-concept home layouts
Households with 4-6 members	5 individual seats accommodate families and regular guest groups
Contemporary modern interiors	Gray neutral finish and clean lines match minimalist, modern decor schemes
Casual relaxation spaces	Reclining and chaise functions support laid-back lounging and resting

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applies to domestic seating furniture, covers strength, durability and stability test requirements
EN 1021-1:2014	Applies to upholstered furniture, covers cigarette ignition resistance for fire safety
EN 13759:2003	Applies to manual recliner mechanisms, covers operational safety and cycle performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 1952.1-2012	Applies to upholstered sofas for residential use, covers strength, durability and safety requirements
GB 20400-2006	Applies to leather/faux leather upholstery, sets limits for harmful substances in materials
GB/T 3324-2017	Applies to wooden furniture frame components, covers dimension tolerance and structural stability
GB 6675.4-2014	Applies to small hardware components, sets requirements to prevent entrapment or sharp edges

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 1952.1-2012: Applies to upholstered sofas for residential use, covers strength, durability and safety requirements;
2. GB 20400-2006: Applies to leather/faux leather upholstery, sets limits for harmful substances in materials;
3. GB/T 3324-2017: Applies to wooden furniture frame components, covers dimension tolerance and structural stability;
4. GB 6675.4-2014: Applies to small hardware components, sets requirements to prevent entrapment or sharp edges;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-REC-SEC-GRY-CHAIR-CON

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-REC-SEC-GRY-CHAIR-CON

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-REC-SEC-GRY-CHAIR-CONOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Youwei Gray L-Shaped Manual Reclining Sectional Sofa with Chaise and Center Console, model L-REC-SEC-GRY-CHAIR-CON, is a public-facing seating solution crafted for high-occupancy casual spaces, defined by a streamlined contemporary silhouette finished in neutral gray with sharp black contrast piping. Its L-shaped corner configuration integrates a long fixed chaise lounge, two manual reclining seats, and a central padded console unit, supported by polished chrome-plated steel feet that lift the frame for a light, modern visual profile. Seating surfaces align to a 510 mm seat height, with 560 mm deep non-chaise seats, a 1650 mm chaise extension, 270 mm wide armrests set to 620 mm height, and 130 mm tall legs, creating a balanced, welcoming layout that anchors open zones without visual heaviness. Built for frequent, long-term use, the sofa features 1.2 mm thick gray PU upholstery rated to 50000 double rubs for abrasion resistance, with cushioning layered for consistent comfort: seat cores use 45 kg/m³ high-density polyurethane foam wrapped in 150 g/m² polyester wadding to deliver 90% rebound and resist compression set, while backrests and armrests use 35 kg/m³ polyurethane foam cushioned with soft polyester batting. The internal frame combines 30 mm thick kiln-dried solid wood with an 18 mm plywood enclosure, supported by 3.8 mm gauge sinuous no-sag springs paired with 50 mm elastic webbing for even weight distribution across the 794 kg total static load capacity. Manual recline hardware uses 1.5 mm thick powder-coated steel rated for 25000 operation cycles, headrest adjustments use 1.2 mm thick steel ratchet hardware, and the center console is constructed from black laminated engineered wood. The entire unit has a net weight of 165 kg, and comes with a 2-year warranty. Functional features include side-lever activated manual recline that locks at three positions up to a 160-degree full recline, individual ratchet headrests that adjust to four height positions, and a 20 L enclosed storage compartment under the console’s flip-up padded lid, which also holds two 85 mm recessed cup holders and a flat padded surface for small items. The fixed chaise delivers full leg support for end-position users, and quick-release removable backrests simplify entry through narrow doorways. Seating up to five people, the sofa is suited for large residential living rooms of 30 sqm or larger, home media and theater rooms, open-plan lounge spaces where it defines dedicated seating zones, households with 6 members, contemporary modern interiors, and casual relaxation spaces. For procurement, note that each set ships in two cartons, requires 40 minutes of on-site assembly, and measures 3300 x 2460 x 1000 mm when fully assembled, requiring adequate clearance for placement and delivery access.

Gray L-Shaped Manual Reclining Sectional Sofa with Chaise and Center Console Specifications
