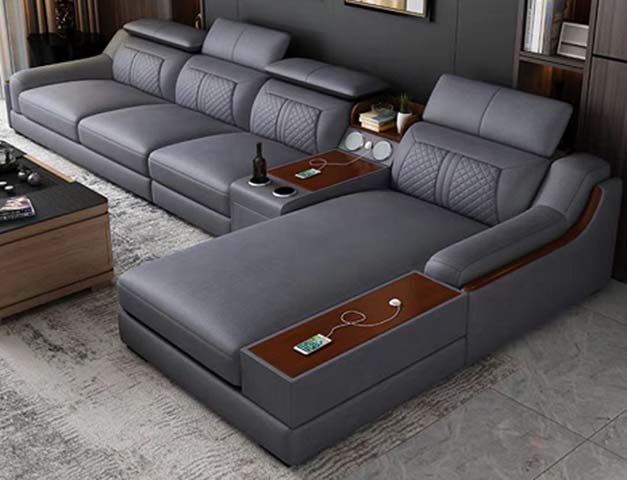

Right-Chaise L-Shaped Multifunctional Sectional Sofa with Integrated Media Consoles, USB Charging and Cup Holders (model LSEC-MEDIA-3600-GRY) is listed under Home PU‑Coated Fabric Sofa. Dimensions: 3600 × 2200 × 930 mm. Materials: Grey 0.8mm thick performance tech fabric, water-repellent, stain-resistant finish. Load capacity: 550 kg. Product Features: Modern,style,L-shaped,fixed,configuration,upholstered,seating,integrated,multimedia,consoles. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Youwei | Model | LSEC-MEDIA-3600-GRY |
| Overall dimensions (W × D × H) | 3600 × 2200 × 930 mm | Seat height | 490 mm |
| Seat depth (straight section) | 540 mm | Chaise lounge depth | 1200 mm |
| Armrest height | 570 mm | Adjustable headrest travel | 120 mm |
| Central console dimensions | 700 x 300 x 450 mm | Chaise end console dimensions | 600 x 250 x 450 mm |
| Armrest width | 180 mm | Cup holder diameter | 90 mm |
| Seat cushion thickness | 180 mm | Backrest cushion thickness | 150 mm |
| Floor clearance under sofa base | 20 mm | Carcass Panel Thickness | 25 mm |
| Back Panel Thickness | 9 mm | Door / Drawer Front Thickness | 22 mm |
| Seating capacity | 4 people | Total static load capacity | 550 kg |
| Seat foam density | 45 kg/m³ | Foam rebound rate | 60 % |
| Upholstery Martindale abrasion resistance | 100000 cycles | Net product weight | 152 kg |
| Integrated speaker rated power | 10 W per channel | USB charging output | 2.4 A per port |
| Shelf Distributed Load | 30 kg/shelf | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Upholstery fabric | Grey 0.8mm thick performance tech fabric, water-repellent, stain-resistant finish | Internal frame | ENF-grade solid wood and multi-layer plywood, 30mm thick structural members, metal reinforced joints |
| Seat support system | Sinuous 3.2mm diameter steel springs with 50mm elastic webbing, evenly spaced | Seat cushion filling | High-resilience polyurethane foam wrapped in 20mm soft polyester batting |
| Backrest cushion filling | High-density foam with quilted diamond-stitched outer cover, shaped lumbar support | Headrest filling | Molded high-density foam with soft polyester wrap, adjustable hinge hardware |
| Console work surfaces | Walnut veneer laminated MDF, scratch-resistant matte top coat | Armrest trim | Solid walnut accent strips along padded curved armrests |
| Sofa base plinth | Upholstery-covered engineered wood base, floor-protective non-slip pads | Hardware components | Powder-coated steel hinges, plastic cup holder inserts, rubber cable management grommets |
| Seam construction | Reinforced polyester stitching, 30mm seam pitch for all upholstery seams | Edge Band Thickness | 2 mm |
| Adjustable headrests | 4 multi-position padded headrests, 5 tilt angle settings, lock at each position, maximum 30-degree backward tilt | Central media console | Recessed unit with 2 integrated Bluetooth speakers, 2 cup holders, 2 USB-A charging ports, open rear storage shelf |
| Chaise end side console | Built-in unit with 1 USB charging port, flat wood top surface for device placement, hidden under-lift storage compartment | Integrated cable management | Routed internal channels for charging and speaker cables, no exposed loose wiring on seat surfaces |
| Storage compartments | 2 hidden lift-top storage bays under console surfaces, 1 open rear storage shelf for small items | Fixed corner configuration | Non-modular L-shape with right-hand chaise, pre-aligned sectional joints for stable assembly |
| Multimedia connectivity | Built-in Bluetooth 5.0 pairing for audio playback to integrated console speakers | Cup holder function | 3 recessed non-slip cup holders with 90mm inner diameter, fit standard beverage bottles and cups |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | Reference Packaging Volume | 0.65 m³/set |
| Large residential living room | Suitable for open-plan living areas 30 sqm or larger, provides 4-person lounge seating | Home theater media room | Ideal for dedicated media spaces with integrated speakers, charging and cup holders for long viewing sessions |
| Open-plan loft apartment | Fits contemporary urban loft layouts with modern grey finish and wood accent trim | Family casual gathering space | Supports daily family use and small group entertaining with durable fabric and high load capacity |
| Recommended matching furniture | Pair with 1200mm wide rectangular coffee table, low-profile media console under wall-mounted TV | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 2200 × 930 mm | |
|---|---|---|
| Seat height | 490 mm | |
| Seat depth (straight section) | 540 mm | |
| Chaise lounge depth | 1200 mm | |
| Armrest height | 570 mm | |
| Adjustable headrest travel | 120 mm | |
| Central console dimensions | 700 x 300 x 450 mm | |
| Chaise end console dimensions | 600 x 250 x 450 mm | |
| Armrest width | 180 mm | |
| Cup holder diameter | 90 mm | |
| Seat cushion thickness | 180 mm | |
| Backrest cushion thickness | 150 mm | |
| Floor clearance under sofa base | 20 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 people | |
|---|---|---|
| Total static load capacity | 550 kg | |
| Seat foam density | 45 kg/m³ | |
| Foam rebound rate | 60 % | |
| Upholstery Martindale abrasion resistance | 100000 cycles | |
| Net product weight | 152 kg | |
| Integrated speaker rated power | 10 W per channel | |
| USB charging output | 2.4 A per port | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | Grey 0.8mm thick performance tech fabric, water-repellent, stain-resistant finish | |
|---|---|---|
| Internal frame | ENF-grade solid wood and multi-layer plywood, 30mm thick structural members, metal reinforced joints | |
| Seat support system | Sinuous 3.2mm diameter steel springs with 50mm elastic webbing, evenly spaced | |
| Seat cushion filling | High-resilience polyurethane foam wrapped in 20mm soft polyester batting | |
| Backrest cushion filling | High-density foam with quilted diamond-stitched outer cover, shaped lumbar support | |
| Headrest filling | Molded high-density foam with soft polyester wrap, adjustable hinge hardware | |
| Console work surfaces | Walnut veneer laminated MDF, scratch-resistant matte top coat | |
| Armrest trim | Solid walnut accent strips along padded curved armrests | |
| Sofa base plinth | Upholstery-covered engineered wood base, floor-protective non-slip pads | |
| Hardware components | Powder-coated steel hinges, plastic cup holder inserts, rubber cable management grommets | |
| Seam construction | Reinforced polyester stitching, 30mm seam pitch for all upholstery seams | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Adjustable headrests | 4 multi-position padded headrests, 5 tilt angle settings, lock at each position, maximum 30-degree backward tilt | |
|---|---|---|
| Central media console | Recessed unit with 2 integrated Bluetooth speakers, 2 cup holders, 2 USB-A charging ports, open rear storage shelf | |
| Chaise end side console | Built-in unit with 1 USB charging port, flat wood top surface for device placement, hidden under-lift storage compartment | |
| Integrated cable management | Routed internal channels for charging and speaker cables, no exposed loose wiring on seat surfaces | |
| Storage compartments | 2 hidden lift-top storage bays under console surfaces, 1 open rear storage shelf for small items | |
| Fixed corner configuration | Non-modular L-shape with right-hand chaise, pre-aligned sectional joints for stable assembly | |
| Multimedia connectivity | Built-in Bluetooth 5.0 pairing for audio playback to integrated console speakers | |
| Cup holder function | 3 recessed non-slip cup holders with 90mm inner diameter, fit standard beverage bottles and cups | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Large residential living room | Suitable for open-plan living areas 30 sqm or larger, provides 4-person lounge seating | |
|---|---|---|
| Home theater media room | Ideal for dedicated media spaces with integrated speakers, charging and cup holders for long viewing sessions | |
| Open-plan loft apartment | Fits contemporary urban loft layouts with modern grey finish and wood accent trim | |
| Family casual gathering space | Supports daily family use and small group entertaining with durable fabric and high load capacity | |
| Recommended matching furniture | Pair with 1200mm wide rectangular coffee table, low-profile media console under wall-mounted TV |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Applicable for domestic furniture seating strength, durability and stability requirements | |
|---|---|---|
| EN 1021-1:2014 | Applicable for upholstered furniture ignitability resistance to smouldering cigarettes |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden furniture used in sofa frames and consoles | |
|---|---|---|
| GB 20400-2006 | Applicable for leather/fabric upholstery limited harmful substance testing | |
| GB/T 19524.1-2004 | Applicable for upholstered sofa seating durability and structural strength testing | |
| GB/T 18885-2020 | Applicable for technical textile upholstery functional performance requirements |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture used in sofa frames and consoles; 2. GB 20400-2006: Applicable for leather/fabric upholstery limited harmful substance testing; 3. GB/T 19524.1-2004: Applicable for upholstered sofa seating durability and structural strength testing; 4. GB/T 18885-2020: Applicable for technical textile upholstery functional performance requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
