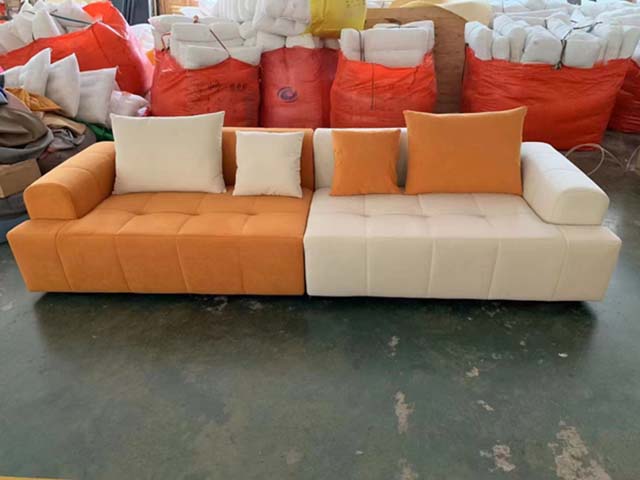

Product supplierTwo-Tone Orange Cream Grid-Tufted 4-Seat Modular Sectional Sofa, Woven chenille performance fabric, 400gsm weight
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 950 × 750 mm | |
|---|---|---|
| Seat height from floor | 430 mm | |
| Seat depth (usable) | 640 mm | |
| Backrest height above seat | 380 mm | |
| Armrest width | 220 mm | |
| Armrest height above seat | 180 mm | |
| Base platform height | 120 mm | |
| Cushion thickness (seat) | 280 mm | |
| Cushion thickness (back) | 220 mm | |
| Throw pillow size (large) | 600 x 600 mm | |
| Throw pillow size (small) | 450 x 450 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 522 kg | |
|---|---|---|
| Per-seat static weight capacity | 132 kg | |
| Product net weight | 118 kg | |
| Seat foam density | 45 kg/m³ | |
| Back cushion fill density | 30 kg/m³ | |
| Foam rebound rate | 60% | |
| Fabric abrasion resistance | 30000 Martindale cycles | |
| Frame warranty period | 3 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Woven chenille performance fabric, 400gsm weight | |
|---|---|---|
| Internal load-bearing frame | Kiln-dried solid eucalyptus wood and 15mm plywood | |
| Seat support system | 3.8mm gauge sinuous steel springs, 80mm spacing | |
| Seat cushion fill | Multi-layer high-density polyurethane foam, fiber wrap | |
| Back cushion fill | High-density foam core with polyester fiber batting | |
| Modular connection hardware | Powder-coated steel under-seat latch connectors | |
| Base platform | Engineered wood frame wrapped in matching upholstery | |
| Stitching detail | High-strength polyester thread, 8 stitches per 50mm pitch | |
| Throw pillow fill | 100% virgin polyester fiber fill | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular reconfiguration | Under-seat steel latches connect individual seating modules | |
|---|---|---|
| Grid tufted surface | Precision stitched grid seams prevent cushion fill shift | |
| Rounded padded armrests | Wide integrated armrests support forearm resting for end seats | |
| Low-profile platform base | No visible legs creates a grounded contemporary silhouette | |
| Fixed cushion design | Attached seat and back cushions prevent sliding during use | |
| Two-tone modular color split | Left two-seat module orange, right two-seat module cream | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room primary seating | Accommodates 4 adults in modern minimalist or contemporary home spaces | |
|---|---|---|
| Apartment and loft lounge areas | Modular knock-down packaging fits through narrow entryways and tight stairwells | |
| Small office reception and lounge zones | Two-tone color palette suits creative workplace and casual waiting areas | |
| Short-term rental and staging installations | On-trend color block design creates high visual appeal for property photography | |
| Showroom and design studio display | Distinctive grid tufting and two-tone finish works as a statement seating piece |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Domestic furniture seating strength | EN 12520:2015 | |
|---|---|---|
| Upholstered furniture flammability | EN 1021:2014 | |
| Furniture hardware performance | EN 15338:2007 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Lounge seating structural durability | ANSI/BIFMA X2020 | |
|---|---|---|
| Seating stability testing | ANSI/BIFMA X2017Section 6 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Upholstered furniture safety | GB 20400 | |
|---|---|---|
| Furniture mechanical performance | GB/T 3324 | |
| Soft furniture flammability | GB 17927 |
Standardized tender description text
This product must meet the following technical requirements: 1. Upholstered furniture safety: GB 20400; 2. Furniture mechanical performance: GB/T 3324; 3. Soft furniture flammability: GB 17927; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
