Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 760 x 780 x 790 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight | 14 kg | |
|---|---|---|
| Recommended occupant load | 130 kg | |
| Seat static proof load | 180 kg | |
| Backrest static pull test target | 90 kg | |
| Arm downward static load target | 70 kg per arm | |
| Seating capacity | 1 person | |
| Foam indentation hardness | 38 kg/m3 compression grade 45 N | |
| Seat foam density | 38 kg/m3 | |
| Back foam density | 28 kg/m3 | |
| Fabric abrasion acceptance | 30,000 Martindale cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

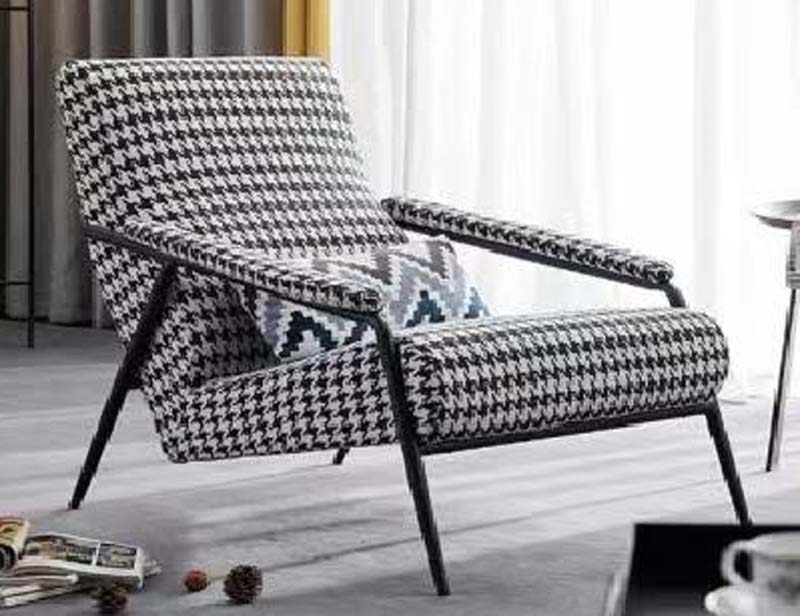

| Upholstery fabric | Black-and-white houndstooth woven fabric with a polyester-blend visual texture | |
|---|---|---|
| Seat cushion | Padded polyurethane core wrapped in houndstooth upholstery | |
| Backrest panel | Padded upholstered panel attached to the perimeter steel support frame | |
| Arm pads | Houndstooth-covered padded rails over the horizontal frame tubes | |
| Structural frame | Black round tubular steel frame forming arm rails, front supports and rear supports | |
| Leg finish | Black matte powder coating on exposed steel tubing | |
| Internal support panel | 12 mm engineered-wood or equivalent seat support board | |
| Back reinforcement | 20 mm steel tube or shaped steel rail concealed inside the upholstered back | |
| Feet | Non-marking polymer or rubber caps at the four floor contact points | |
| Joining hardware | Welded steel joints with bolted upholstered body mounting points | |
| Seam construction | Tailored edge seams at cushion and back borders | |
| Decorative throw pillow | Separately shown black, white and grey geometric-pattern cushion |
Adjustment / rotation / tilt / mobility / storage features
| Seating posture | Fixed lounge posture with a 108-degree reclined back and 430 mm seat height | |
|---|---|---|
| Back support | Continuous padded back panel supports the thoracic and lumbar area without tilt adjustment | |
| Arm support | Two continuous padded armrests at 610 mm floor height support forearm resting | |
| Frame stability | Four outward-splayed tubular legs provide a 650 mm front footprint and fixed floor support | |
| Floor protection | Four polymer or rubber end caps reduce scratching on hard floors | |
| Cushion retention | Fixed upholstered seat and back construction, with no removable cushion mechanism visible | |
| Cleaning access | Smooth woven exterior and open under-seat space allow surface vacuuming and spot cleaning | |
| Mobility | Non-swivel, non-reclining, stationary chair without casters | |
| Assembly form | Tool-based leg or frame attachment with bolted frame joints anticipated | |
| Backrest recline angle | 108 degrees | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
| Inner protection | Polybag, four-edge EPE foam and double-wall corrugated carton | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Living room reading corner | Single lounge posture and padded arms suit relaxed reading beside a window | |
|---|---|---|
| Bedroom dressing or relaxation area | Compact 760 mm width fits a bedroom corner without requiring a reclining mechanism | |
| Hotel guest room | Houndstooth upholstery provides a decorative accent chair beside a desk or window | |
| Apartment lounge | One-person seating works in small apartments and open-plan living spaces | |
| Reception waiting area | Suitable for low-density hospitality waiting zones with 130 kg occupant-load acceptance target | |
| Boutique cafe seating | Padded arms and wipeable woven exterior work in style-focused cafe corners | |
| Studio or showroom display | High-contrast pattern creates a feature piece for furniture displays and photo sets | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
