Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 760 x 790 x 820 mm | |
|---|---|---|
| Seat width | 610 mm | |
| Seat depth | 580 mm | |
| Seat height | 480 mm | |
| Back cushion height | 520 mm | |
| Back cushion thickness | 160 mm | |
| Seat cushion thickness | 160 mm | |
| Arm height above floor | 610 mm | |
| Arm width | 90 mm | |
| Front leg height | 330 mm | |
| Side panel size | 420 x 180 mm | |
| Knee opening under seat | 330 mm high x 560 mm wide | |
| Footprint | 690 x 720 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm |
Net weight / load capacity / users / durability
| Net weight | 16.8 kg | |
|---|---|---|
| Recommended user weight | 150 kg | |
| Static seat verification load | 300 kg | |
| Back-rest horizontal verification load | 115 kgf | |
| Seating capacity | 1 person | |
| Cushion foam density | 30 kg/m3 | |
| Foam rebound value | 40% | |
| Fabric abrasion acceptance | 30,000 Martindale cycles | |
| Color count | 1 displayed color | |
| Warranty period | 60 days |
Core acceptance fields · Panels / hardware / frame / upholstery

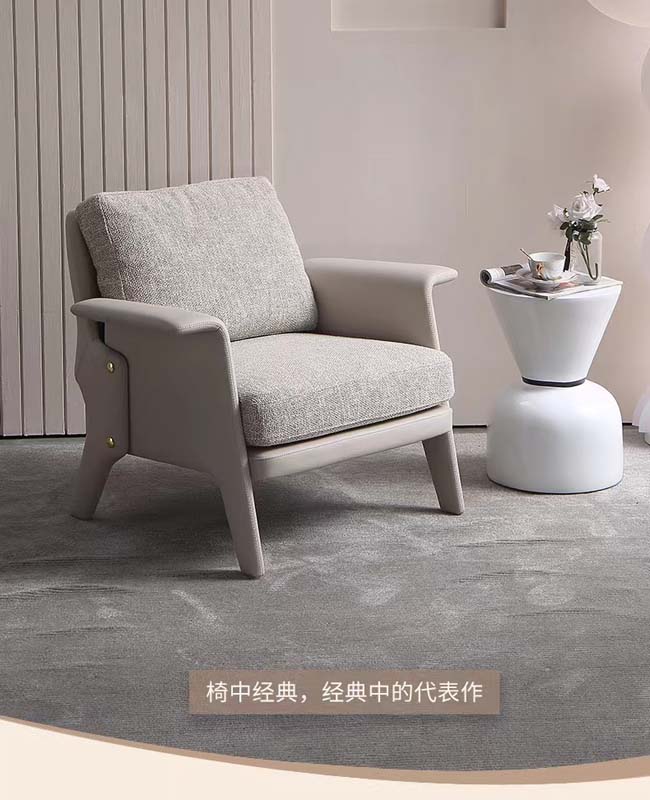

| Seat cushion upholstery | Light gray woven textured fabric with plush looped surface | |
|---|---|---|
| Back cushion upholstery | Matching light gray woven fabric over thick padded cushion | |
| Arm and outer frame | Smooth taupe fabric or leather-look upholstery over rigid frame | |
| Seat support panel | Rigid plywood or composite board platform under the cushion | |
| Internal load frame | Hardwood or plywood structural rail with corner blocks | |
| Support legs | Four angled taupe-finished rigid legs, wood or wood-composite appearance | |
| Side fasteners | Two brass-colored circular metal fasteners per visible side panel | |
| Cushion fill | Polyurethane foam core with soft fiber or fabric wrap | |
| Edge tailoring | Sewn fabric borders on cushion faces and padded arms | |
| Floor contact pads | Protective pads presumed at four leg bases | |
| Hardware | Threaded inserts or bolted side-plate connections for leg and arm assembly | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
| Back support | Fixed upright back cushion provides continuous lumbar and upper-back support with no recline mechanism | |
|---|---|---|
| Seat function | Fixed thick cushion platform supports relaxed seating and uses a non-swivel four-leg base | |
| Arm support | Integrated padded arms provide forearm support at 610 mm from the floor | |
| Cushion removal | Seat and back cushions appear separable for fabric maintenance, while attachment method is not visible | |
| Side-frame fastening | Two round brass-colored fasteners secure the visible side panel and reinforce the visual design | |
| Leg stance | Four outward-angled legs create a 690 x 720 mm floor footprint and resist tipping during normal entry and exit | |
| Mobility | Stationary chair intended for repositioning by lifting rather than rolling | |
| Assembly method | Legs, side panels and back components likely bolt together during household assembly | |
| Floor protection | Four non-marking pads should be fitted under each leg for hard-floor use | |
| Posture angle | Fixed back angle is set for upright lounge seating at 100 degrees from horizontal | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Living room reading corner | Pair with a small side table and rug for reading, tea service or relaxed conversation | |
|---|---|---|
| Bedroom lounge area | Place near a window or bed end for dressing and quiet seating | |
| Hotel guest room | Use as a compact lounge seat where a neutral gray, non-reclining chair is required | |
| Reception lounge | Specify in low-density breakout or welcome areas with light-contract fabric verification | |
| Balcony or conservatory | Suitable for covered indoor-outdoor relaxation away from direct rain and prolonged sunlight | |
| Senior living common room | Provides forearm support and a 480 mm seat height for easier sit-to-stand movement | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Stability applicability | EN 1022 | |
|---|---|---|
| Safety and strength applicability | EN 16139 | |
| Upholstery flammability applicability | EN 1021and EN 1021 |
US and Canada office-furniture standards
| Seating structural applicability | ANSI/BIFMA X5.4 | |
|---|---|---|
| Back and leg strength applicability | ANSI/BIFMA X5.1 test methods 4 and 5 | |
| Caster omission note | ANSI/BIFMA X5.1 caster tests do not apply |
Standards applicable to China-market projects
| Strength and durability applicability | GB/T 10357.6 | |
|---|---|---|
| Formaldehyde emission applicability | GB 18580 | |
| Upholstered furniture safety applicability | GB/T 33243 |
This product must meet the following technical requirements: 1. Strength and durability applicability: GB/T 10357.6; 2. Formaldehyde emission applicability: GB 18580; 3. Upholstered furniture safety applicability: GB/T 33243; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
