PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	720 × 760 × 790 mm
Overall chair dimensions	720 x 760 x 790 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Chair net weight	18 kg
Recommended user weight	130 kg
Ottoman top load	80 kg
Seating capacity	1 person
Seat foam density	35 kg/m3
Back foam density	28 kg/m3
Foam compression set acceptance	8 percent after 22 hours at 70 degrees C
Fabric abrasion acceptance	30,000 Martindale cycles
Frame cyclic loading acceptance	100,000 seat-back cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Chair upholstery	Black-and-white houndstooth woven fabric over padded seat and back
Ottoman upholstery	Matching black-and-white houndstooth woven fabric with wrapped cushion edges
Seat cushion	High-resilience polyurethane foam with fabric-tailored cover
Backrest cushion	Padded polyurethane panel with horizontal seam and fabric-covered face
Arm pads	Smooth dark brown wood or wood-composite pads with rounded ends
Arm supports	Vertical gold-toned metal stems linked to black side frames
Chair frame and legs	Black powder-coated steel tube with sled-style side rails and four floor contacts
Ottoman legs	Four black powder-coated metal legs, slightly splayed at the corners
Internal support board	12 mm engineered-wood load board under the seat cushion
Floor contact pads	Injection-molded polyethylene or nylon glides with felt option
Seam construction	Tailored fabric seams with 8 stitches per 25 mm target
Surface finish on metal	Matte black powder coating over steel tube

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating posture	Upright relaxed lounge posture with 100-degree seat-to-back angle
Footrest function	Separate ottoman supports leg elevation and can be repositioned independently
Arm support	Fixed padded arms provide 190 mm elbow support without height or swing adjustment
Back support	Continuous padded backrest with a horizontal seam divides shoulder and lumbar zones
Frame stability	Sled-style side rails tie front and rear legs to resist lateral rocking
Floor protection	Four chair glides and four ottoman glides isolate metal from wood or tile flooring
Mobility	Lightweight chair and unfastened ottoman allow two-person repositioning; no casters are fitted
Upholstery maintenance	Removable or sewn fabric cover should be specified before order; visible tailoring allows seam-level cleaning access
Color and upholstery option	One visible houndstooth finish; procurement should request fabric SKU and color batch control
Use limitation	Designed for dry indoor lounge areas, not for outdoor exposure or wet commercial environments
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room reading corner	Place with the ottoman beside a sofa for reading, conversation or media relaxation
Bedroom dressing or relaxation area	Use near a window or wardrobe as a lightweight seating and footrest pair
Hotel guest room	Specify for boutique rooms requiring mid-century styling and independent foot support
Executive lounge or reception breakout	Use in low-density breakout areas with fabric abrasion and frame-cycle validation
Studio apartment seating	The separate ottoman provides leg support without the footprint of a chaise sofa
Pairing with round side table	Position one side table within 300 mm of the arm for drinks, books or task lighting
Floor compatibility	Recommended over rugs, engineered wood, tile or hardwood with non-marking glides
Interior style	Black-and-white pattern, warm wood pads and black metal suit mid-century modern and contemporary rooms

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Seating strength recommendation	EN 16139 applies to strength, durability and safety requirements for non-domestic seating
Domestic furniture safety recommendation	EN 12521 applies to strength and durability for domestic seating
Upholstered furniture flammability recommendation	EN 1021applies to cigarette ignition resistance of upholstered seating
Surface coating recommendation	EN 16121 applies if non-domestic-grade coated metal surfaces require durability verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge seating structural recommendation	ANSI/BIFMA X5.4 applies to lounge seating strength, stability and durability tests
Static load test recommendation	ANSI/BIFMA X5.4 static load procedures can verify the 130 kg user-weight target
Durability test recommendation	ANSI/BIFMA X5.4 cyclic seat and back tests support a 100,000-cycle validation target
Stability recommendation	ANSI/BIFMA X5.4 forward and rear stability procedures are relevant to the sled-frame chair

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture safety recommendation	GB/T 10357.2 applies to furniture mechanical property tests for chairs and stools
Upholstered furniture durability recommendation	GB/T 28202 applies to general quality requirements for upholstered furniture
Foam safety recommendation	GB/T 10802 applies to flexible polyurethane foam for general furniture use
Wood-composite emission recommendation	GB 18580 applies to formaldehyde emission limits for engineered-wood components
Textile safety recommendation	GB 18401 applies to safety technical requirements for textile products

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture safety recommendation: GB/T 10357.2 applies to furniture mechanical property tests for chairs and stools;
2. Upholstered furniture durability recommendation: GB/T 28202 applies to general quality requirements for upholstered furniture;
3. Foam safety recommendation: GB/T 10802 applies to flexible polyurethane foam for general furniture use;
4. Wood-composite emission recommendation: GB 18580 applies to formaldehyde emission limits for engineered-wood components;
5. Textile safety recommendation: GB 18401 applies to safety technical requirements for textile products;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LC-HND-ARM-OTT-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LC-HND-ARM-OTT-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LC-HND-ARM-OTT-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

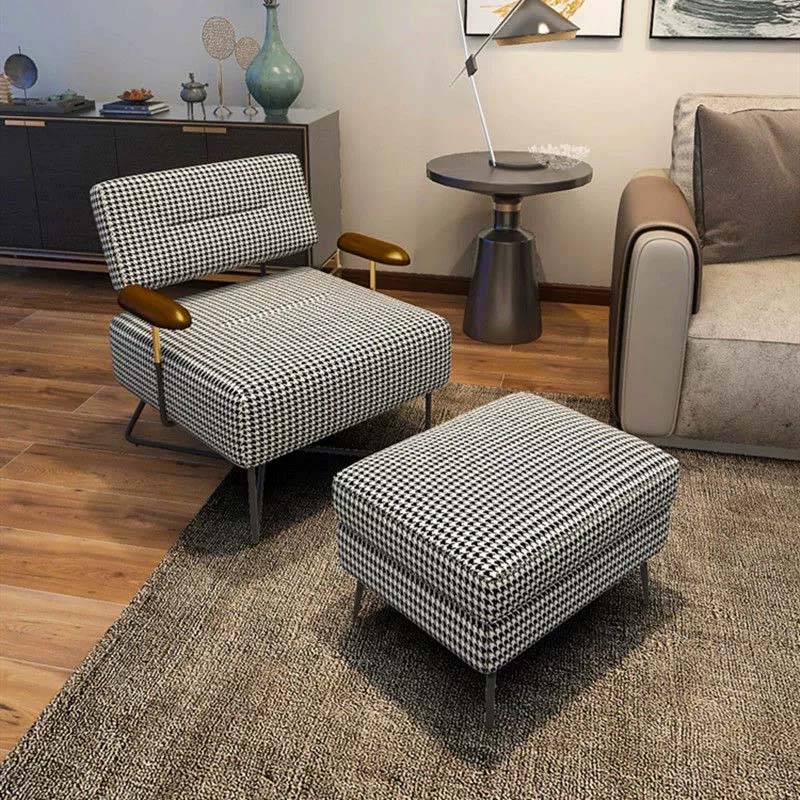

The Houndstooth Upholstered Lounge Chair with Matching Ottoman is a one-person indoor lounge seating set with a clear modern, mid-century character. The chair presents black-and-white houndstooth woven fabric across the padded seat and back, balanced by smooth dark brown wood or wood-composite arm pads with rounded ends. Vertical gold-toned metal stems connect the arms to black side frames, while the black powder-coated steel tube base uses sled-style side rails and four floor contacts. The separate ottoman follows the same upholstery theme, with matching houndstooth fabric, wrapped cushion edges, and four slightly splayed black powder-coated metal legs. The overall chair measures 720 mm wide, 760 mm deep, and 790 mm high, with a 540 mm clear width between the armrests. Its 90 mm seat cushion uses high-resilience polyurethane foam at 35 kg/m3, covered by a tailored fabric cover, while the 70 mm padded back panel uses 28 kg/m3 polyurethane foam and a horizontal seam that separates shoulder and lumbar zones. The lumbar support zone is 240 mm high. A 12 mm engineered-wood load board sits beneath the seat cushion, and fixed arms provide 190 mm of elbow support without adjustment. The 100-degree seat-to-back angle supports an upright relaxed lounge posture, and the independent ottoman allows flexible leg elevation. Sled-style rails link the front and rear legs to resist lateral rocking, and glides on both the chair and ottoman separate the metal feet from wood or tile flooring. The chair weighs 18 kg, is recommended for users up to 130 kg, and the ottoman top is rated for an 80 kg load. This set is suited to a living room reading corner, bedroom relaxation or dressing area, boutique hotel guest room, executive lounge, reception breakout space, or studio apartment. It offers the benefit of foot support without the larger footprint of a chaise sofa, and can be placed near a round side table for drinks, books, or task lighting. Because the chair and ottoman are not fastened together and have no casters, repositioning is best handled by two people. Procurement teams should note that the unbranded model LC-HND-ARM-OTT-01 ships as one set in two cartons, with packaged gross weight of 23 kg and reference assembly time of 40 minutes. Carton dimensions are 850 by 420 by 720 mm, with carton volume of 0.26 m3 per set; an indicative 20GP container loads 135 sets at 85 percent space utilization. For high-use lounge or breakout installations, fabric abrasion and frame-cycle validation should be confirmed before specification. Foam acceptance allows 8 percent compression set after 22 hours at 70 degrees Celsius.

Houndstooth Upholstered Lounge Chair with Matching Ottoman Specifications
