Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 820 x 860 x 780 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight | 32 kg | |
|---|---|---|
| Recommended user weight capacity | 130 kg | |
| Seat cushion foam density | 35 kg/m3 | |
| Back cushion foam density | 28 kg/m3 | |
| Foam compression set acceptance | 5 percent | |
| Fabric abrasion acceptance | 30000 Martindale cycles | |
| Static seat load acceptance target | 160 kg | |
| Swivel mechanism cycle target | 50000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery

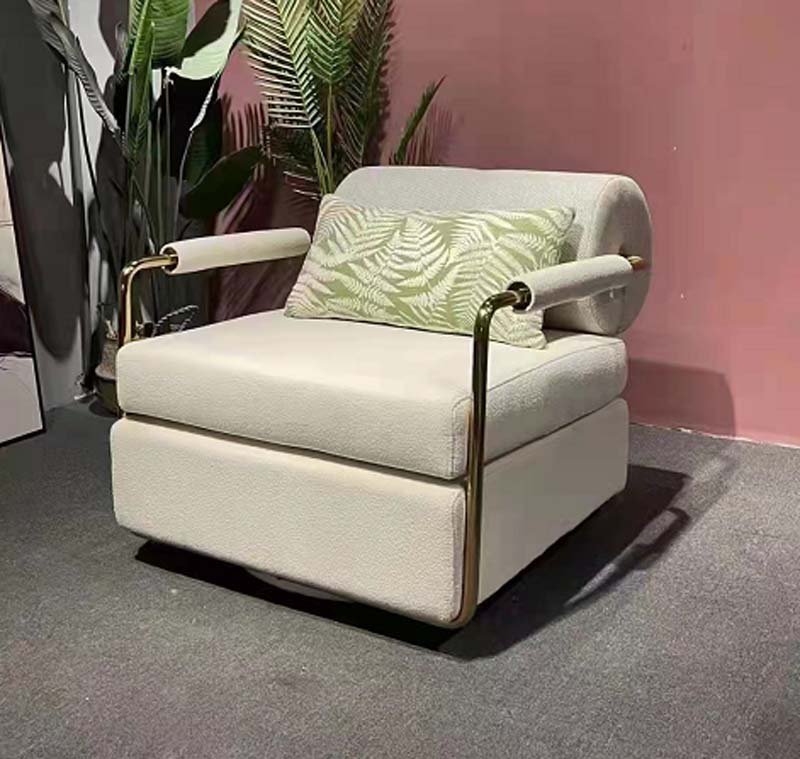

| Outer upholstery | Ivory woven boucle-style fabric over padded seat, back and base | |
|---|---|---|
| Seat cushion core | High-resilience polyurethane foam, target density 35 kg/m3 | |
| Back cushion core | Soft polyurethane foam with integrated padding, target density 28 kg/m3 | |
| Arm pads | Foam-filled fabric sleeves over round metal tubes | |
| Support frame | 25 mm round tubular steel with polished gold-tone finish | |
| Frame protective shoes | Polymer or felt contact pads at floor-facing frame ends | |
| Swivel mechanism | Concealed steel turntable or circular swivel plate | |
| Internal support board | 18 mm engineered board or plywood deck under cushion | |
| Lumbar pillow fabric | Light green woven fabric with pale fern-leaf pattern | |
| Pillow filling | Fiber-fill or down-alternative cushion insert | |
| Sewing detail | Matching-thread stitched seam around cushion face and front edge | |
| Metal surface treatment | Mirror-like gold plating or powder-coated metallic finish |
Adjustment / rotation / tilt / mobility / storage features
| Seating function | Single-person lounge seat with 660 mm usable width and 430 mm seat height | |
|---|---|---|
| Swivel function | 360-degree horizontal rotation on a concealed circular base | |
| Arm support | Upholstered cylindrical pads at 620 mm floor height provide continuous forearm support | |
| Back support | Rounded enclosed back with 420 mm height supports the lumbar and lower thoracic region | |
| Lumbar cushioning | Removable 520 x 280 mm fern-pattern pillow adjusts across the seat back | |
| Cushion arrangement | Thick separate seat cushion rests on an upholstered plinth and may be lifted for cleaning | |
| Floor protection | Low enclosed base keeps the metal frame from protruding outward and supports pad installation | |
| Cleaning access | Smooth external upholstery panels and removable pillow permit vacuuming and spot maintenance | |
| Structural restraint | The chair is not designed as a recliner, rocking chair or height-adjustable seat | |
| Swivel base diameter | 600 mm | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Hotel lobby seating | Use in pairs or small clusters for guest waiting and relaxed conversation | |
|---|---|---|
| Office reception area | Place beside low tables for visitors waiting outside meeting rooms | |
| Retail showroom | Display in fashion, beauty or lifestyle showrooms as an accent seat | |
| Residential living room | Use as a single reading chair in a bedroom corner or living area | |
| Boutique cafe lounge | Install in low-turnover cafe or lounge zones rather than high-volume dining areas | |
| Photo and styling set | Use as a prop in interior design, product photography or exhibition displays | |
| Senior living common room | Suitable only with verified firm foam and tested stability for assisted users | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
| Upholstered furniture safety recommendation | EN 1021for cigarette ignition resistance of upholstered furniture | |
|---|---|---|
| Seat dimension recommendation | EN 1335applies to office seating only and is not the primary dimensional basis |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
| Furniture strength recommendation | GB/T 10357.6 for seat furniture mechanical testing | |
|---|---|---|
| Upholstered furniture safety recommendation | GB 17927 for ignitability assessment of upholstered furniture | |
| Formaldehyde recommendation | GB/T 35607 for limit of formaldehyde emission in furniture green-product evaluation | |
| Fabric colorfastness recommendation | GB/T 3920 for textile color fastness to rubbing |
This product must meet the following technical requirements: 1. Furniture strength recommendation: GB/T 10357.6 for seat furniture mechanical testing; 2. Upholstered furniture safety recommendation: GB 17927 for ignitability assessment of upholstered furniture; 3. Formaldehyde recommendation: GB/T 35607 for limit of formaldehyde emission in furniture green-product evaluation; 4. Fabric colorfastness recommendation: GB/T 3920 for textile color fastness to rubbing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
