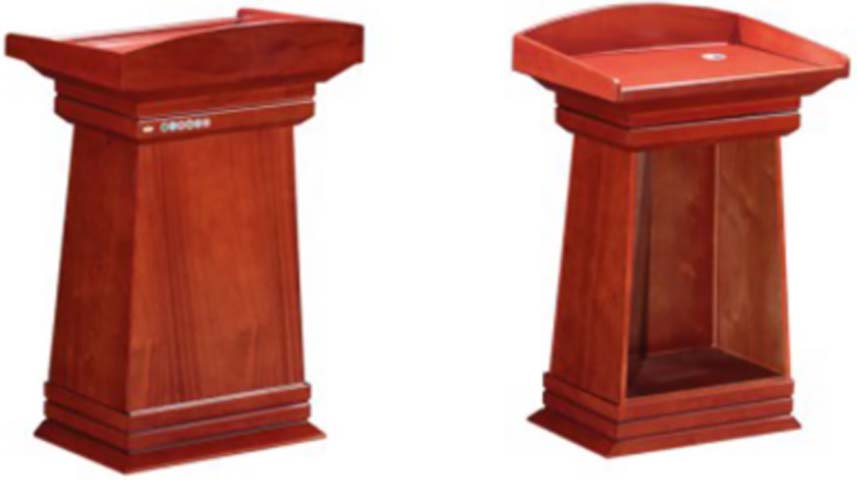

Traditional Freestanding Wood Veneer Speech Lectern with AV Controls and Cable Grommet (model WDL-ST-700) is listed under Judicial Office Furniture, with overall dimensions of 700 × 550 × 1200 mm and main material of MDF. Load capacity: 50 kg. Certifications: Formal,classic,style,freestanding,pedestal,structure,slanted,lipped,reading,surface,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 700 x 550 x 1200 mm | |
|---|---|---|
| Slanted reading surface width | 680 mm | |
| Slanted reading surface depth | 420 mm | |
| Reading surface angle | 20 degrees | |
| Perimeter lip height | 30 mm | |
| Cable grommet diameter | 50 mm | |
| Lower plinth base width | 700 mm | |
| Lower plinth base depth | 550 mm | |
| Internal open storage cavity width | 580 mm | |
| Internal open storage cavity depth | 450 mm | |
| Internal open storage cavity height | 720 mm | |
| Control button diameter | 15 mm | |
| Top trim overhang | 20 mm | |
| Bottom plinth step height | 60 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Top surface static load capacity | 50 kg | |
|---|---|---|
| Unit net weight | 45 kg | |
| Lacquer surface hardness | 2H | |
| Formaldehyde emission level | 0.05 mg/m³ | |
| TVOC emission level | 0.1 mg/m³ | |
| Anti-tip stability load | 80 kg | |
| Finish abrasion resistance | 1000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Core substrate | 18 mm thick E1 grade high density fiberboard | |
|---|---|---|
| Surface veneer | 0.6 mm thick natural red wood veneer | |
| Top coat finish | Water-based matte lacquer, 2H hardness | |
| Cable grommet | Brushed chrome plated ABS plastic | |
| Control panel buttons | ABS plastic with tactile membrane switches | |
| Bottom feet | Non-slip nylon rubber pads |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Reading surface retention | 30 mm raised perimeter lip secures documents and devices against sliding | |
|---|---|---|
| Cable management | 50 mm top grommet routes microphone and AV cables into internal pedestal cavity | |
| Internal open storage | Recessed pedestal cavity provides accessible storage for presentation materials | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Formal conference rooms | Suits executive meeting spaces for speech and presentation delivery by standing presenters | |
|---|---|---|
| Auditoriums and assembly halls | Designed for stage and hall use during events, ceremonies and official addresses |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture strength, durability and safety for non-domestic seating and tables, applicable to structural performance | |
|---|---|---|
| EN 71-3:2019 | Safety of toys migration of certain elements, applicable to finish heavy metal content for public use |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural integrity and finish quality | |
|---|---|---|
| GB 18584-2001 | Indoor decoration materials formaldehyde emission limit for wooden furniture, applicable to substrate emission |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural integrity and finish quality; 2. GB 18584-2001: Indoor decoration materials formaldehyde emission limit for wooden furniture, applicable to substrate emission; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
