PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 76 × 1067 mm
Overall assembled dimensions	3600 x 76 x 1067 mm
Single fixed panel width	660 mm
Central pass-through gate segment width	720 mm
Vertical pilaster post cross-section	76 x 76 mm
Panel thickness	44 mm
Raised panel inset width per fixed section	520 mm
Caster diameter	76 mm
Pass-through gate clear opening height	914 mm
Bottom trim height	76 mm
Top pilaster cap projection	25 mm
Gate segment hinge offset	12 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit weight	68 kg
Static lateral load per panel	45 kg
Caster load rating per wheel	34 kg
Visual privacy coverage height	1067 mm
Gate hinge cycle rating	50000 cycles
Surface abrasion resistance	400 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Panel core	Medium-density fiberboard (MDF) core
Panel facing	0.6 mm mahogany-stained wood veneer
Vertical pilaster posts	Solid hardwood (rubberwood) posts
Gate hardware	Cold-rolled steel butt hinges
Caster components	Polyurethane swivel casters
Fasteners	Zinc-plated steel confirmat screws

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Pass-through gate operation	Hinged double-panel gate swings 180 degrees to open personnel access
Mobility function	Gate segment moves independently on casters, fixed segments rest on level plinth bases
Modular connection system	Interlocking pilaster connectors join individual panel segments
Privacy function	Solid full-height panels block seated line of sight between adjacent workstations

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Traditional executive office workstations	Provides low-height visual privacy between adjacent desks without blocking overhead light
Formal courtroom/council chamber spaces	Matches traditional wood millwork aesthetic for bench rail or area demarcation

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13722:2004	Furniture - Office storage furniture - Strength and durability requirements
EN 15372:2007	Furniture - Office furniture - Safety, strength and durability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Office Panel Systems
ANSI/BIFMA X7.1-2011	Furniture Emissions Standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 4897-2015	Particleboard for furniture use
GB 18584-2001	Indoor decorating and refurbishing materials - Limit of harmful substances

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 4897-2015: Particleboard for furniture use;
3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFP-WD-5PG-C

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFP-WD-5PG-C

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFP-WD-5PG-COpen Export Tool

Quick Actions

Post an RFQ

Product Description

Its visual design draws from traditional millwork conventions, featuring structured raised-panel sections framed by solid rubberwood vertical pilaster posts with a 76 x 76 mm cross-section, finished in a warm reddish-brown mahogany stain that lends a formal, cohesive look to professional environments. The full assembled unit spans 3600 mm in length, stands 1067 mm tall, and measures 76 mm deep, with 44 mm thick fixed panels each holding a 520 mm wide raised inset, positioned alongside a central 720 mm wide hinged pass-through gate segment.
Construction pairs a medium-density fiberboard core with a 0.6 mm mahogany-stained wood veneer facing, supported by 76 mm diameter polyurethane swivel casters on the gate segment, cold-rolled steel butt hinges, and zinc-plated steel confirmat screw fasteners. Fixed panel segments rest on level plinth bases, while interlocking pilaster connectors securely join individual segments during assembly, which takes 40 minutes per set for on-site setup. The 68 kg unit supports a 150 kg uniformly distributed top static load, withstands 45 kg of static lateral load per panel, and features a surface abrasion resistance rated for 400 cycles, with gate hinges tested to 50000 open-close cycles and each caster rated for 34 kg of load.
Functionally, the solid full-height panels block seated line of sight between adjacent workstations to deliver consistent visual privacy without blocking overhead light, while the double-panel pass-through gate swings 180 degrees to allow clear personnel access with a 914 mm clear opening height. The independent caster-mounted gate segment enables easy reconfiguration of access points without moving the entire partition structure.
This partition is well-suited for traditional executive office workstations, where it creates discrete desk boundaries that align with formal interior design schemes, as well as formal courtroom and council chamber spaces, where its classic wood finish matches existing traditional millwork for bench rail installation or defined area demarcation.
Procurement teams should note the unit ships as one set across multiple cartons, with a total packaged gross weight of 180 kg and 1 m³ total packaging volume, requiring coordinated delivery and on-site assembly planning. The caster-mounted design is intended for use on level interior flooring to ensure stable placement and smooth gate operation.

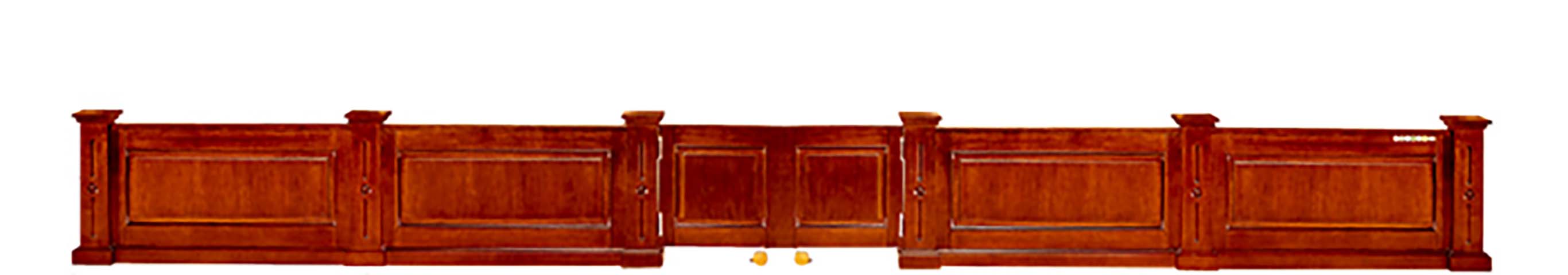

Traditional Raised-Panel Freestanding Movable Wood Office Workstation Partition with Casters and Pass-Through Gate
