Name: Triple-Seat Solid Wood Court Judge Bench with Matching Judicial Chair Set
Brand: HAIBANG
SKU: MGX1PS

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4500 × 950 × 900 mm
Overall bench dimensions	4500 x 950 x 900 mm
Chief judge chair dimensions	680 x 600 x 1700 mm
Associate judge chair dimensions	680 x 600 x 1600 mm
Work surface height above floor	760 mm
Seated knee well height	620 mm
Seated knee well depth	600 mm
Front panel pilaster width	80 mm
Carved judicial emblem diameter	300 mm
Chair backrest height above seat	1100 mm
Chair seat height above floor	450 mm
Chair seat depth	500 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Bench total static load capacity	450 kg
Bench net weight	250 kg
Wood component moisture content	12%
Seat foam density	35 kg/m³
Backrest foam density	30 kg/m³
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability Reference	Acceptance target 30000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Bench frame and trim	Solid hardwood with mortise-and-tenon joinery
Bench panel substrate	E1 grade MDF with 0.6mm natural mahogany wood veneer
Finish coating	7-coat matte polyester paint (4 primer, 3 topcoat)
Chair upholstery	1.5mm thick first-grade top-grain cowhide, black tufted design
Chair internal frame	Solid hardwood mortise-and-tenon frame
Leveling feet	Steel with rubber base, adjustable height

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	1 chief judge position (center) + 2 associate judge positions (sides)
Cable management	Recessed under-desk cable trough with desktop grommets
Front modesty panel	Fully enclosed raised panel facade with carved central judicial emblem
Assembly structure	Knockdown bolted assembly with reinforced connecting brackets

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Standard courtrooms	Formal trial settings requiring official judicial emblem and traditional wood finish
Hearing rooms and arbitration venues	Formal adjudication spaces requiring durable, authoritative judicial furniture

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-2:2009	Office furniture - Office work chairs - Safety requirements
EN 14073-2:2004	Office furniture - Storage furniture - Safety requirements
EN 71-3:2019	Toy safety - Migration of certain elements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Office Chairs - General purpose
ANSI/BIFMA X5.5-2021	Desk Products - Performance and test requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 18581-2020	Indoor decoration and refurbishment solvent-based wood coatings limit of harmful substances
GB 18580-2017	Formaldehyde emission limits for wood-based panels for indoor use
GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 16799-2008	General technical requirements for furniture leather

Standardized tender description text

This product must meet the following technical requirements:
1. GB 18581-2020: Indoor decoration and refurbishment solvent-based wood coatings limit of harmful substances;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels for indoor use;
3. GB/T 3324-2017: General technical requirements for wooden furniture;
4. GB/T 16799-2008: General technical requirements for furniture leather;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · JDB-3S-MHG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · JDB-3S-MHG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · JDB-3S-MHG-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

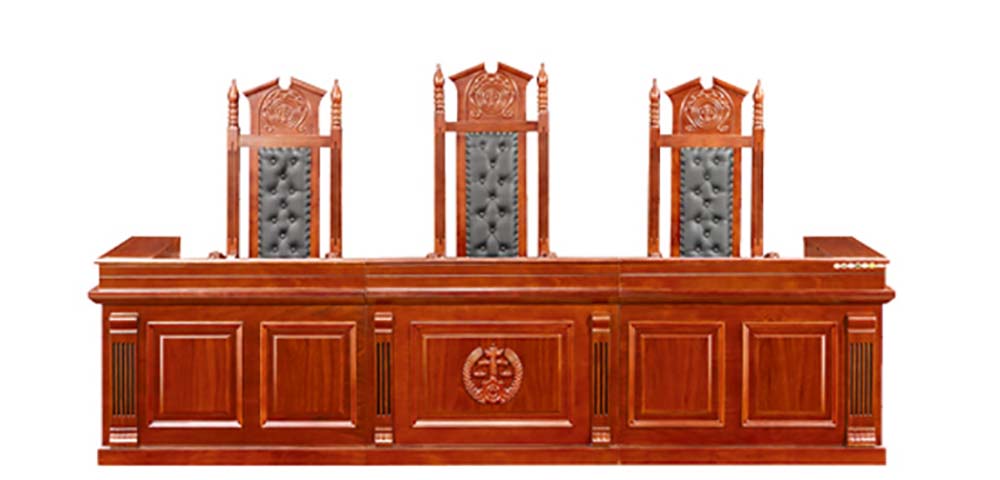

The HAIBANG Triple-Seat Solid Wood Court Judge Bench with Matching Judicial Chair Set, model JDB-3S-MHG-001, presents a formal, authoritative aesthetic aligned with traditional judicial styling, designed to anchor formal adjudication spaces with a stately, cohesive visual presence. The bench features a fully enclosed raised front modesty panel framed by 80mm wide pilasters, centered with a 300mm diameter carved judicial emblem that reinforces official institutional identity. The seating layout positions one elevated chief judge station at the center, flanked by two symmetric associate judge positions, creating a balanced, hierarchical layout appropriate for judicial proceedings. Matching high-back chairs complement the bench, with the chief judge chair sized to reflect its senior position relative to the two associate judge chairs. Construction prioritizes long-term durability and refined finish quality. The bench frame and trim use solid hardwood joined with traditional mortise-and-tenon joinery, while panel substrates are formed from E1 grade MDF faced with 0.6mm natural mahogany wood veneer. All wood surfaces are finished with seven coats of matte polyester paint, including four primer layers and three topcoats, with wood components maintained at a 12% moisture content for stability. Chair frames use matching solid hardwood mortise-and-tenon construction, upholstered in 1.5mm thick first-grade top-grain cowhide with a black tufted design. Seat cushioning uses 35 kg/m³ density foam, with backrest cushioning at 30 kg/m³ density. Adjustable steel leveling feet with rubber bases ensure stable placement on uneven flooring, while the bench supports a total static load of 450 kg, with a net weight of 250 kg. Functional design supports smooth daily court operations. The work surface sits 760mm above the floor, with a 620mm high, 600mm deep knee well to support comfortable seated positioning for extended proceedings. Integrated cable management includes a recessed under-desk cable trough paired with desktop grommets to keep wiring for audio, computing, and documentation equipment organized and out of sight. The set uses a knockdown bolted assembly with reinforced connecting brackets, requiring 40 minutes of assembly time per set, with all components packed across two cartons for transport. This set is purpose-built for standard courtrooms requiring official judicial emblems and traditional wood finishes, as well as hearing rooms and arbitration venues seeking durable, authoritative judicial furniture. Procurement teams should note the 4500 x 950 x 900 mm overall bench footprint to confirm appropriate space allocation, account for on-site assembly requirements, and reference load logistics for 20GP container shipping when planning bulk orders.

Triple-Seat Solid Wood Court Judge Bench with Matching Judicial Chair Set
