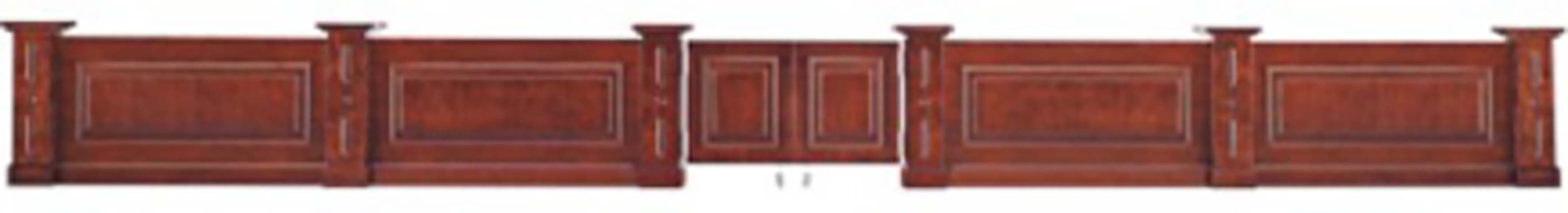

Traditional Raised-Panel Mahogany-Style 5-Bay Modular Reception Counter (model RC-TRD-5BAY-4500) is listed under Judicial Office Furniture, with overall dimensions of 4500 × 650 × 1150 mm and main material of MDF. Load capacity: 200 kg. Certifications: traditional,formal,style,modular,sectional,structure,wood,finish,fixed,freestanding,design. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 4500 x 650 x 1150 mm | |
|---|---|---|
| Seated attendant working surface height | 760 mm | |
| Front privacy panel height from floor | 1100 mm | |
| Central knee opening clear width | 750 mm | |
| Knee opening clear height under worktop | 690 mm | |
| Individual bay width (outer modules) | 800 mm | |
| Individual bay width (central door modules) | 400 mm | |
| Decorative pilaster cross-section | 150 x 150 mm | |
| Work surface thickness | 38 mm | |
| Front panel thickness | 18 mm | |
| Base molding height from floor | 100 mm | |
| Cable grommet diameter | 60 mm | |
| Interior work surface depth | 600 mm | |
| Adjustable leveling glide height adjustment | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total work surface static load capacity | 200 kg | |
|---|---|---|
| Drawer/pedestal slide static load rating (if fitted) | 25 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 100000 cycles | |
| Unit net weight range | 320 kg | |
| Recommended occupant capacity | 1 seated attendant | |
| Standard commercial warranty period | 2 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop material | Hardwood veneer over MDF/plywood substrate with mahogany stain | |
|---|---|---|
| Front panel construction | 18mm thick engineered wood core with raised solid wood molding details | |
| Decorative pilaster material | Solid hardwood with fluted detailing and shaped capitals/bases | |
| Base molding | Solid hardwood stepped plinth finished to match cabinet stain | |
| Finish coating | Commercial grade scratch-resistant polyurethane clear coat | |
| Hardware material | Zinc-plated steel connecting bolts and leveling glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular assembly system | Bolted sectional connection between bays for on-site assembly | |
|---|---|---|
| Floor leveling function | 15mm adjustable nylon glides at each pilaster base to compensate for uneven floors | |
| Cable management | 60mm diameter grommets on work surface routed to under-desk cable tray | |
| Central storage option | Two raised-panel cabinet doors at central bay for supply storage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate lobby reception | Formal traditional styling fits executive office, law firm, or government lobby entrances | |
|---|---|---|
| Court/government service counter | Long span and traditional raised panel design suits official public service spaces |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to reception work surface | |
|---|---|---|
| EN 15372:2016 | Furniture durability and strength requirements for non-domestic storage units | |
| EN 13722:2004 | Furniture test methods for table stability, applicable to freestanding reception counter stability |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to worktop strength and stability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to integrated cabinet doors/drawers |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet/desk construction quality | |
|---|---|---|
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes, applicable to wood coating durability | |
| GB/T 10357.1-1989 | Furniture mechanical performance test for table static load, applicable to worktop load verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet/desk construction quality; 2. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, applicable to wood coating durability; 3. GB/T 10357.1-1989: Furniture mechanical performance test for table static load, applicable to worktop load verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
