PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1620 × 2120 × 1180 mm
Recommended mattress size	1500 x 2000 mm
Headboard thickness	150 mm
Footboard height	380 mm
Mattress support platform height	300 mm
Underbed storage clearance	250 mm
Headboard ear protrusion width	120 mm each
Slat thickness	18 mm
Slat spacing	70 mm
Support leg height	150 mm
Bed rail height above slat	80 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	363 kg
Per drawer static load	15 kg
Product net weight	90 kg
Recommended maximum user weight	120 kg
Upholstery abrasion resistance	30000 cycles
Drawer slide cycle rating	10000 cycles
Recommended mattress thickness	220 mm
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard outer upholstery	Blush pink short-pile velvet fabric
Headboard inner frame	Solid pine + 15mm MDF structural panel
Headboard padding	25mm high-density polyurethane foam
Bed frame base slats	Solid poplar bent slats
Support legs	1.2mm thick matte black powder-coated steel
Footboard pull handle	20mm wide matte black metal bar
Drawer construction	12mm plywood drawer box with silent ball-bearing slides
Monkey facial applique	Embroidered/heat-bonded fabric details
Bed side rails	Upholstered MDF rails wrapped in matching blush fabric
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Underbed storage	One full-width pull-out drawer on metal slides, accessible via footboard handle
Slat support system	Fixed pre-assembled slat roll with 3 center support legs for even weight distribution
Headboard bump protection	Fully padded rounded edges and protruding ears to prevent child impact injury
Mattress compatibility	Fits standard 1500x2000mm mattresses 220 mm thick without box spring
Bed frame assembly	Knock-down assembly with included hex key and hardware, 2-person setup
Surface maintenance	Stain-resistant fabric surface wipeable with mild detergent for child spill cleanup
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Girls' bedroom application	Suitable for 12 year old children in private residential bedrooms, playful cartoon aesthetic
Small apartment layout fit	Low profile platform design with integrated storage to save floor space
Matching furniture bundle	Pairs with matching 2-drawer pink nightstands for coordinated room set
Preschool to teen use	1500mm width supports use from early childhood through teenage years
Soft injury prevention	Fully upholstered edges eliminate hard corner impact risks for active children

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 747-1:2012+A1:2015	Furniture - Bunk beds and high beds for domestic use - Safety requirements, for structural safety reference
EN 1022:2018	Furniture - Seating - Determination of stability, applicable for bed stability verification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 28007-2011	General safety technical code for children's furniture, applicable for structural safety testing
GB/T 3324-2017	General technical requirements for wooden furniture, applicable for frame and panel performance
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances of wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB 28007-2011: General safety technical code for children's furniture, applicable for structural safety testing;
2. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for frame and panel performance;
3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances of wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · KBD-MONKEY-1500-PNK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · KBD-MONKEY-1500-PNK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · KBD-MONKEY-1500-PNKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

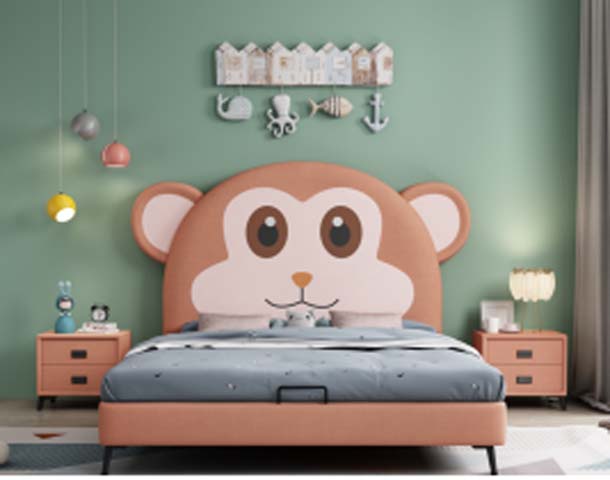

This unbranded 3D Cartoon Monkey Upholstered Kids Platform Storage Bed, model KBD-MONKEY-1500-PNK, brings playful, child-centered design to residential youth bedrooms with a cohesive blush pink short-pile velvet exterior. The headboard features a sculpted 3D monkey form with protruding 120mm fabric ears, embroidered and heat-bonded facial details, and fully padded rounded edges, paired with a low 380mm footboard fitted with a matte black metal pull handle. The low-profile platform sits at a 300mm mattress support height, with uniform blush velvet upholstery wrapping all side rails to eliminate exposed hard surfaces, creating a soft, approachable visual profile tailored for young users.
Built for durable daily use, the bed’s core structure combines a solid pine and 15mm MDF headboard frame cushioned with 25mm high-density polyurethane foam, 18mm thick solid poplar bent slats in a pre-assembled fixed roll supported by three center legs, and 1.2mm matte black powder-coated steel support legs. The single full-width underbed storage drawer is constructed from 12mm plywood with silent ball-bearing slides, rated to hold 15kg per drawer, while the upholstery withstands 30,000 abrasion cycles and resists stains for easy cleanup of childhood spills with mild detergent. The frame supports a total static weight of 363kg, with a recommended maximum user weight of 120kg, and drawer slides are rated for 10,000 open-close cycles. All main joints support up to 5 controlled assembly cycles.
The bed accommodates standard 1500 x 2000mm mattresses up to 220mm thick without requiring a box spring, and the 250mm underbed clearance houses the pull-out storage drawer to maximize floor space in small apartment layouts. The padded headboard and fully upholstered edges reduce impact injury risks for active children, while the 1500mm width supports use from early childhood through the teenage years, including for children up to 12 years old in girls’ bedrooms, and pairs seamlessly with matching blush pink 2-drawer nightstands for a coordinated room aesthetic.
Procurement teams should note the bed ships knock-down for two-person assembly, with an included hex key and hardware supporting 40-minute assembly per set. Orders are packed across cartons with a total packaged gross weight of 130kg per set and 0.9m³ packaging volume, and replacement hardware should be stocked to support the rated assembly cycle limit for long-term residential use.
