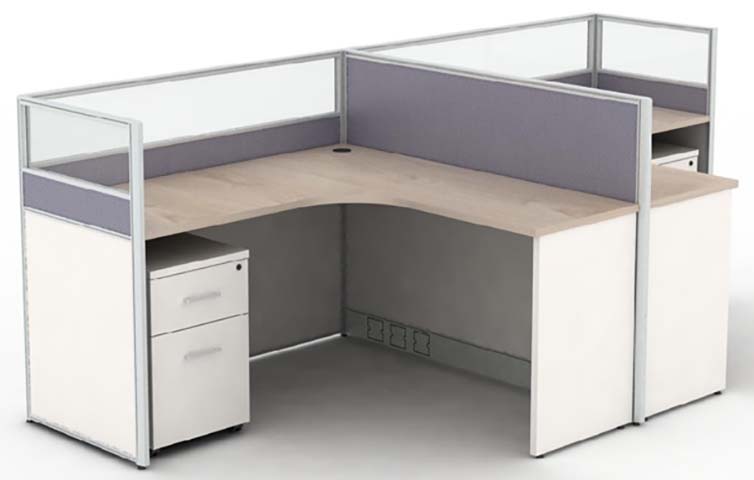

Product supplierL-Shaped Corner Office Cubicle Workstation with Glass-Fabric Partitions and Mobile Pedestal, E0 grade high-density fiberboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1600 × 1600 × 1200 mm | |
|---|---|---|
| Overall footprint (single workstation) | 1600 x 1600 x 1200 mm | |
| Work surface height | 750 mm | |
| Total partition height | 1200 mm | |
| Upper glass partition height | 300 mm | |
| Work surface depth (main segment) | 600 mm | |
| Curved knee opening radius | 350 mm | |
| Partition panel thickness | 40 mm | |
| Mobile pedestal dimensions | 400 x 450 x 600 mm | |
| Under-desk knee clearance height | 650 mm | |
| Work surface thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 150 kg | |
|---|---|---|
| Unit net weight (single workstation with pedestal) | 105 kg | |
| Recommended user weight capacity | 136 kg | |
| Work surface abrasion resistance | 2000 cycles | |
| Partition fabric flame retardant rating | B1 | |
| Worktop substrate density | 720 kg/m³ | |
| Standard warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | E0 grade high-density fiberboard | |
|---|---|---|
| Worktop finish | Light wood grain melamine laminate | |
| Partition frame | Powder-coated aluminum alloy extrusion | |
| Upper partition panel | Clear tempered glass | |
| Middle partition panel | Woven polyester fabric over sound-dampening core | |
| Lower partition panel | White melamine laminate solid panel | |
| Work surface edge banding | 2 mm thick PVC hot-melt sealed edge | |
| Mobile pedestal construction | Cold-rolled steel with white powder coat | |
| Support framework | 1.2 mm thick cold-rolled steel brackets and legs | |
| Cable management components | ABS plastic cable raceways and grommets | |
| Pedestal drawer slides | 3-section ball-bearing steel soft-close slides | |
| Leveling feet | Nylon anti-slip adjustable height feet |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | 60 mm desktop grommet + under-panel raceway with 3 outlet cutouts | |
|---|---|---|
| Mobile pedestal storage | 2 lockable drawers on 50 mm casters, includes pencil tray and file hanging rails | |
| Partition privacy screening | Semi-enclosed 3-sided dividers with 300 mm glass top for light transmission | |
| Modular connection system | Metal bracket connectors for linking adjacent workstations into clusters | |
| Leveling adjustment | 10 mm height adjustment range on base feet for uneven floors | |
| Pedestal mobility | 360-degree swivel casters, 2 with locking brake for fixed positioning | |
| Customizable finish options | 30+ available laminate and fabric color options for layout coordination | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packaging type | Knock-down flat pack with 5-layer corrugated cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work areas | Semi-private partitioned stations reduce distraction in shared workspace | |
|---|---|---|
| Small business administrative offices | Compact L-shape fits corner spaces with integrated storage for daily paperwork | |
| Call center and customer service floors | Repeatable modular design allows fast reconfiguration of seating clusters | |
| Medical and government office facilities | Durable, easy-clean surfaces meet public sector facility maintenance requirements | |
| Startup and co-working spaces | Light wood and glass finish creates bright, modern aesthetic with flexible layout options | |
| Temporary and project-based office setups | Knock-down design allows fast installation and relocation between sites |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables - Part 1: Dimensions | |
|---|---|---|
| EN 1335-1:2020 | Office work chairs - Part 1: Dimensions | |
| EN 1022:2018 | Domestic and non-domestic seating - stability test | |
| EN 13501-1:2018 | Fire classification of construction products and building elements |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office Furnishings - Desk/Table Products | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Office Furnishings - Storage Units | |
| ANSI/BIFMA X7.1-2020 | Standard for Formaldehyde and TVOC Emissions of Low-emitting Office Furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB 18584-2017 | Indoor decorating and refurbishing materials - limit of formaldehyde emission for wooden furniture | |
|---|---|---|
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
| GB 20286-2006 | Fire performance requirements and labeling for public place furnishings | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables - static load test |
Standardized tender description text
This product must meet the following technical requirements: 1. GB 18584-2017: Indoor decorating and refurbishing materials - limit of formaldehyde emission for wooden furniture; 2. GB/T 3324-2017: General technical requirements for wooden furniture; 3. GB 20286-2006: Fire performance requirements and labeling for public place furnishings; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables - static load test; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
