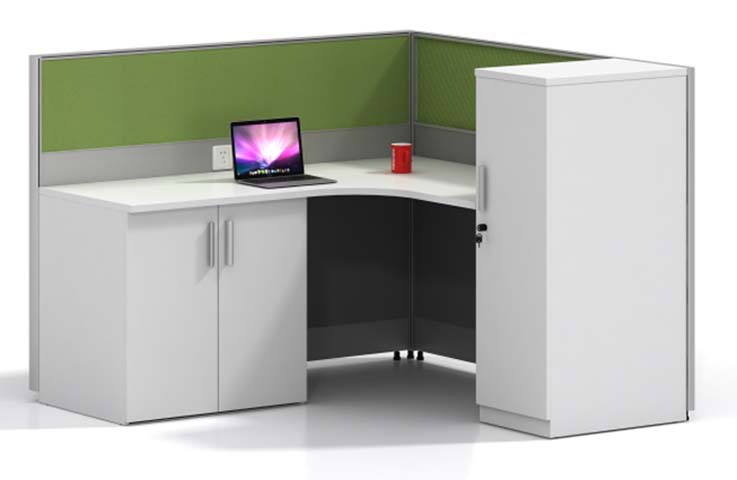

Single Corner Workstation with Attached Storage Pedestal and Partition Screens (model WS-COR-120CAB-GRN) is listed under L-Shaped Office Desk, with overall dimensions of 1600 × 1600 × 1200 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Corner,configuration,built-in,storage,fabric,partition,lockable,cabinet,power,outlet. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 100 kg | |
|---|---|---|
| Recommended user weight capacity | 120 kg | |
| Product net weight | 145 kg | |
| Partition acoustic privacy rating | 25 dB | |
| Drawer and door cycle durability | 50000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop surface | 18mm thick melamine-faced particleboard, 2mm PVC edge banding | |
|---|---|---|
| Partition panel facing | Polyester fabric over medium density fiberboard core | |
| Partition frame | Powder-coated extruded aluminum | |
| Cabinet body | 16mm thick melamine-faced particleboard | |
| Cabinet hardware | Zinc alloy handles, steel lock core, nylon adjustable glides | |
| Modesty panel | 15mm thick melamine-faced particleboard, matte black finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated power access | Built-in 3-outlet AC power unit mounted on left partition above desktop | |
|---|---|---|
| Lockable storage | Right tall pedestal fitted with keyed cam lock to secure stored contents | |
| Under-desk storage | Left double-door cabinet provides enclosed storage for files and supplies | |
| Adjustable leveling | Nylon glides at base of supports allow 10mm height adjustment for uneven floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office individual workspaces | Provides semi-private partitioned space for focused individual work in shared offices | |
|---|---|---|
| Administrative and clerical work areas | Integrated storage supports document organization for administrative staff |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
