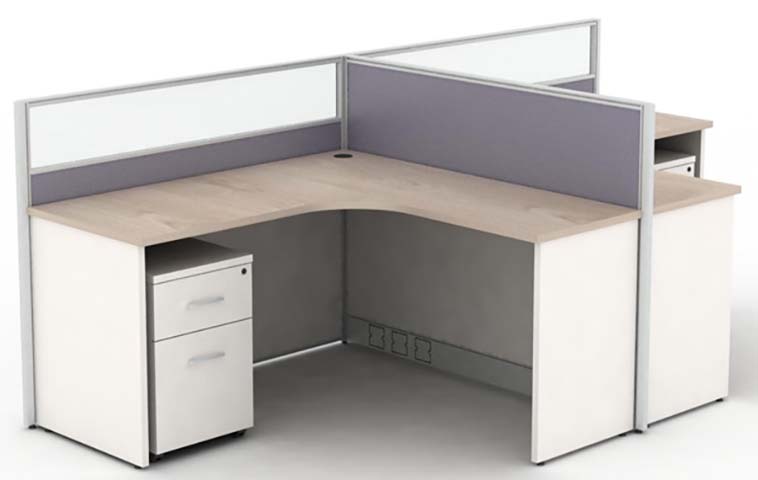

Modular L-Shaped Corner Office Cubicle Workstation with Mobile Pedestal and Glass-Fabric Partitions (model CUB-L1500-MOB-OAKWHT) is listed under L-Shaped Office Desk. Dimensions: 1500 × 1400 × 1100 mm. Materials: E0 grade high-density melamine-faced particleboard (720kg/m³). Load capacity: 150 kg. Product Features: modular,furniture,partial-height,privacy,dividers,integrated,cable,management,mobile,locking,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | aibi furniture | Model | CUB-L1500-MOB-OAKWHT |
| Overall dimensions (W × D × H) | 1500 × 1400 × 1100 mm | Overall workstation footprint | 1500 x 1400 x 1100 mm |
| Work surface height from floor | 750 mm | Worktop panel thickness | 25 mm |
| Desktop surface depth per arm | 600 mm | Knee clearance height under worktop | 680 mm |
| Knee opening width at curved recess | 800 mm | Privacy partition total height | 1100 mm |
| Partition panel thickness | 60 mm | Mobile pedestal dimensions | 400 x 450 x 600 mm |
| Frosted glass upper strip height | 300 mm | Fabric lower panel height | 600 mm |
| PVC edge banding thickness | 2.0 mm | Primary Component Thickness | 40 mm according to load-bearing role |
| Hardware / Moving-part Clearance | 5 mm operating clearance | Worktop uniform static load capacity | 150 kg |
| Mobile pedestal per-drawer static load | 30 kg | Recommended user weight for seated use | 120 kg |
| Partition basic sound attenuation | 12 dB | Drawer slide cycle durability | 50000 cycles |
| Workstation net weight (without pedestal) | 65 kg | Available finish color options | 3 |
| Reference Static Load | 150 kg depending on category | Moving-part Durability Reference | Acceptance target 50000 cycles |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years | Worktop substrate | E0 grade high-density melamine-faced particleboard (720kg/m³) |
| Worktop finish | Wear-resistant, fire-retardant melamine laminate with 2mm PVC edge banding | Partition frame | 1.2mm thick powder-coated aluminum alloy extrusion |
| Lower partition panel | Polyester B1 flame-retardant anti-static fabric over sound-dampening fiber fill | Upper partition panel | 5mm thick frosted tempered glass |
| Support leg/frame | 1.2mm thick cold-rolled steel with electrostatic powder coating | Mobile pedestal drawer construction | 0.8mm thick cold-rolled steel with white powder-coated finish |
| Modesty panel | 18mm thick melamine-faced particleboard with gray finish | Drawer hardware | 3-section soft-close silent steel slides with central cam lock |
| Casters for mobile pedestal | 50mm diameter black nylon swivel casters | Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
| Reference Finish / Color Count | Recommended 6finish options | Cable management system | Corner desktop grommet plus three lower modesty panel pass-throughs |
| Mobile pedestal operation | Full-extension soft-close drawers with central locking key | Modular connection capability | Pre-drilled frame joints to connect adjacent workstation units |
| Privacy partition function | Two-section fabric-glass divider blocks direct seated sightlines | Surface scratch resistance | Melamine finish resists 2000 cycles of abrasion without visible wear |
| Leveling adjustment | Adjustable glide feet on fixed support panels to compensate for uneven floors | Storage configuration | Two equal-height drawers for stationery and hanging file storage |
| Customization compatibility | Accepts optional add-on keyboard trays, CPU holders and power modules | Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Packaging Volume | 0.8 m³/set | Reference Packaged Gross Weight | 120 kg/set |
| Open-plan corporate office spaces | Provides individual work zones with privacy without blocking overhead light | Small business staff work areas | Modular scalable design supports 4person team expansion over time |
| Co-working shared office facilities | Locking mobile pedestal secures personal items for rotating users | Government and institutional office projects | Compliant with standard commercial furniture fire and formaldehyde requirements |
| Call center and administrative work floors | Partial height dividers reduce cross-conversation distraction | Temporary project office setups | Knock-down design allows quick reconfiguration and relocation |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1500 × 1400 × 1100 mm | |
|---|---|---|
| Overall workstation footprint | 1500 x 1400 x 1100 mm | |
| Work surface height from floor | 750 mm | |
| Worktop panel thickness | 25 mm | |
| Desktop surface depth per arm | 600 mm | |
| Knee clearance height under worktop | 680 mm | |
| Knee opening width at curved recess | 800 mm | |
| Privacy partition total height | 1100 mm | |
| Partition panel thickness | 60 mm | |
| Mobile pedestal dimensions | 400 x 450 x 600 mm | |
| Frosted glass upper strip height | 300 mm | |
| Fabric lower panel height | 600 mm | |
| PVC edge banding thickness | 2.0 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop uniform static load capacity | 150 kg | |
|---|---|---|
| Mobile pedestal per-drawer static load | 30 kg | |
| Recommended user weight for seated use | 120 kg | |
| Partition basic sound attenuation | 12 dB | |
| Drawer slide cycle durability | 50000 cycles | |
| Workstation net weight (without pedestal) | 65 kg | |
| Available finish color options | 3 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | E0 grade high-density melamine-faced particleboard (720kg/m³) | |
|---|---|---|
| Worktop finish | Wear-resistant, fire-retardant melamine laminate with 2mm PVC edge banding | |
| Partition frame | 1.2mm thick powder-coated aluminum alloy extrusion | |
| Lower partition panel | Polyester B1 flame-retardant anti-static fabric over sound-dampening fiber fill | |
| Upper partition panel | 5mm thick frosted tempered glass | |
| Support leg/frame | 1.2mm thick cold-rolled steel with electrostatic powder coating | |
| Mobile pedestal drawer construction | 0.8mm thick cold-rolled steel with white powder-coated finish | |
| Modesty panel | 18mm thick melamine-faced particleboard with gray finish | |
| Drawer hardware | 3-section soft-close silent steel slides with central cam lock | |
| Casters for mobile pedestal | 50mm diameter black nylon swivel casters | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Corner desktop grommet plus three lower modesty panel pass-throughs | |
|---|---|---|
| Mobile pedestal operation | Full-extension soft-close drawers with central locking key | |
| Modular connection capability | Pre-drilled frame joints to connect adjacent workstation units | |
| Privacy partition function | Two-section fabric-glass divider blocks direct seated sightlines | |
| Surface scratch resistance | Melamine finish resists 2000 cycles of abrasion without visible wear | |
| Leveling adjustment | Adjustable glide feet on fixed support panels to compensate for uneven floors | |
| Storage configuration | Two equal-height drawers for stationery and hanging file storage | |
| Customization compatibility | Accepts optional add-on keyboard trays, CPU holders and power modules | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan corporate office spaces | Provides individual work zones with privacy without blocking overhead light | |
|---|---|---|
| Small business staff work areas | Modular scalable design supports 4person team expansion over time | |
| Co-working shared office facilities | Locking mobile pedestal secures personal items for rotating users | |
| Government and institutional office projects | Compliant with standard commercial furniture fire and formaldehyde requirements | |
| Call center and administrative work floors | Partial height dividers reduce cross-conversation distraction | |
| Temporary project office setups | Knock-down design allows quick reconfiguration and relocation |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic reference for work surface height and clearance dimensions | |
| EN 1022:2018 | Domestic and contract furniture stability testing requirements for freestanding desks |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for load, durability and stability performance testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for mobile pedestal drawer performance and lock testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and panel components | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for office desks, applicable to worktop load and stability testing | |
| GB 20286-2006 | Flame retardant requirements for public place furniture, applicable to fabric partition panels | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E0 grade board substrates |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and panel components; 2. GB/T 3327-2016: Performance requirements for office desks, applicable to worktop load and stability testing; 3. GB 20286-2006: Flame retardant requirements for public place furniture, applicable to fabric partition panels; 4. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E0 grade board substrates; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
