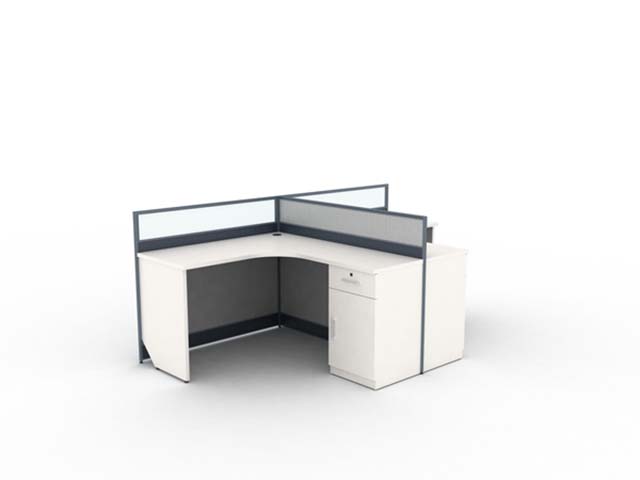

Product supplierSingle-Seat L-Shaped Cubicle Office Workstation Desk, 25mm melamine-faced particleboard, 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1600 × 1600 × 1100 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Main work segment width | 1400 mm | |
| Return segment depth | 700 mm | |
| Work surface thickness | 25 mm | |
| Knee clearance height | 620 mm | |
| Knee clearance width at inner corner | 800 mm | |
| Partition height above work surface | 450 mm | |
| Glass panel thickness | 5 mm | |
| Partition frame profile thickness | 30 mm | |
| Drawer internal usable height | 120 mm | |
| Storage cabinet internal usable height | 480 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 150 kg | |
|---|---|---|
| Workstation net weight | 60 kg | |
| Recommended user weight capacity | 120 kg | |
| Edge banding peel resistance | 50 N | |
| Surface abrasion resistance cycles | 2000 cycles | |
| Product warranty | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panel | 25mm melamine-faced particleboard, 2mm PVC edge banding | |
|---|---|---|
| Partition support frame | 1.2mm thick dark gray powder-coated steel | |
| Partition infill panels | 5mm tempered glass, half frosted half clear finish | |
| Under-desk pedestal carcass | 18mm melamine-faced particleboard with matching PVC edging | |
| Modesty panel under work surface | 12mm dark gray melamine hardboard | |
| Drawer and cabinet hardware | Zinc-plated steel slides, chrome-plated recessed pull handles, keyed drawer lock | |
| Foot levelers | Nylon base adjustable steel leveling glides | |
| Cable grommet | 60mm diameter black ABS plastic grommet at inner corner | |
| Desk support legs | 1.5mm thick square steel tube legs with white powder coat | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | 60mm corner cable grommet routes power/data cords from desktop to under-desk | |
|---|---|---|
| Storage drawer | 1 key-locked full-extension pencil drawer holds stationery and small office items | |
| Enclosed storage cabinet | 1 door cabinet with 1 adjustable shelf stores personal items and documents | |
| Workspace division | Two-sided low glass partition separates adjacent workstations without blocking overhead light | |
| Leveling adjustment | 4 adjustable foot glides compensate for uneven floor surfaces up to 10mm | |
| Partition accessory compatibility | Frame slots support optional monitor arms, name plates and pen holders | |
| Knock-down assembly | Flat-pack construction allows on-site assembly without specialized tools | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Single L-station for individual staff work zones in open office layouts | |
|---|---|---|
| General administrative staff | Suitable for clerical, data entry and administrative employee daily work | |
| Small office home office upgrades | Compact L-footprint fits small private offices for dual-task computer and paperwork use | |
| Call center and customer service areas | Low dividers provide visual separation while maintaining supervisor visibility | |
| Recommended paired accessories | Ergonomic office chair, monitor arm, under-desk CPU holder and cable tray | |
| Standard cluster configurations | Can be grouped into 2-person, 4-person or 6-person cubicle banks |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables, safety and strength requirements for work surfaces | |
|---|---|---|
| EN 527-2:2016 | Office worktables, dimensional requirements for seated workstations | |
| EN 12521:2015 | Furniture, strength and durability for non-domestic seating-adjacent tables |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to drawer and cabinet testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and storage panels | |
|---|---|---|
| GB/T 3327-2019 | Office desks and tables, applicable to dimension and structural requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to panel components | |
| GB/T 28202-2011 | Office furniture glass partition safety requirements, applicable to divider panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and storage panels; 2. GB/T 3327-2019: Office desks and tables, applicable to dimension and structural requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to panel components; 4. GB/T 28202-2011: Office furniture glass partition safety requirements, applicable to divider panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
