PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3020 × 2800 × 1200 mm
Overall cluster dimensions	3020 x 2800 x 1200 mm
Work surface height	750 mm
Work surface depth	700 mm
Per workstation L-arm length	1600 mm
Partition panel thickness	60 mm
Work surface thickness	25 mm
Side modesty panel thickness	16 mm
Knee well clearance height	650 mm
Knee well clearance width	800 mm
Mobile pedestal dimensions	400 x 400 x 600 mm
Aluminum partition frame profile	30 x 30 mm with 1.0 mm wall thickness
PVC edge banding thickness	1.5 mm
Caster diameter	50 mm
Upper mesh vent section height	200 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set gross weight	180 kg
Per work surface static load capacity	100 kg
Mobile pedestal drawer static load	30 kg per drawer
Partition frame panel impact resistance	200 N
Recommended per-user weight capacity	120 kg
Melamine surface abrasion resistance	2000 cycles
Surface stain resistance rating	Grade 4
Structural service life	10 years
Board density	700 kg/m³
Formaldehyde emission level	0.025 mg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm high-density particleboard with light oak melamine finish, 1.5mm PVC edge banding
Partition frame	30x30mm powder-coated dark gray steel/aluminum alloy with 1.0mm wall thickness
Main partition panels	Sage green upholstered fabric over fiberboard core, 60mm total thickness
Upper partition sections	Sage green frame with mesh/grille vent inserts for air circulation
Side modesty panels	16mm light oak melamine engineered wood, matching work surface finish
Mobile pedestal fronts	Sage green melamine drawer fronts with integrated lock, light oak body panels
Mobile pedestal casters	50mm black nylon swivel casters, 360-degree rotation
Cable management system	Recessed plastic cable raceways with desk grommets at work surface corners
Desk levelers	Adjustable nylon floor glides on frame bases for uneven floor compensation
Partition connection hardware	Zinc-plated steel bracket connectors for modular knock-down assembly
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Two opposite-facing curved-corner L-shaped work positions separated by full-height dividers
Storage configuration	One lockable 3-drawer mobile pedestal per workstation, rolling under desk for flexible placement
Privacy partition design	Mixed full and partial height dividers with upper mesh vents for air flow and partial visual privacy
Cable routing	Integrated partition-mounted cable raceways with corner desk grommets to conceal power and data cords
Mobility function	Mobile pedestals fitted with four swivel casters, two with brake locks for fixed positioning when needed
Assembly structure	Knock-down modular construction with bolted frame connectors for on-site assembly and reconfiguration
Floor adaptation	Adjustable glides on all frame base points to compensate for ±10mm floor unevenness
Drawer locking	Central key lock per pedestal secures all three drawers for personal document security
Reconfiguration capability	Modular panel connectors allow workstation layout changes without full disassembly of core components
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff areas	Provides partitioned personal work space for two employees while maintaining workspace density
Small business office fit-outs	All-in-one workstation with integrated storage reduces need for separate furniture purchases
Call center and back office zones	Semi-private dividers reduce visual distraction while allowing supervisor visibility across stations
Co-working space dedicated desk zones	Lockable storage allows permanent assigned desk use for members needing secure file storage
Government and educational staff offices	Durable construction meets public sector procurement requirements for long-term heavy use
Branch office open work areas	Modular design allows easy reconfiguration as team size or layout needs change

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2019	Office worktables safety and strength requirements, applicable to structural performance validation
EN 1335-1:2020	Office furniture work chair dimensional coordination, referenced for seated desk clearance alignment
EN 12521:2015	Furniture strength, durability and safety for non-domestic seating work areas, applicable to partition stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to work surface load and durability testing
ANSI/BIFMA X5.10-2017	Office panel systems performance standard, applicable to partition strength and stability
ANSI/BIFMA X5.6-2016	Storage units performance standard, applicable to mobile pedestal load and durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to dimensional and structural quality checks
GB/T 3327-2018	Performance standards for office desks and workstations, applicable to work surface load and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance
GB/T 4897.3-2015	Specification for particleboard used in furniture, applicable to desk panel material quality

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural quality checks;
2. GB/T 3327-2018: Performance standards for office desks and workstations, applicable to work surface load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance;
4. GB/T 4897.3-2015: Specification for particleboard used in furniture, applicable to desk panel material quality;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-2P-L1600-SG-OAK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-2P-L1600-SG-OAK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-2P-L1600-SG-OAKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

This 2-person curved-corner L-shaped office cubicle workstation delivers a coordinated, space-efficient work solution for dual users, with a polished mixed-material aesthetic that balances warm wood tones and soft, neutral fabric accents. Its layout arranges two opposite-facing L-shaped work positions around a smooth curved corner, separated by structured partitions that define clear personal work zones without closing off the surrounding space. The light oak finish of work surfaces and modesty panels pairs with sage green fabric partition panels and matching pedestal drawer fronts, grounded by a dark gray powder-coated metal frame for a professional, understated look suited to shared work environments. Construction draws on durable, purpose-selected materials built for regular commercial use. Work surfaces are crafted from high-density particleboard with a light oak melamine facing, sealed with PVC edge banding to resist daily wear. The partition frame uses powder-coated metal tubing, supporting 60mm thick fabric-upholstered panels with fiberboard cores; upper partition sections integrate mesh vent inserts to support consistent air circulation between work zones. Each position comes with a matching mobile pedestal, fitted with black nylon swivel casters for smooth repositioning. Adjustable nylon glides on the frame base compensate for uneven flooring, while integrated recessed plastic cable raceways and corner desk grommets keep power and data cords concealed and organized. Functional features are tailored to productive shared work: each lockable three-drawer mobile pedestal rolls fully under the work surface for flexible placement, with two brake-enabled casters to hold it in fixed position when required. The mixed-height partition design delivers partial visual privacy to reduce cross-user distraction, while preserving visibility across the wider space for team oversight. The knock-down modular bolted frame allows straightforward on-site assembly, and supports future reconfiguration as workspace needs evolve. This workstation fits a broad range of commercial and residential-adjacent work settings, including open-plan office staff areas, small business fit-outs, call center and back office zones, co-working dedicated desk areas, government and educational staff offices, and branch office open work zones. It offers built-in storage to reduce the need for separate furniture purchases, and durable construction suited to long-term heavy use. For procurement teams, key considerations include planning for on-site assembly, accounting for multi-carton delivery, and noting that modular compatibility supports future layout adjustments as team sizes or space requirements shift. The lockable pedestal storage supports secure file keeping for assigned users, making the unit suitable for both temporary shared use and permanent dedicated desk assignments.

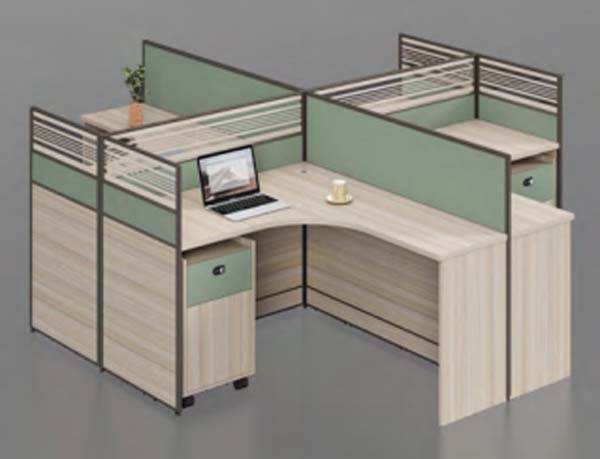

2-Person Curved-Corner L-Shaped Office Cubicle Workstation with Mobile Pedestals Specifications
