PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation static load capacity	100 kg
Partition panel lateral stability load	20 kg
Recommended occupant capacity	1 person per workstation
Task chair recommended user weight	120 kg
Task chair net weight	14 kg
Chair caster rolling durability	40,000 cycles
Gas lift cyclic durability	100,000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain laminate panel with sealed edge banding
Storage panels	18 mm melamine-faced particleboard panels with PVC edge banding
Screen lower band	Solid wood-grain and light-gray composite privacy panel
Upper screen	Frosted translucent polycarbonate or acrylic louver panel in aluminum frame
Partition frame	Light-gray powder-coated aluminum or steel extrusions with square connector posts
Task chair upholstery	Black woven mesh back and black fabric or padded mesh seat with green visible back insert

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation configuration	Fixed L-shaped curved-corner layout creates one seated work bay and connects into a multi-seat cluster
Privacy and division	Two-tier partition combines an opaque lower modesty band with a 350 mm translucent upper screen
Storage operation	Right pedestal provides one upper shallow drawer and one lower lockable door compartment
Cable management	A 60 mm rear-corner cable grommet routes laptop or monitor cables below the work surface

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.42 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office use	Suitable for call centers, administration, and shared clerical areas where seated privacy and modular clustering are required.
Single-user knowledge work	The curved L-surface supports a laptop, documents, and reference storage within one 1400 mm personal bay.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L1400-2P-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L1400-2P-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L1400-2P-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The WS-L1400P-PED is an unbranded L-shaped panel-based workstation designed for single-user knowledge work while retaining the ability to connect into multi-seat clusters. Its fixed curved-corner layout forms one defined seated work bay, giving the user a continuous primary work surface and a return area that supports a laptop, documents, and reference materials within a compact personal workspace. The two-tier partition creates a structured visual boundary: the lower band is an opaque wood-grain and light-gray composite privacy panel, while the upper section uses a frosted translucent polycarbonate or acrylic louver panel set in an aluminum frame. This combination balances seated privacy with a light, open office appearance. The work surface is a 25 mm wood-grain laminate panel with sealed edge banding, and the finished top thickness is 50 mm. It is supported by a light-gray powder-coated aluminum or steel frame with square connector posts. The main support section uses an 80 mm leg or support profile with 2 mm metal wall thickness, and each main seat position provides 680 mm of knee clearance height and 900 mm of width. The frame finish and neutral screen tones suit standard commercial interiors without requiring a strong branded aesthetic. Integrated storage is positioned on the right pedestal, which is built from 18 mm melamine-faced particleboard panels with PVC edge banding. The pedestal includes an upper shallow drawer for stationery or small work items and a lower lockable door compartment for personal or operational storage. Cable management is handled through a 60 mm rear-corner grommet that routes monitor or laptop cables below the surface; the system also references an 80 mm cable opening and a cable tray depth of 120 mm for organized service space. The accompanying task chair uses black plastic components, a black woven mesh back, and a black fabric or padded mesh seat, with a green visible back insert providing a restrained accent. The workstation is suited to call centers, administration floors, shared clerical zones, and open-plan offices where modular clustering and individual privacy are both required. It is also appropriate for residential workrooms or study areas that need a structured desk with storage, though its form language and planning logic are primarily commercial. The workstation is rated for a 100 kg static load, one occupant, and a 20 kg lateral stability load on the partition panel. The chair is recommended for users up to 120 kg, weighs 14 kg, and includes caster and gas-lift durability ratings. Procurement teams should plan for assembly time, separate packaging of the main top and return or pedestal, and coordination of delivery access. The supplied packing information references two cartons per set in one field and four cartons in the packaged-weight details, so carton count should be confirmed at order placement alongside final packed volume and gross weight. Frame material, upper-screen material, and chair seat upholstery should also be confirmed where aluminum versus steel, polycarbonate versus acrylic, or fabric versus padded mesh affects the specification.

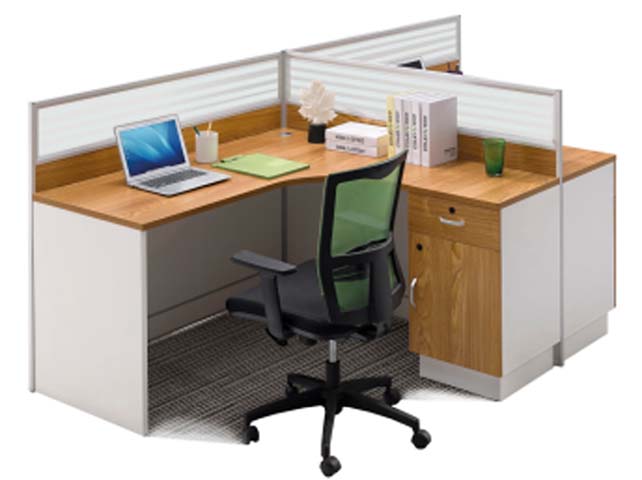

L-Shaped Panel-Based Workstation with Partition Screen and Storage Pedestal Specifications
