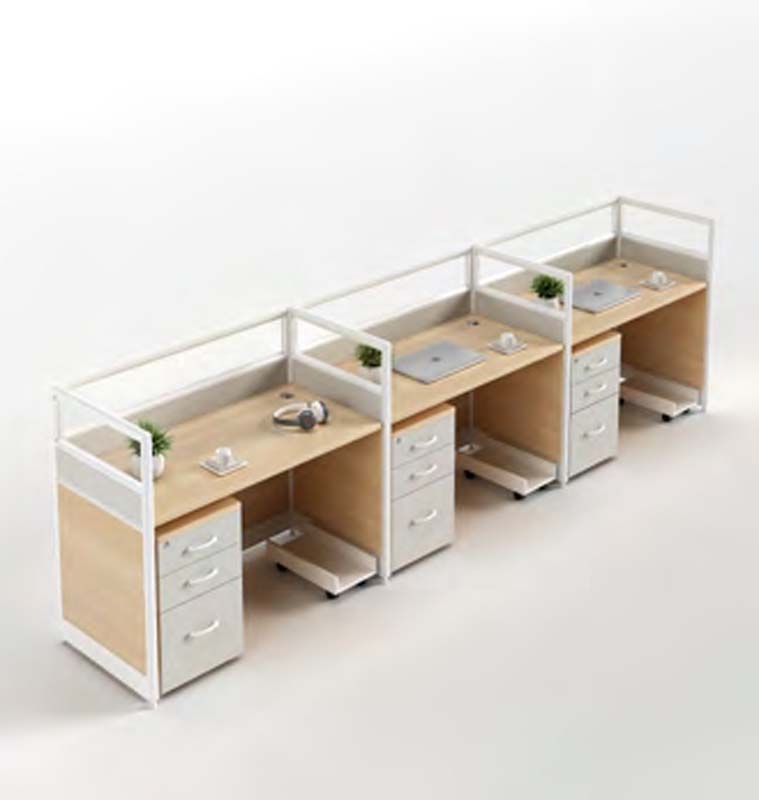

Product supplier3-Person Linear Modular Office Partition Workstation with Integrated Pedestals and CPU Shelves, 25mm E1-grade melamine-faced MFC board, 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4500 × 750 × 1100 mm | |
|---|---|---|
| Individual worksurface size per station | 1500 x 600 mm | |
| Worksurface height from floor | 750 mm | |
| Partition screen total height from floor | 1100 mm | |
| Privacy panel lower section height | 600 mm | |
| Knee clearance height under worktop | 700 mm | |
| Knee clearance depth under worktop | 450 mm | |
| 3-drawer pedestal dimensions per station | 400 x 500 x 650 mm | |
| Pull-out CPU shelf dimensions | 250 x 500 x 120 mm | |
| Worktop panel thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Metal partition frame tube thickness | 1.5 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight | 220 kg | |
|---|---|---|
| Worksurface static load capacity per station | 100 kg | |
| Recommended maximum user weight per station | 120 kg | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Recommended number of simultaneous users | 3 people | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface panel | 25mm E1-grade melamine-faced MFC board, 2mm PVC edge banding | |
|---|---|---|
| Modesty and side panels | 18mm melamine-faced MFC board, light oak finish, PVC edge banding | |
| Pedestal drawer fronts and bodies | 18mm white melamine MFC, steel pull handles, integrated key locks | |
| Partition structural frame | 1.5mm thick powder-coated white square steel tubing | |
| Lower privacy partition panels | Beige fabric-wrapped MDF core, sound-dampening backing | |
| Upper partition rail frame | Clear open white steel frame without infill panel | |
| Pull-out CPU shelf | 18mm melamine MFC platform, 4 black nylon swivel casters | |
| Cable management grommets | 60mm diameter white plastic desk grommet per station | |
| Pedestal drawer slides | Three-section full-extension cold-rolled steel silent ball-bearing slides | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Per-station fixed 3-drawer storage | Top 2 stationery drawers, bottom filing drawer, keyed lock to secure contents | |
|---|---|---|
| Pull-out rolling CPU shelf | Wheeled platform slides fully out from under worktop for equipment access and ventilation | |
| Low privacy partition dividers | Separates adjacent workstations to reduce cross-talk while maintaining open office sight lines | |
| Desktop cable management | Integrated circular grommet at each station routes power/data cables below work surface | |
| Modular knock-down construction | Pre-drilled connecting hardware allows reconfiguration or addition of extra stations | |
| Drawer operation | Full-extension slides allow complete drawer access without tipping, soft-close damping | |
| Worksurface layout | Each station provides unobstructed flat area for laptop, monitor and office accessories | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Call center open office areas | Low partitions reduce cross-talk while supporting high-density agent seating | |
|---|---|---|
| General administrative office areas | Integrated storage and cable management suit daily clerical and computer work | |
| Shared co-working spaces | Modular design supports dedicated assigned seats for multiple tenants | |
| Back-office processing departments | Per-user filing storage supports document organization for administrative staff | |
| Training and temporary project spaces | Reconfigurable modular layout supports short-term team workspace setup | |
| Small business open-plan offices | All-in-one cluster eliminates separate storage and desk procurement needs |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to commercial workstation design | |
|---|---|---|
| EN 12521:2015 | Furniture strength, durability and safety for non-domestic seating/work surfaces | |
| EN 13986:2004 | Wood-based panel performance requirements for construction/furniture use | |
| EN 717-1:2004 | Formaldehyde emission determination for wood-based panels, E1 equivalent requirement |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard covering load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard applicable to integrated drawer pedestals | |
| ANSI/BIFMA M7.1-2022 | Test method for formaldehyde and VOC emissions from office furniture systems |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel worktops and cabinet components | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks and workstations, applicable to load and stability testing | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade requirement for indoor use | |
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes, applicable to melamine worktops |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel worktops and cabinet components; 2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to load and stability testing; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade requirement for indoor use; 4. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, applicable to melamine worktops; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
