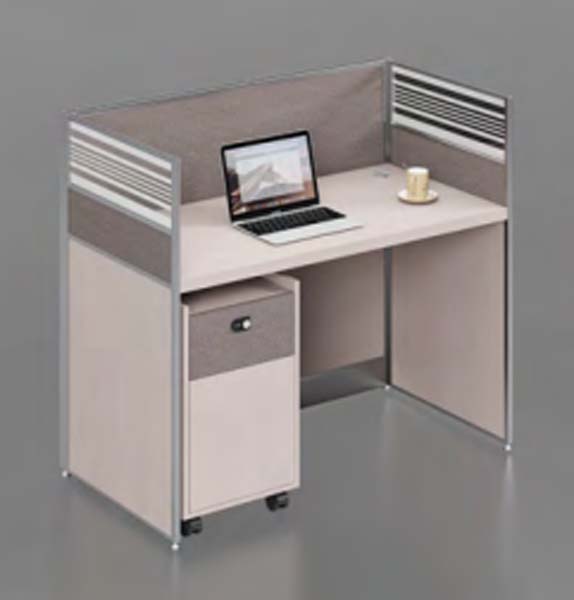

Product supplierSingle-Person 3-Sided Privacy Office Cubicle Workstation with Rolling Pedestal, 25mm E1 grade MFC core with beige melamine facing
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1400 × 700 × 1200 mm | |
|---|---|---|
| Overall footprint (W x D x H) | 1400 x 700 x 1200 mm | |
| Work surface height from floor | 750 mm | |
| Work surface thickness | 25 mm | |
| Privacy partition panel thickness | 32 mm | |
| Seated knee well clearance width | 700 mm | |
| Seated knee well clearance height | 650 mm | |
| Mobile pedestal dimensions (W x D x H) | 400 x 500 x 600 mm | |
| Ventilated upper partition strip height | 150 mm | |
| Partition base leveling foot height adjustment | 20 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation net weight | 85 kg | |
|---|---|---|
| Work surface static point load capacity | 100 kg | |
| Partition frame joint static load rating | 50 kg per connection | |
| Recommended maximum user weight | 120 kg | |
| Work surface abrasion resistance | 2000 cycles | |
| Standard commercial warranty | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate and finish | 25mm E1 grade MFC core with beige melamine facing | |
|---|---|---|
| Partition structural frame | 1.2mm thick extruded aluminum alloy profile | |
| Partition panel facing | Taupe woven fabric upholstery over fiberboard core | |
| Upper side partition vent section | Horizontal slatted rigid ABS plastic strips | |
| Mobile pedestal cabinet body | 18mm E1 grade MFC with matching beige melamine finish | |
| Mobile pedestal casters | 50mm diameter black nylon twin-wheel casters | |
| Hardware fasteners | Zinc-plated steel interlocking panel connectors | |
| Leveling feet | Nylon base with steel threaded adjustment stem | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| 3-sided seated visual privacy | Left, rear, and right full-height fabric panels block line of sight for adjacent seated users | |
|---|---|---|
| Mobile rolling file pedestal | Lockable 2-drawer unit rolls out for access and locks in place under work surface | |
| Adjustable floor leveling | Threaded feet at all partition base corners adjust to compensate for uneven floors | |
| Integrated base cable management | Aluminum frame base rails contain hidden channels to route power and data cables | |
| Modular reconfiguration capability | Interlocking steel connectors allow panels to be disassembled and reconnected for layout changes | |
| Lockable pedestal storage | Central cam lock secures both pedestal drawers to secure personal documents and office supplies | |
| Tackable partition surface | Fabric panel facing accepts push pins to post notes, schedules, and reference materials | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Call center open office layouts | Provides individual privacy for agents while maintaining compact floor footprint for high-density seating | |
|---|---|---|
| Small business private office workstations | All-in-one unit with storage supports individual task work for administrative or clerical staff | |
| Co-working space dedicated hot desks | Modular design allows permanent dedicated workstations with personal locking storage | |
| Training and temporary office setups | Knock-down assembly allows fast deployment for short-term project teams or temporary offices | |
| Administrative support work areas | Compact footprint fits in back-office support zones with easy access to shared equipment | |
| Reception side workstations | Low-profile partitions support staff work without blocking reception area visibility |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2016 | Office work tables safety and strength requirements, applicable to work surface structural design | |
|---|---|---|
| EN 1335-2:2018 | Office chair stability reference, applicable to coordinate with seated workstation clearance dimensions | |
| EN 1022:2018 | Furniture seating stability reference, applicable to workstation seated use safety |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard applicable to mobile pedestal performance and load ratings | |
| ANSI/BIFMA G1-2013 | Ergonomic guidelines for office furniture, applicable to work surface height and clearance dimensions |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to MFC work surface and pedestal components | |
|---|---|---|
| GB/T 35607-2017 | Green product assessment standard for furniture, applicable for low-VOC material selection | |
| GB 28007-2011 | Safety requirements for children's and adult office furniture, applicable to structural stability checks | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to work surface load verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to MFC work surface and pedestal components; 2. GB/T 35607-2017: Green product assessment standard for furniture, applicable for low-VOC material selection; 3. GB 28007-2011: Safety requirements for children's and adult office furniture, applicable to structural stability checks; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to work surface load verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
