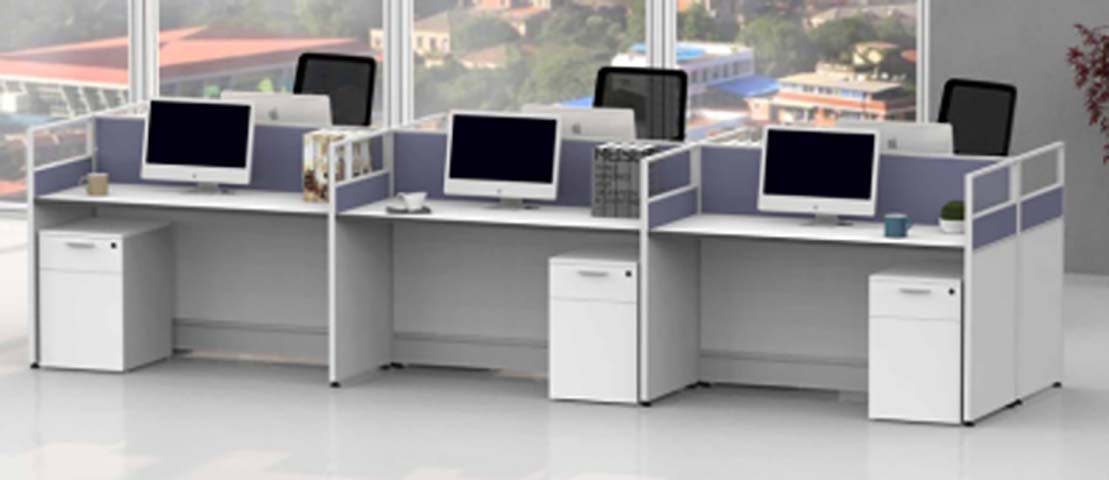

3-Person Linear Modular Office Workstation Cubicle with Mobile Pedestals (model CUB-LIN3-WP-MP) is listed under L-Shaped Office Desk, with overall dimensions of 3000 × 600 × 1100 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Modular,construction,fabric,privacy,dividers,under-desk,mobile,storage,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 3000 x 600 x 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-station work surface static load | 136 kg | |
|---|---|---|
| Drawer static load per pedestal | 25 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Partition noise reduction coefficient | 12 dB | |
| Surface scratch hardness rating | 2H | |
| Modular reconfiguration cycle rating | 500 cycles | |
| Total system static load capacity | 550 kg | |
| Fabric panel flame retardancy rating | CA 117 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | 18mm particleboard core with 25mm total melamine laminate finish | |
|---|---|---|
| Partition panel construction | Honeycomb core with MDF frame, tackable polyester fabric overlay | |
| Structural frame material | Powder-coated cold-rolled steel with white finish | |
| Mobile pedestal construction | 0.8mm cold-rolled steel with epoxy powder coat | |
| Desk modesty panel | 16mm melamine-faced particleboard matching work surface color | |
| Hardware components | Steel leveling feet, zinc-plated connectors, 3-section ball-bearing drawer slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular linear expansion | Steel connector brackets allow adding or removing stations in straight runs | |
|---|---|---|
| Cable management system | Integrated under-desk raceway with desk grommets routes power and data cables | |
| Mobile pedestal mobility | Four 360-degree swivel casters (2 locking) allow pedestal movement under desk | |
| Floor leveling adjustment | Rotating leveling feet on frame and pedestals compensate for uneven floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff zones | Suitable for call centers, administration teams, and back-office departments requiring moderate privacy | |
|---|---|---|
| Startup and small business offices | Cost-effective modular layout that can expand as headcount grows |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to work surfaces | |
|---|---|---|
| EN 1335-1:2020 | Office furniture workstation ergonomic dimensional requirements | |
| EN 1022:2018 | Domestic and contract furniture seating stability, applicable for chair clearance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for mobile pedestal testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to desktops and panels | |
|---|---|---|
| GB/T 3327-2017 | Technical requirements for office storage furniture, applicable to mobile pedestals | |
| GB 18584-2001 | Formaldehyde emission limits for wooden furniture, required for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desktops and panels; 2. GB/T 3327-2017: Technical requirements for office storage furniture, applicable to mobile pedestals; 3. GB 18584-2001: Formaldehyde emission limits for wooden furniture, required for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
