| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation footprint | 2400 x 1200 x 1230 mm | |
|---|---|---|
| Individual work surface | 1200 x 600 x 750 mm | |
| Work surface thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Rear privacy screen height | 1230 mm | |
| Side and center divider thickness | 60 mm | |
| Translucent upper panel height | 320 mm | |
| Solid lower modesty panel height | 430 mm | |
| Under-desk knee clearance height | 673 mm | |
| Minimum knee opening width per seat | 1100 mm | |
| Under-desk knee opening depth | 520 mm | |
| Cable grommet diameter | 60 mm | |
| Steel leg section | 45 x 45 mm | |
| Leveling glide adjustment | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 100 kg | |
|---|---|---|
| Static desktop load per seat | 113 kg | |
| Distributed total workstation load | 226 kg | |
| Cable grommet capacity | 2 cables | |
| Cable tray load capacity | 5 kg | |
| Panel tacking capacity | 200 g per pin | |
| Seating capacity | 2 people | |
| Warranty period | 5 years | |
| Color options | 60 colors | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | Particle board or MDF substrate with melamine-facing, 25 mm thick | |
|---|---|---|
| Work surface finish | Light wood-look melamine or thermally fused laminate | |
| Edge protection | 2 mm PVC or ABS impact-resistant edge banding | |
| Panel frame | Extruded aluminum rectangular frame with dark grey powder-coated appearance | |
| Upper privacy infill | Translucent frosted panel in aluminum frame | |
| Middle accent band | Warm brown fabric or laminated panel insert | |
| Lower modesty panels | Light grey board panel with dark horizontal trim | |
| Under-desk support frame | Dark grey steel square tubing with welded or bolted joints | |
| Leveling feet | Steel-stem nylon-base adjustable glides with black pads | |
| Cable port | Round plastic desktop grommet with light grey cap | |
| Fasteners and brackets | Zinc-plated steel panel-connection brackets with black cover caps | |
| Surface protection | Scratch-resistant melamine face with sealed edges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

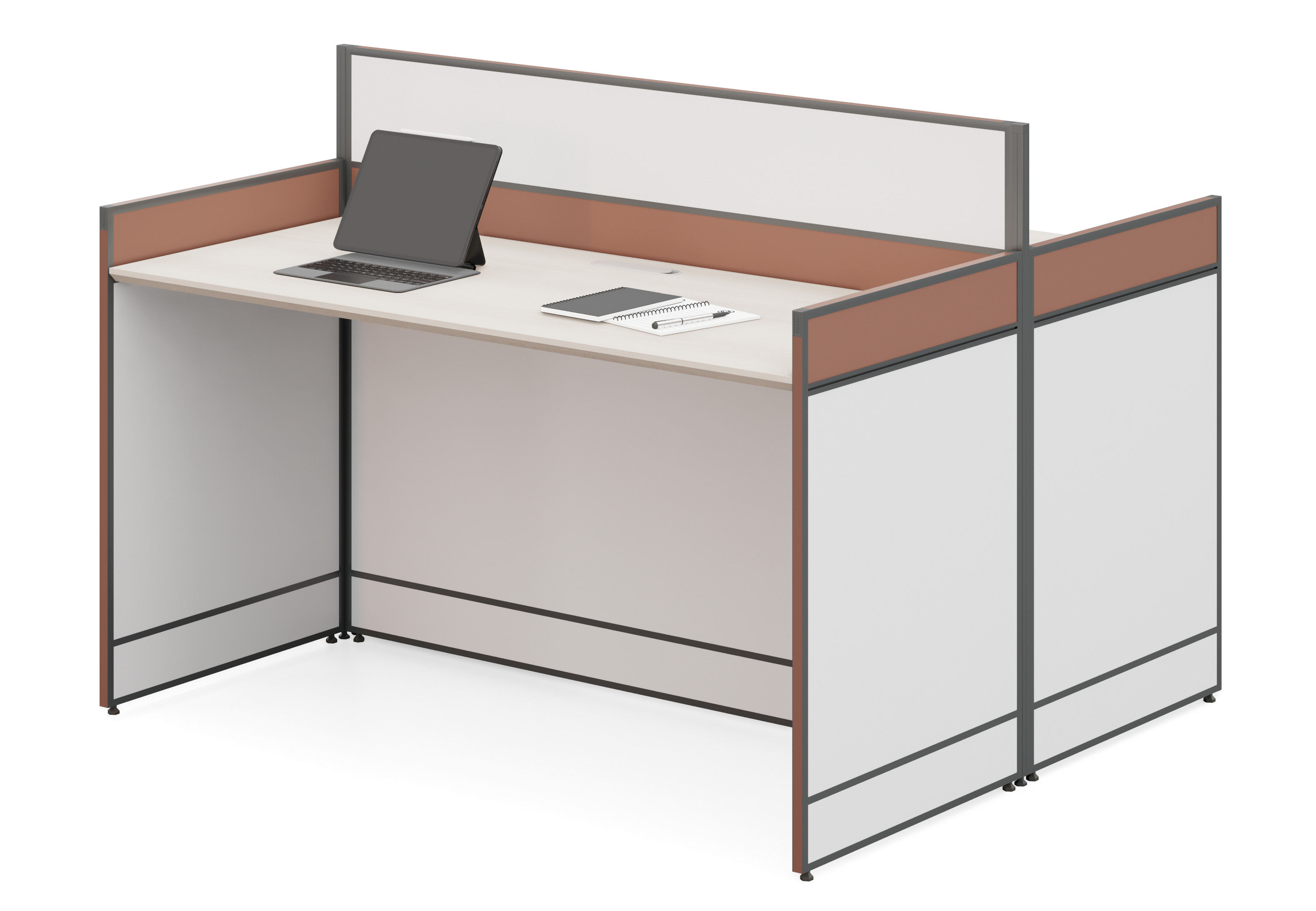

| Two-person workstation layout | Two 1200 x 600 mm seats are separated by framed dividers and retain independent knee bays | |
|---|---|---|
| Privacy screening | Rear screen rises to 1230 mm and side panels shield peripheral vision while preserving overhead light | |
| Cable routing | A 60 mm rear grommet routes monitor or laptop cables from the desktop to under-desk cable management | |
| Under-desk cable tray | A 5 kg-capacity tray can be fitted beneath the rear rail for power strips and network leads | |
| Floor leveling | 15 mm adjustable glides at each panel base correct uneven floors without altering desk height | |
| Modular expansion | Panel brackets allow the two-seat run to connect into additional seats or perpendicular partitions | |
| Open storage design | No drawers or pedestals are included, preserving 673 mm high knee clearance in each seat | |
| Panel attachment | Screens and desk supports align on a common framed grid and ship knocked down with connection hardware | |
| Installation type | Floor-standing non-fixed installation uses glides and does not require floor anchoring for normal office use | |
| Recommended power position | Power and data outlets should be placed below the rear screen within 300 mm of the grommet | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan staff office | Creates two individual seats while keeping visual connection above 1230 mm screens | |
|---|---|---|
| Administrative workstation area | Supports laptop, notebook, monitor and writing tasks on each 1200 x 600 mm surface | |
| Project-based team zone | Can be linked into longer runs using the same panel-and-bracket grid | |
| Hot-desk neighborhood | Grommet and under-desk cable route support quick laptop or monitor connection | |
| Small branch office | Provides two work positions without fixed pedestals, reducing footprint and initial cost | |
| Call-center or back-office row | Side and rear dividers reduce peripheral distraction while retaining supervisor sightlines | |
| Commercial interior fit-out project | Compatible with custom laminate and panel colors for open-office standards |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 suitability | Office desks and work tables safety, strength and durability requirements for the work surfaces | |
|---|---|---|
| EN 527-2:2002 suitability | Office desk dimensional requirements relevant to 750 mm height and seated clearance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 suitability | Office desk static, vertical and horizontal load tests for the two work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 suitability | Storage/pedestal tests apply only if optional mobile cabinets are purchased | |
| BIFMA E3-2019a suitability | Sustainability attributes and material declarations can be requested for panel and board components |
Standards applicable to China-market projects
| GB/T 3324-2024 suitability | General technical requirements for wooden furniture, applicable to the MFC desk top and board panels | |
|---|---|---|
| GB/T 3325-2017 suitability | Metal furniture technical requirements applicable to steel supports and panel frames | |
| GB/T 10357.5-2013 suitability | Table strength and load test method suitable for desktop static-load verification | |
| GB/T 10357.1-2013 suitability | Table dimensional stability test method suitable for leveling and floor-contact checks | |
| GB 18580-2017 suitability | Formaldehyde emission requirement applicable to wood-based panels and finished workstation |
This product must meet the following technical requirements: 1. GB/T 3324-2024 suitability: General technical requirements for wooden furniture, applicable to the MFC desk top and board panels; 2. GB/T 3325-2017 suitability: Metal furniture technical requirements applicable to steel supports and panel frames; 3. GB/T 10357.5-2013 suitability: Table strength and load test method suitable for desktop static-load verification; 4. GB/T 10357.1-2013 suitability: Table dimensional stability test method suitable for leveling and floor-contact checks; 5. GB 18580-2017 suitability: Formaldehyde emission requirement applicable to wood-based panels and finished workstation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
