PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1600 × 1100 mm
overall footprint	2800 x 1600 x 1100 mm
work surface height	750 mm
single L worktop arm length	1600 mm
single L worktop depth	700 mm
worktop thickness	25 mm
edge band thickness	2 mm
knee clearance height	690 mm
knee well width at curved cutout	600 mm
privacy partition height above worktop	350 mm
cable grommet diameter	60 mm
support leg diameter	50 mm
mobile pedestal dimensions	400 x 550 x 725 mm
footrest shelf height above floor	120 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total product weight	115 kg
uniform worktop static load	150 kg
per-drawer static load	15 kg
drawer slide cycle rating	50000 cycles
under-desk cable tray load capacity	5 kg
leveling foot adjustment range	10 mm
surface scratch resistance	2N load 300 cycles
applicable user count	2 persons
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

worktop core	E1 grade melamine-faced MFC panel
worktop edge banding	2mm thick PVC edge trim
support frame and legs	White powder-coated 1.2mm thick steel tube
privacy dividers	Frosted semi-transparent acrylic panel with white steel frame
pedestal cabinet body	E1 grade melamine-faced MFC panel
pedestal drawer fronts	18mm thick white melamine MFC panel
drawer slides	3-section full-extension steel ball-bearing slides
caster wheels	50mm diameter nylon swivel casters (2 locking)
cable grommets	ABS plastic circular wire management grommets
leveling feet	Reinforced nylon height-adjustable floor glides
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

drawer locking mechanism	Central linked lock secures all 3 pedestal drawers with one key
cable management system	Desktop grommets route power/data cables from work surface to under-desk space
pedestal mobility	Pedestal sits on 4 swivel casters to reposition under or adjacent to desk
floor leveling adjustment	Each outer support leg includes adjustable glide to compensate for uneven floors
workstation privacy separation	Low semi-transparent dividers block direct line of sight between adjacent users
modular assembly system	Partition panels connect with steel bracket hardware for reconfigurable layout
seated ergonomic access	Curved concave knee cutout centers user leg room for extended seated use
lower foot support shelf	Horizontal steel shelf at leg base provides foot rest for seated users
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

open plan office staff areas	Suits 2-person work groups in open offices with low visual privacy separation
startup and co-working spaces	Modular structure supports flexible team seating layout adjustments
administrative department work areas	Integrated filing pedestal stores documents and office supplies at each seat
educational institution office areas	Durable commercial-grade construction suits daily long-term staff use
small business back-office spaces	Compact footprint fits limited floor space while providing two full work positions
call center and shared work zones	Low dividers reduce distraction while enabling easy team communication

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables: dimensional and safety requirements for seated use
EN 13722:2004	Office furniture: strength and durability requirements for storage pedestals
EN 12521:2015	Furniture hardware: drawer slide performance and cycle testing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products: structural performance and durability testing standard
ANSI/BIFMA X5.9-2019	Storage units: performance and durability for office pedestal cabinets

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture for office use
GB 18580-2017	Formaldehyde emission limit for wood-based panels used in furniture, ≤0.124mg/m³
GB/T 4897.3-2015	Particleboard specifications for furniture-grade structural use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture for office use;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels used in furniture, ≤0.124mg/m³;
3. GB/T 4897.3-2015: Particleboard specifications for furniture-grade structural use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-WS2-1600MP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-WS2-1600MP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-WS2-1600MPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

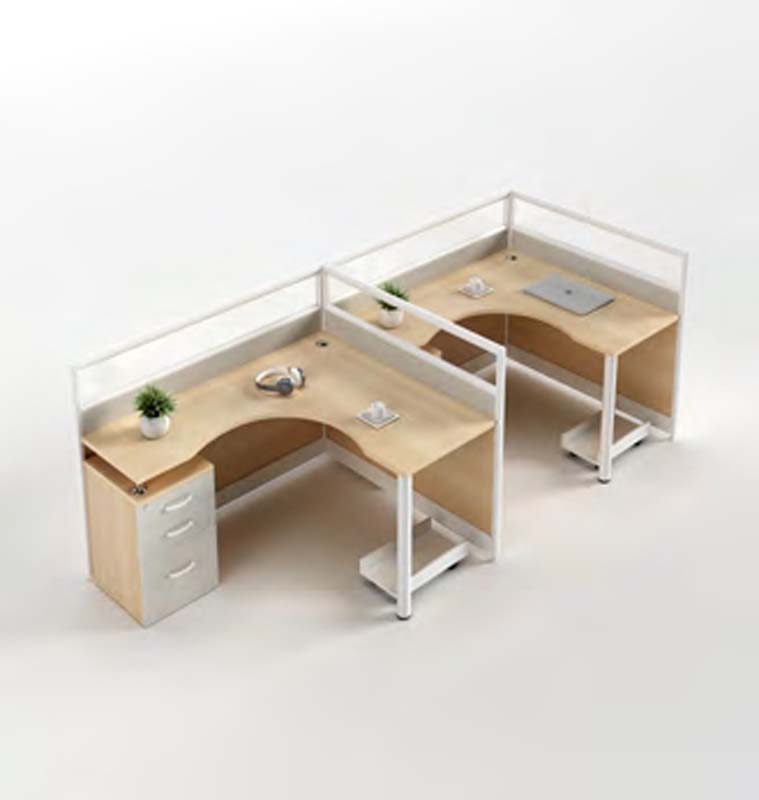

The Two-Person L-Shaped Partition Office Workstation with Mobile 3-Drawer Pedestal (model L-WS1600MP, unbranded) balances collaborative accessibility with individual work separation for commercial settings. Visually, the unit features a light maple melamine worktop finish paired with a crisp white steel frame, low-profile frosted semi-transparent privacy dividers, and smooth curved knee cutouts for a clean, modern aesthetic. Its connected L-shaped layout positions two adjacent work zones across a 2800 x 1600 x 1100 mm footprint, with each worktop arm extending 1600 mm at 700 mm depth, set to a standard 750 mm work surface height. Constructed for durable daily use, the workstation uses E1-grade melamine-faced MFC for worktops and the mobile pedestal body, finished with 2 mm thick PVC edge trim to protect against impact. The support structure relies on 1.2 mm thick white powder-coated steel tube legs, paired with frosted acrylic privacy dividers framed in white steel. The included 3-drawer pedestal sits on 50 mm nylon swivel casters, two of which lock for stable placement, and runs on 3-section full-extension steel ball-bearing slides rated for 50000 open-close cycles, with a central linked lock securing all drawers with a single key. ABS circular cable grommets feed cords to an under-desk cable tray, and adjustable leveling feet on each outer leg compensate for uneven floors. Curved knee cutouts provide 690 mm clearance and 600 mm width at the recess, centering leg room for extended seated comfort. Low semi-transparent dividers block direct line of sight between users to reduce distraction while preserving easy cross-seat communication, and the modular bracket-connected partition system supports layout reconfiguration as team needs shift. The mobile pedestal offers accessible storage for documents and supplies directly at each seating position. This workstation is suited for open-plan office staff zones, startup and co-working spaces, administrative departments, educational institution offices, small business back offices, call centers, and shared work zones, where it fits compact floor areas while delivering two fully functional work positions. The unit supports a 150 kg uniform static load per worktop, 15 kg per drawer, and 5 kg on the under-desk cable tray, with a scratch-resistant surface tested to 2N load over 300 cycles. When procuring, note that assembly requires 40 minutes per set, delivered across multiple cartons with a total packaged gross weight of 180 kg and 1 m³ packaging volume, allowing teams to plan for delivery access, on-site assembly time, and floor load capacity prior to installation.

Two-Person L-Shaped Partition Office Workstation with Mobile 3-Drawer Pedestal Specifications
