PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	6 users
Distributed work-surface static load	60 kg per seat
Total cluster static load capacity	360 kg
Pedestal drawer load per drawer	15 kg
Divider panel lateral stability load	30 kg per panel
net product weight	280 kg
Work-surface distributed loading area	1.32 sq m per seat
Recommended floor live load	2.5 kPa per occupied zone
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm walnut-look melamine-laminated particleboard with impact-resistant sealed edges
Edge banding	2 mm PVC edge banding on exposed desk edges
Privacy panels	30 mm composite panel core with charcoal-gray laminate or fabric facing
Upper screens	Framed slatted screen with horizontal translucent or white strips on a dark panel
Support structure	Powder-coated steel square-tube underframe and panel connector rails
Storage pedestals	Laminated wood-composite fixed pedestals with gray outer sides and walnut drawer fronts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Six-seat modular arrangement	Three back-to-back paired L-shaped stations create six independent directional work zones
Privacy and sight separation	Full-height divider junctions and 350 mm slatted upper screens separate adjacent users while retaining partial visibility
Under-desk storage support	Fixed pedestal units provide drawer or cabinet storage at selected workstations without reducing the curved knee opening
Cable and power routing provision	Horizontal panel rails and rear desk zones are specified for desk-mounted grommets and under-top cable trays; visible image does not show installed power modules.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging carton count	8 flat-packed cartons
Reference packed volume	2.10 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office deployment	Suitable for six-person administrative, back-office, or call-center teams where visual separation and shared floor space are required.
Procurement configuration	Use in grid layouts with 1400 mm circulation aisles and add under-desk cable trays, desktop power modules, and task chairs for complete occupancy.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety guidance	EN 527safety, strength, and durability requirements for office desks
Formaldehyde panel guidance	EN 13986 E1 classification for wood-based panels used in building and furniture applications
Surface wear guidance	EN 14322 decorative laminate testing for melamine-faced panel resistance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk durability guidance	ANSI/BIFMA X5.5 desk and tabletop strength and durability test protocol
Panel system guidance	ANSI/BIFMA X5.6 panel systems ergonomic, structural, and safety test protocol
Low-emission procurement guidance	ANSI/BIFMA e3 furniture sustainability credits, including formaldehyde and material documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission guidance	GB/T 39600 E1 limit for wood-based panel components
Office desk structural guidance	GB/T 3324 general technical requirements for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission guidance: GB/T 39600 E1 limit for wood-based panel components;
2. Office desk structural guidance: GB/T 3324 general technical requirements for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L6-PANEL-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L6-PANEL-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L6-PANEL-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

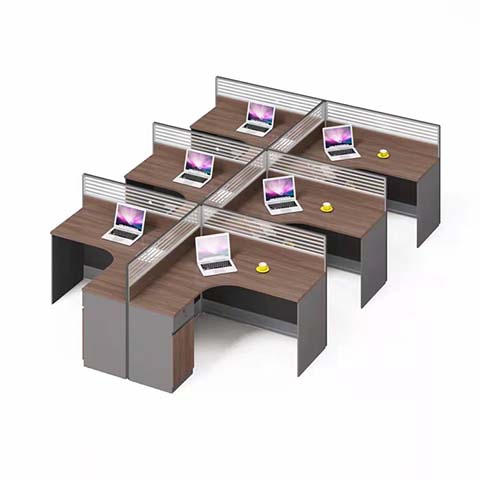

The Six-Person L-Shaped Panel Workstation Cluster is an unbranded office cubicle system designed for open-plan environments that need orderly seating, privacy, and efficient use of floor space. Model WS-L6-PANEL-WG arranges three back-to-back paired L-shaped stations to create six independent directional work zones. Its cluster form presents a structured angular layout, with walnut-look work surfaces contrasted by charcoal-gray divider panels and framed slatted upper screens. The horizontal translucent or white strips on the dark screens reduce direct sightlines while retaining partial visibility, giving the workstation a lighter visual character than fully enclosed panels. Construction combines panel-based screening with a durable steel support structure. Work surfaces use 25 mm walnut-look melamine-laminated particleboard with impact-resistant sealed edges and 2 mm PVC edge banding on exposed desk edges. Privacy panels feature a 30 mm composite core with charcoal-gray laminate or fabric facing, while the underframe and panel connector rails use powder-coated square-tube steel. Fixed laminated wood-composite pedestals have gray outer sides and walnut drawer fronts, coordinating with the desk finish while maintaining a neutral commercial appearance. Each main seat provides 680 mm high and 900 mm wide knee clearance, and selected positions include fixed drawer or cabinet storage that preserves the curved knee opening. The 350 mm slatted upper screens and full-height divider junctions separate adjacent users without creating a closed-cell feeling. For cable and power organization, horizontal panel rails and rear desk zones are configured for desk-mounted grommets and under-top cable trays. The cable opening is 80 mm in diameter, and the cable tray depth is 120 mm. Power modules are not shown as installed and should be specified separately when required. The system is suited to six-person administrative, back-office, and call-center teams, as well as residential commercial-style workspaces where multiple users require defined stations in one shared area. Its rated distributed work-surface static load is 60 kg per seat, with total cluster capacity of 360 kg; each pedestal drawer is rated for 15 kg, and divider panels accept 30 kg lateral stability load. Procurement planning should account for flat-packed delivery, assembly, and complementary items such as under-desk cable trays, desktop power modules, and six task chairs. Grid planning should provide 1400 mm circulation aisles. Buyers should review the listed packaging details before scheduling receiving and installation, as logistics information is presented across multiple packing references.

Six-Person L-Shaped Panel Workstation Cluster Specifications
