Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Pedestal footprint | 400 x 520 x 680 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worksurface distributed static load | 60 kg | |
|---|---|---|
| Pedestal top load | 30 kg | |
| Upper utility drawer load | 10 kg | |
| Lower filing storage load | 25 kg | |
| Recommended user capacity | 1 person | |
| Product net weight | 78 kg | |
| Floor loading | 40 kg/m2 | |
| Recommended warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface | 25 mm melamine-faced wood-composite board with PVC edge banding | |
|---|---|---|
| Pedestal panels | 18 mm melamine-faced composite board in walnut-brown and light gray | |
| Privacy screen fabric | Woven polyester fabric over panel core, light heather gray | |
| Screen panel core | Rigid composite tackable panel, 25 mm thick | |
| Structural frame | Powder-coated square steel or aluminum posts and rails, silver-gray finish | |
| Right support leg | 40 x 40 mm powder-coated metal square leg with welded top rail | |
| Modesty panels | 18 mm dark gray composite panels beneath both worktop runs | |
| Drawer lock | Keyed metal cam lock with two lock positions on upper drawer front | |
| Drawer runners | Side-mounted steel telescopic runners, 35 mm nominal width | |
| Leveling glides | 30 mm black nylon glides with threaded steel stems | |
| Cable grommet | 80 mm round plastic grommet with removable cap | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

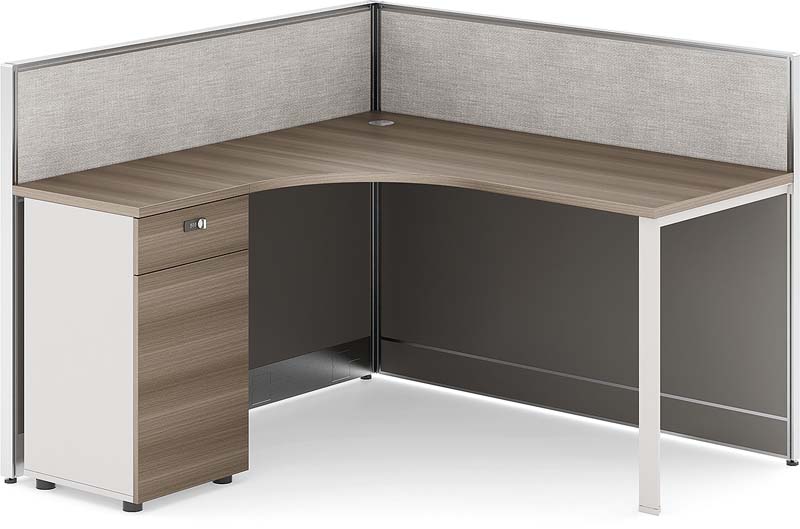

| Corner work layout | Two 1400 mm runs meet at a curved concave corner, providing primary work and secondary task zones | |
|---|---|---|
| Seated access | Central curved knee bay gives one user leg access between pedestal storage and exposed metal leg | |
| Privacy screening | Two rear fabric screens create an L-shaped visual barrier extending 450 mm above the worktop | |
| Cable management | One 80 mm rear-corner grommet routes monitor and power cables from desktop to under-desk zone | |
| Under-desk screening | Dark modesty panels below both runs conceal the leg area and reduce cross-aisle visibility | |
| Lockable storage | Keyed upper drawer provides secured small-item storage, with a tall lower compartment for files or personal effects | |
| Floor leveling | Threaded glides at exposed support points compensate for minor floor unevenness | |
| Fixed installation | Pedestal, leg, top, and screens join as a non-folding workstation intended for permanent office layout | |
| Modular expansion | Square post-and-rail screen frame can align with adjacent same-height workstation panels | |
| Storage access orientation | Pedestal drawers face the seated user on the left side of the knee opening | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 1480 x 680 x 120 mm largest flat pack; total packed volume 0.34 m3 | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suits individual bench-style clusters where 450 mm fabric screens reduce visual distraction without full enclosure | |
|---|---|---|
| Administrative workstation | Provides a curved primary work area plus fixed personal storage for daily paperwork and computer tasks | |
| Call-center or service desk | Compact one-person footprint supports monitor, keyboard, phone, and locked personal storage | |
| Manager workstation | Two-run surface allows a laptop or monitor on one side and documents on the other | |
| Project-based team area | Post-and-rail screen construction can be arranged in connected clusters with neighboring same-height panels | |
| Reception back-office station | Curved entry edge and under-desk modesty panels suit seated processing areas requiring neat cable and leg concealment |
EU Market Access Requirements* EN Standards
| EN 527-1 office desk safety | Safety, strength, and durability reference for office work surfaces and under-desk clearances | |
|---|---|---|
| EN 527-2 mechanical test methods | Strength, durability, and stability test reference for the top, pedestal, and leg assembly | |
| EN 1021-1 fabric ignition resistance | Cigarette ignition test reference for upholstered screen fabric if fire-rated fabric is specified | |
| EN 717-1 panel emission | Formaldehyde emission reference for wood-based panels in enclosed office interiors |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324 dimensional and structural suitability | General technical specification for wooden furniture applicable to cabinet and desktop dimensional acceptance | |
|---|---|---|
| GB/T 3325 metal furniture suitability | Applicable to metal load-bearing legs, rails, and frame inspection if supplied as commercial office furniture | |
| GB 18580 emission testing | Formaldehyde emission requirement applicable to wood-composite panels used in desktop and pedestal | |
| GB/T 10357.6 structural testing | Horizontal and vertical load test reference for single-pedestal-supported office desks |
This product must meet the following technical requirements: 1. GB/T 3324 dimensional and structural suitability: General technical specification for wooden furniture applicable to cabinet and desktop dimensional acceptance; 2. GB/T 3325 metal furniture suitability: Applicable to metal load-bearing legs, rails, and frame inspection if supplied as commercial office furniture; 3. GB 18580 emission testing: Formaldehyde emission requirement applicable to wood-composite panels used in desktop and pedestal; 4. GB/T 10357.6 structural testing: Horizontal and vertical load test reference for single-pedestal-supported office desks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
