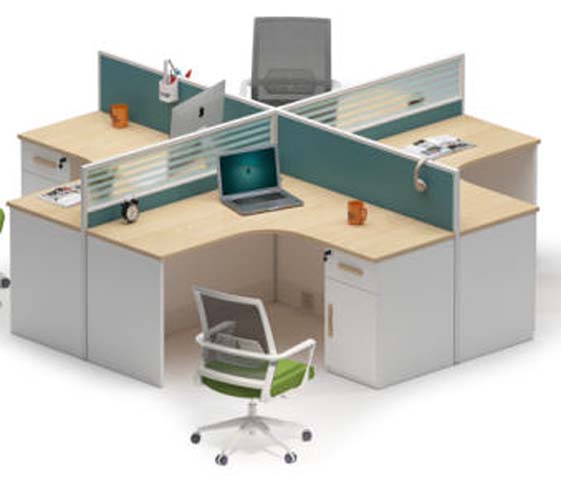

Cross-Shaped 4-Person Office Cubicle Workstation with L-Shaped Desks and Under-Desk Storage (model WS-CR4-L02) is listed under L-Shaped Office Desk, with overall dimensions of 3023 × 3023 × 1150 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Modular,office,furniture,4-person,cross,layout,partitioned,cubicle,L-shaped,work,surfaces,integrated,under-desk,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 3023 x 3023 x 1150 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Individual L-shaped work surface | 1524 x 610 mm main section + 914 x 610 mm return section | |
| Work surface thickness | 25 mm | |
| Partition height above floor | 1150 mm | |
| Partition panel thickness | 30 mm | |
| Knee clearance height under desk | 650 mm | |
| Knee clearance depth | 600 mm | |
| Under-desk pedestal unit dimensions | 400 x 600 x 700 mm per unit | |
| Drawer inner height | 120 mm | |
| Lower solid partition panel height | 700 mm | |
| Upper frosted translucent screen height | 400 mm | |
| Pedestal cabinet door height | 580 mm | |
| Curved desk corner radius | 150 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per work surface static load capacity | 91 kg | |
|---|---|---|
| Total workstation net weight | 260 kg | |
| Recommended user weight capacity per seat | 136 kg | |
| Formaldehyde emission grade for wood panels | E1 | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Structural warranty period | 5 years | |
| Standard available finish options | 8 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E1-grade particleboard core with thermally fused light oak melamine finish, impact-resistant edges | |
|---|---|---|
| Lower partition panels | 18mm particleboard core with teal matte laminate finish, metal-framed edge trim | |
| Upper partition screens | 9mm frosted translucent acrylic/laminate slatted panels set in white powder-coated aluminum frames | |
| Storage pedestals | 15mm E1 particleboard with white melamine finish, integrated metal drawer slides | |
| Structural supports | 1.2mm thick powder-coated square steel legs and partition connector brackets, anti-rust coating | |
| Hardware components | Zinc-alloy drawer pulls, keyed cam locks for storage, plastic cable grommets, steel corner connection brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular assembly | Knock-down construction with pre-installed metal corner connectors, cross-layout extension compatible | |
|---|---|---|
| Cable management | 60mm diameter desk grommets at each work surface, central partition wire channel for power/data routing | |
| Storage configuration | 1 lockable drawer + 1 enclosed cabinet per workstation, suitable for office supplies and personal items | |
| Partition privacy | Two-tone screens block direct line of sight between adjacent users while allowing overhead light transmission |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | 4 dedicated seated work positions for team-based departments with visual privacy | |
|---|---|---|
| Small and medium business work zones | Compact footprint fits high-density seating without dedicated private offices |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to desk structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and safety requirements, applicable to ergonomic clearance validation | |
| EN 13986:2004 | Wood-based panels for construction use, applicable to panel material performance | |
| EN 1335-1:2020 | Office chair dimensional coordination, referenced for seated clearance compatibility |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to under-desk pedestal and drawer performance | |
| ANSI/BIFMA M7.1-2020 | Formaldehyde emission measurement standard, applicable to panel air quality verification |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk top and panel structural strength | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks and workstations, applicable to load and stability testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade panel compliance verification | |
| GB/T 4897.3-2003 | Performance requirements for particleboard for furniture use, applicable to core panel material |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk top and panel structural strength; 2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to load and stability testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade panel compliance verification; 4. GB/T 4897.3-2003: Performance requirements for particleboard for furniture use, applicable to core panel material; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
