| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed worktop static load | 80 kg per user position | |
|---|---|---|
| Pedestal drawer load | 15 kg | |
| Open shelf load | 12 kg per shelf | |
| Recommended users | 2 persons | |
| Net weight reference | 145 kg | |
| Floor contact points | 10 leveling feet | |
| Daily seating capacity | 2 seated workers | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm melamine-faced particleboard with light woodgrain finish | |
|---|---|---|
| Cabinet carcass | 18 mm melamine-faced particleboard in white and light oak finish | |
| Drawer front | Melamine-faced board with flush recessed pull and small label holder | |
| Open shelf | White melamine-faced horizontal shelf with edge banding | |
| Privacy divider | Grey woven fabric over composite core with aluminium or steel trim | |
| Structural posts | Light grey powder-coated rectangular metal posts | |
| Leg frame | White powder-coated steel rectangular legs and support rails | |
| Modesty panel | Light grey board panel with horizontal trim line | |
| Leveling feet | Injection-moulded nylon or PP feet with steel threaded stems | |
| Edge protection | PVC or ABS edge banding on worktop and cabinet edges | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

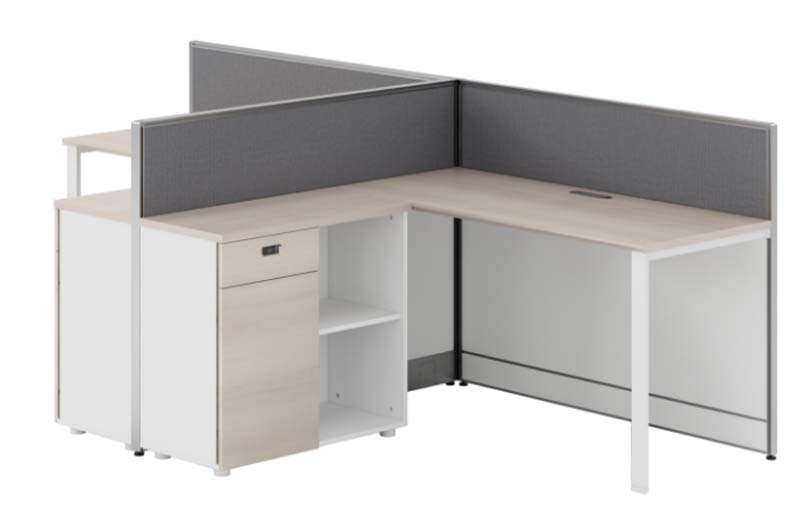

| Workstation configuration | Back-to-back two-person L-shaped cluster providing one independent corner desk per user | |
|---|---|---|
| Privacy separation | Low fabric screens divide adjacent sightlines while retaining seated collaboration visibility | |
| Storage support | Integrated pedestal combines one shallow drawer, one door/drawer face, and two open shelf bays | |
| Cable management | One oval desktop cable grommet is fitted on the right work surface for monitor and power leads | |
| Under-desk screening | Full-width modesty panels conceal cables and leg space below the rear worktop edge | |
| Floor leveling | Threaded circular feet compensate for uneven office floors at cabinet and leg locations | |
| Modular extension | Post-and-panel frame allows additional workstation modules to connect along divider rails | |
| Seated access | Central open knee bay keeps the chair position clear of drawer and shelf storage | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton dimensions | 1500 x 700 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Provides two separated L-shaped seats for clerical, administrative, or account-management teams | |
|---|---|---|
| Call center or shared service area | Low dividers reduce visual distraction while supervisors retain sightlines across the cluster | |
| Small branch office | Combines desk, drawer storage, open shelving, and modesty panels in one compact footprint | |
| Project-based workstation neighborhood | Modular post construction supports repeat clusters linked in rows or back-to-back groups | |
| Hoteling or administrative pool | Each user position can support a monitor, notebook, telephone, and personal document storage |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
