Automatic mm / inch conversion · Core engineering specifications
| overall footprint | 2830 x 2830 x 1100 mm | |
|---|---|---|
| per-station work surface | 1200 x 600 mm | |
| desktop working height | 750 mm | |
| partition total height | 1100 mm | |
| 3-drawer pedestal dimensions | 400 x 500 x 600 mm | |
| under-desk knee clearance height | 650 mm | |
| knee clearance width per station | 600 mm | |
| partition panel thickness | 30 mm | |
| desktop panel thickness | 25 mm | |
| CPU caddy dimensions | 250 x 500 x 100 mm | |
| desktop cable grommet diameter | 60 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| total product weight | 210 kg | |
|---|---|---|
| desktop static load capacity per station | 100 kg | |
| drawer static load per drawer | 25 kg | |
| applicable user count | 4 | |
| desktop surface abrasion resistance | 2000 cycles | |
| product warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| desktop substrate | E1-grade melamine-faced particleboard, light wood grain finish | |
|---|---|---|
| desktop edge banding | 2.0 mm PVC same-color edge banding | |
| partition frame | 1.8 mm thick aluminum alloy with white electrostatic powder coating | |
| upper partition panel | Translucent frosted acrylic panel | |
| lower partition panel | 30 mm thick MDF core with beige fabric-wrapped finish | |
| drawer pedestal | 16 mm thick melamine-faced particleboard with integrated curved white handles | |
| structural supports | 1.2 mm thick powder-coated square steel tubing | |
| CPU caddy | 0.8 mm thick steel frame with black swivel casters | |
| hardware components | Corrosion-resistant zinc-plated steel screws and connectors | |
| cable management components | ABS plastic wire grommets and internal steel raceways | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features

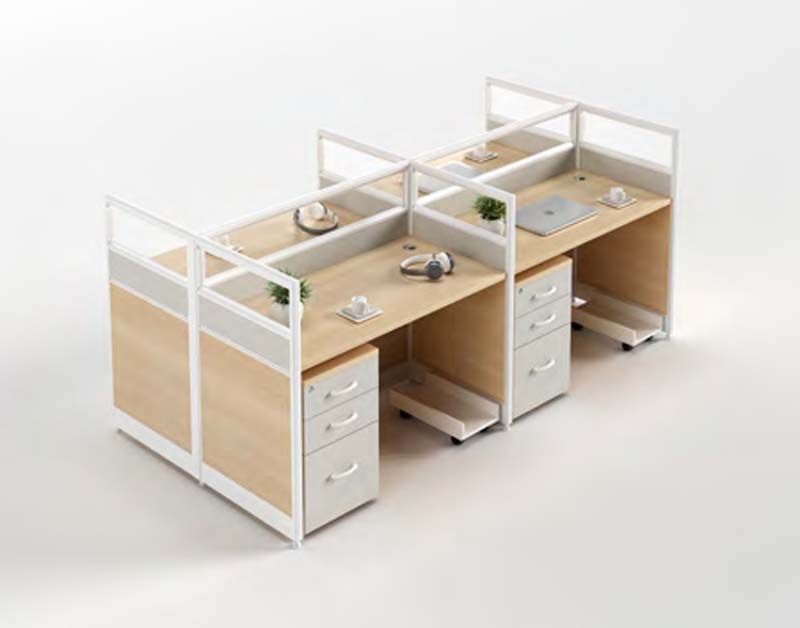

| modular layout configuration | Cross-shaped 4-station layout, reconfigurable to T/F/I layouts via frame connection | |
|---|---|---|
| pedestal storage function | 3 lockable drawers per station, including 1 stationery tray drawer and 2 file drawers | |
| CPU support function | Retractable rolling caddy under each desk, slides out for computer maintenance | |
| cable management function | Dual desktop grommets per station plus internal partition raceways | |
| privacy partition function | 1100 mm half-height panels block direct line of sight between adjacent seated users | |
| adjustable foot function | Threaded adjustable feet on all frame bases, 15 mm adjustment range | |
| drawer operation | Full-extension ball-bearing drawer slides, 400 mm travel | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| open-plan call center offices | Provides individual divided workspaces with noise-reducing partitions for focused phone work | |
|---|---|---|
| back-office administration departments | Integrated storage and cable management supports daily paperwork and computer tasks | |
| startup and co-working spaces | Modular cross layout maximizes 4-person capacity in small open office footprints | |
| government and enterprise staff areas | Durable commercial-grade construction meets high-frequency daily use requirements | |
| temporary project team work areas | Knock-down design allows fast relocation and reconfiguration for changing team sizes |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to desk structure | |
|---|---|---|
| EN 1335-1:2020 | Office furniture workstations dimensional safety requirements, applicable to clearances | |
| EN 1023-2:2000 | Office storage furniture safety requirements, applicable to drawer pedestals |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2024 | General technical requirements for wooden furniture, applicable to panel desk components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to board substrates | |
| GB/T 15102-2017 | Specification for impregnated thermosetting laminate for furniture, applicable to desktop finish | |
| GB 18584-2024 | Limit of harmful substances in wooden furniture, applicable to finished product |
This product must meet the following technical requirements: 1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to panel desk components; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to board substrates; 3. GB/T 15102-2017: Specification for impregnated thermosetting laminate for furniture, applicable to desktop finish; 4. GB 18584-2024: Limit of harmful substances in wooden furniture, applicable to finished product; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
