PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2400 × 1100 mm
Overall assembled footprint	2800 x 2400 x 1100 mm
Work surface height	750 mm
Work surface thickness	25 mm
Partition divider height	350 mm above work surface
Individual L-shaped work surface width	1200 mm per arm
Individual work surface depth	600 mm
Seated knee clearance height	650 mm
Seated knee clearance width at curved opening	700 mm
3-drawer pedestal dimensions	400 x 500 x 600 mm
CPU shelf dimensions	250 x 400 x 150 mm
Cable grommet diameter	60 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static desktop load capacity	400 kg (100kg per work position)
Pedestal drawer static load per drawer	25 kg
Surface abrasion resistance	2000 cycles
Surface water and stain resistance	Level 2 (sealed non-porous laminate)
Recommended maximum user weight per position	120 kg
Product warranty period	3 years
Available color options	2 (light wood/white frame)
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop panel	25mm thick E1 grade particleboard with light wood melamine laminate
Desktop edge treatment	2mm thick PVC edge banding, heat-sealed for impact resistance
Partition divider frame	20 x 40mm rectangular steel tube with white powder-coated finish
Partition infill panel	White laminated MDF panel in upper frame opening
Pedestal drawer bodies	18mm thick E1 grade particleboard with white melamine finish
Drawer slides	Full extension cold-rolled steel ball-bearing slides
CPU shelf	15mm thick laminated particleboard with white steel mounting brackets
Adjustable foot glides	Nylon base with 10mm threaded steel adjustment stem
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	2x2 cross configuration providing 4 independent outward-facing L-shaped work positions
Seating access	Curved concave front edge at each position for unobstructed knee clearance when seated
Storage pedestals	3-drawer fixed pedestal at each outer L-corner for office supplies and file storage
CPU storage	Pull-out open shelf at inner desk leg for desktop computer tower placement
Cable management	60mm diameter grommet at each work position for routing monitor and peripheral cables
Modular connectivity	Pre-drilled connecting hardware to align cross dividers and desk panels for assembly
Leveling adjustment	Threaded foot glides to compensate for uneven floor surfaces across the full footprint
Partition separation	Low frame dividers to define individual work zones without blocking overhead light
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office areas	Designed for 4-person team clusters in corporate, government, or co-working open offices
Back office and administrative spaces	Suitable for admin, data entry, and general office staff daily long-duration seated work
Startup and small business offices	Cost-effective modular solution that fits standard open floor plate dimensions
Staff team work zones	Low dividers provide personal work space while maintaining team visibility and communication
Recommended configuration	Pair with ergonomic office chairs with 520 mm seat height for optimal seated posture

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to structural performance
EN 527-2:2002	Office work tables dimensional ergonomic requirements, applicable to work height and clearance
EN 13986:2004	Wood-based panels for construction, applicable to panel structural performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to static load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to pedestal drawer load and cycle testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to panel construction and finish
GB/T 3327-2016	Performance requirements for office desks and workstations, applicable to load and stability
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to E1 grade particleboard

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to panel construction and finish;
2. GB/T 3327-2016: Performance requirements for office desks and workstations, applicable to load and stability;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade particleboard;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-4P-CR-LTWD-2824

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-4P-CR-LTWD-2824

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-4P-CR-LTWD-2824Open Export Tool

Quick Actions

Post an RFQ

Product Description

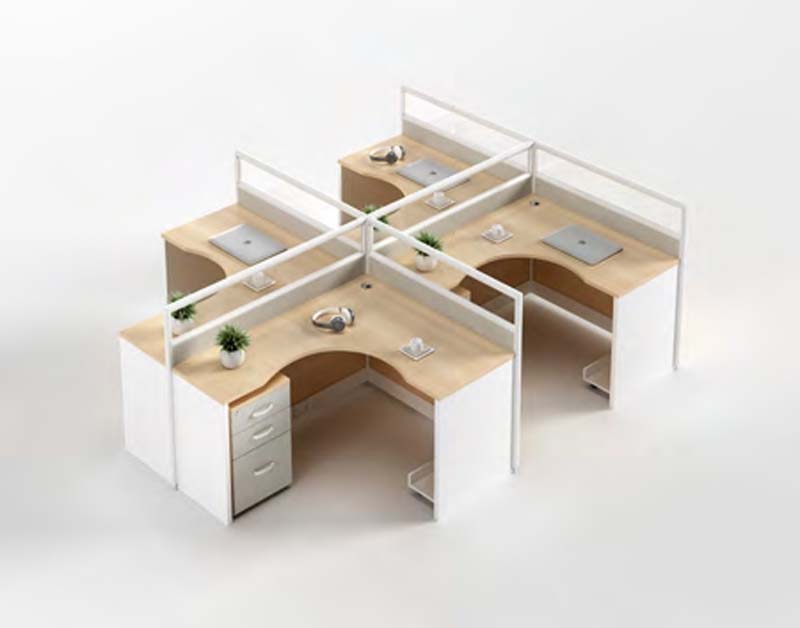

The 4-Person Cross Layout Office Cubicle Workstation (model CUB-4P-CR-LTWD-2824) is an unbranded modular workspace solution structured in a 2x2 cross configuration that delivers four independent outward-facing L-shaped work positions. The design features low partition dividers positioned above the work surface, paired with a light wood finish on work surfaces and crisp white powder-coated steel frames, creating a balanced visual profile that supports open visual connection between adjacent team members while defining distinct personal work zones. Each work position includes a curved concave front edge shaped for unobstructed seated access, avoiding sharp corners that can restrict movement at the knee space. Each work surface is constructed from 25mm thick E1 grade particleboard finished with light wood-grain melamine laminate, edged with heat-sealed 2mm PVC banding to resist impact damage. Low divider frames are built from rectangular steel tube with a durable white powder-coated finish, infilled with white laminated MDF panels. Fixed 3-drawer storage pedestals are integrated at each outer corner of the L-shaped positions, with drawer bodies made from E1 grade particleboard with white melamine finish, mounted on full-extension cold-rolled steel ball-bearing slides. Each position includes a pull-out open CPU shelf mounted on white steel brackets, plus a 60mm cable grommet to route monitor and peripheral cords neatly away from work areas. Threaded nylon foot glides allow fine adjustment to level the full unit across uneven floor surfaces, while pre-drilled connecting hardware aligns cross dividers and desk panels for straightforward assembly. The workstation holds a total static desktop load of 400kg, with 100kg capacity per individual work position, and each drawer supports 25kg of static load. The sealed non-porous laminate surface delivers Level 2 water and stain resistance, with abrasion resistance rated for 2000 cycles to support regular daily use. The unit is suited for open plan corporate, government, or co-working offices arranged in 4-person team clusters, as well as back office administrative zones, data entry spaces, and startup or small business offices that require cost-effective modular setups that fit standard open floor plate dimensions. Its low divider height keeps sightlines open to support team communication while maintaining defined personal work areas, and the configuration pairs optimally with ergonomic office chairs featuring a 520mm seat height to support proper posture during long-duration seated work. For procurement planning, note the unit ships in two cartons per set, with a packaged gross weight of 120kg; assembly requires 40 minutes per set. The product is covered by a 3-year warranty, and is offered in a single color pairing of light wood work surfaces with white frames. Buyers should account for required clearances around the unit footprint to support seated access and movement between workstations, and confirm floor surface conditions to leverage the integrated leveling glides for stable installation.

4-Person Cross Layout Office Cubicle Workstation with Curved Knee Openings and Storage Pedestals Specifications
