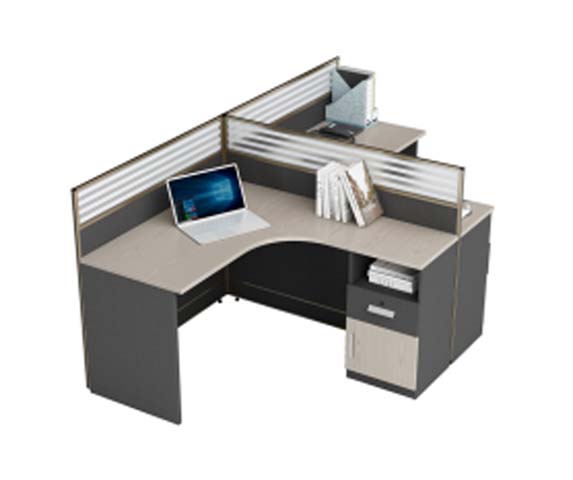

Product supplierL-Shaped Corner Modular Office Cubicle Workstation with Integrated Storage Pedestal, E1 grade particleboard core, melamine laminate finish, PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1400 × 1400 × 1200 mm | |
|---|---|---|
| Overall workstation footprint | 1400 x 1400 x 1200 mm | |
| Desktop surface height | 750 mm | |
| Desktop panel thickness | 25 mm | |
| Partition panel height above floor | 1200 mm | |
| Partition panel thickness | 32 mm | |
| Knee clearance height under desktop | 680 mm | |
| Knee opening width at curved front | 800 mm | |
| Integrated storage pedestal dimensions | 400 x 550 x 650 mm | |
| Drawer internal usable height | 150 mm | |
| Lower cabinet internal usable height | 450 mm | |
| Modesty panel height | 400 mm | |
| Frosted slat partition strip height | 400 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Uniform desktop static load capacity | 300 kg | |
|---|---|---|
| Net weight per single workstation | 120 kg | |
| Recommended user weight capacity | 136 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Partition acoustic dampening rating | 25 dB | |
| Standard warranty period | 5 years | |
| Available finish/color options | 60 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | E1 grade particleboard core, melamine laminate finish, PVC edge banding | |
|---|---|---|
| Modesty and side panels | 18mm thick E1 grade MFC, matching two-tone grey laminate finish | |
| Partition frame | Anodized aluminum alloy extrusion, corner connection brackets | |
| Upper partition slats | Frosted semi-translucent acrylic, horizontal slatted design | |
| Lower partition panels | 16mm thick MFC with fabric laminate tack surface | |
| Storage pedestal cabinet body | 18mm thick E1 grade MFC, matching laminate finish, PVC edge sealing | |
| Drawer and door hardware | Cold-rolled steel, zinc-plated hinges and ball-bearing slides, integrated lock | |
| Leveling feet | Nylon base with steel threaded stem, 20mm adjustment range | |
| Connection hardware | Steel cam lock fasteners, pre-drilled assembly points | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular expandability | Pre-configured connector brackets allow linking to adjacent workstations for multi-seat layouts | |
|---|---|---|
| Cable management | Undersurface cable raceway and desktop grommet routes power and data cords out of sight | |
| Drawer operation | Three-section ball-bearing slides provide full extension, integrated key lock secures contents | |
| Cabinet storage | Single hinged door with magnetic catch provides enclosed storage for personal items or files | |
| Privacy partition function | Solid lower section blocks direct sight lines, frosted upper slats transmit natural light | |
| Leveling adjustment | Threaded nylon feet adjust by 20mm to compensate for uneven office flooring | |
| Tackable partition surface | Fabric-covered lower partition panels accept push pins for posting notes and documents | |
| Ergonomic knee access | Curved front desktop cutout eliminates sharp corners, provides 800mm wide leg entry | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Provides individual seated work zones with balanced privacy and light transmission | |
|---|---|---|
| Corporate staff workspaces | Suitable for administrative, finance and operational employee daily computer work | |
| Startup and co-working spaces | Modular design allows reconfiguration of multi-seat layouts as team size changes | |
| Government and institutional offices | Durable commercial construction supports high-traffic long-term daily use | |
| Call center and back-office teams | 1200mm partition height reduces cross-talk distraction between adjacent seats | |
| Small business office layouts | Integrated storage eliminates need for separate filing cabinets to save floor space |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: safety and strength requirements for work surfaces | |
|---|---|---|
| EN 717-1:2004 | Wood-based panel formaldehyde emission determination for indoor use | |
| EN 14073-2:2004 | Office storage furniture: safety and strength requirements for pedestals |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Office chair and table surface load and stability performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Office storage cabinets and pedestals durability and safety standard |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktop and cabinet components | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard specifications for furniture-grade structural use for work surfaces | |
| GB 18580-2017 | Formaldehyde emission limit for engineered wood products, E1 grade requirement | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for table static load and stability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and cabinet components; 2. GB/T 4897.3-2003: Particleboard specifications for furniture-grade structural use for work surfaces; 3. GB 18580-2017: Formaldehyde emission limit for engineered wood products, E1 grade requirement; 4. GB/T 10357.1-2013: Furniture mechanical performance test for table static load and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
