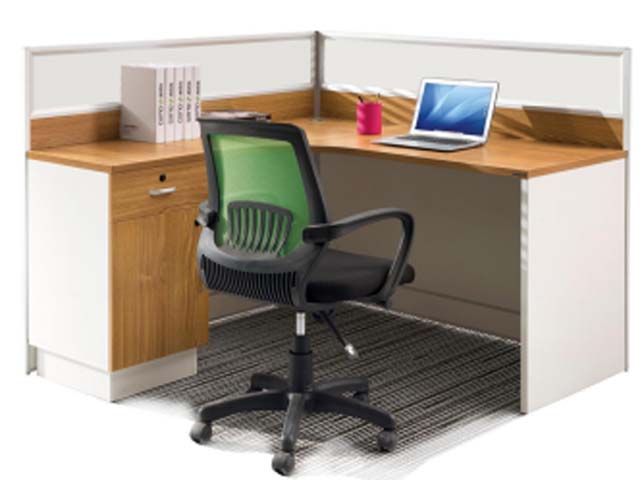

Product supplierSingle-Person L-Shaped Panel Workstation with Mobile Task Chair, 25 mm wood-grain high-pressure laminate over particleboard with PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Task chair overall width | 600 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Workstation static top load | 80 kg | |
|---|---|---|
| Pedestal drawer load | 25 kg | |
| Lower cabinet shelf load | 30 kg | |
| Partition panel lateral stability load | 30 kg | |
| Workstation net weight reference | 78 kg | |
| Task chair rated user weight | 120 kg | |
| Single occupancy capacity | 1 person | |
| Task chair seating duration | 6 hours/day | |
| Suggested warranty | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-grain high-pressure laminate over particleboard with PVC edge banding | |
|---|---|---|
| Pedestal and end panels | 18 mm white and wood-grain melamine-faced particleboard with white plinth | |
| Partition frame | 40 x 40 mm light-gray powder-coated steel or aluminum extrusions with square corner post | |
| Partition infill | 32 mm light-gray fabric-faced or matte board panel over wood-composite core | |
| Modesty band | Wood-grain laminated board attached below the desktop and side screens | |
| Task chair upholstery | Black woven polyester seat fabric with green breathable mesh back insert |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy screening | Two-sided L-shaped 1100 mm partition creates one seated workstation with a 420 mm upper sight barrier | |
|---|---|---|
| Integrated storage | Left pedestal provides one lockable shallow drawer above one vertical door compartment for personal and file storage | |
| Task chair adjustment | Swivel seat with 100 mm gas-lift height travel and lever-operated recline/lock mechanism for general desk work | |
| Mobility and floor use | Five-star chair base uses five 50 mm twin-wheel nylon casters for movement on carpet tiles or hard floors |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Pedestal carton size | 680 x 570 x 180 mm | |
|---|---|---|
| Chair carton size | 620 x 590 x 320 mm | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for one staff member in sales, admin or clerical areas where low visual privacy and compact storage are required. | |
|---|---|---|
| Training or shared service center | Can be arranged in rows or clusters for standardized 1-person work positions with mobile task seating. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture safety recommendation | EN 527:2002 | |
|---|---|---|
| Office chair safety recommendation | EN 1335:2018 | |
| Office chair dimensional recommendation | EN 1335:2020 | |
| Fabric upholstery recommendation | EN 14465:2003 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk performance recommendation | ANSI/BIFMA X2021 | |
|---|---|---|
| Task chair performance recommendation | ANSI/BIFMA X2017 | |
| Panel system recommendation | ANSI/BIFMA X2022 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission recommendation | GB/T 39600E1 | |
|---|---|---|
| Furniture structural safety recommendation | GB/T 3324 | |
| Office chair safety recommendation | GB/T 3326and GB/T 10357.3 |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission recommendation: GB/T 39600E1; 2. Furniture structural safety recommendation: GB/T 3324; 3. Office chair safety recommendation: GB/T 3326and GB/T 10357.3; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
