PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	4 persons
Per-workstation distributed load	80 kg
Pedestal drawer load	15 kg
Lower cabinet shelf load	20 kg
Workstation net weight	260 kg
Task chair weight capacity	120 kg
Modesty and partition stability load	30 kg per partition run
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain high-pressure laminate panel with sealed edge banding
Storage cabinets	White melamine-faced wood-composite panels with matching plinth bases
Drawer and door fronts	Oak-grain laminate panel with curved silver pull handles and separate keyholes
Partition infill	Light gray fabric or laminate-faced privacy panel with silver aluminum perimeter frame
Structural frame	Silver aluminum or powder-coated steel extrusions connecting partition panels at the central cross joint
Modesty panels	Rigid gray composite panels beneath the work surface

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation configuration	Four identical L-shaped work positions share a central cross partition and face outward
Privacy and screening	1200 mm high partitions separate adjacent monitors and work zones while retaining sightlines above the panel
Storage arrangement	Each position includes fixed pedestal storage with one upper drawer and one lower lockable door compartment
Cable management	A 60 mm round grommet at the inner corner routes laptop and power cables below the work surface

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Master carton dimensions	2400 x 760 x 180 mm for the largest panel carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four-person clerical, administrative or customer-service teams requiring visual separation and personal storage
Procurement planning	Use as a repeatable cluster for call centers, government service halls, or back-office zones; chairs shown should be quoted as included or separate

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CRS4-OAK-WHT-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CRS4-OAK-WHT-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CRS4-OAK-WHT-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

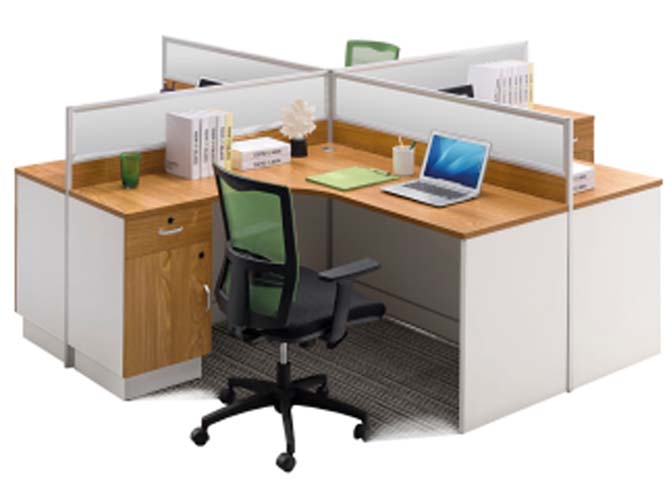

The Four-Person Cross-Shaped Office Workstation is an unbranded clustered desk system designed for teams that need individual privacy without losing the openness of a shared workspace. Model WS-CRS4-OAK-WHT-2800 arranges four identical L-shaped work positions around a central cross partition, with each position facing outward. The cross layout creates four defined zones, while the 1200 mm high light gray partitions separate adjacent monitors and work areas and preserve sightlines above the panels. Oak-grain laminate on drawer and door fronts is paired with white storage cabinets, silver framing, gray modesty panels, and wood-grain laminate work surfaces for a coordinated office appearance. Each work surface uses a 25 mm wood-grain high-pressure laminate panel with sealed edge banding and a finished top thickness of 50 mm. Privacy panels are available with light gray fabric or laminate infill set in a silver aluminum perimeter frame, and the central structure uses silver aluminum or powder-coated steel extrusions that connect the partition panels at the cross joint. Rigid gray composite modesty panels sit beneath the work surfaces. The support section has an 80 mm main section with a 2 mm metal wall, and each main seat provides 680 mm high and 900 mm wide knee clearance. Practical features are integrated into each position. Fixed pedestal storage includes one upper drawer and one lower lockable door compartment, with curved silver pull handles and separate keyholes. White melamine-faced wood-composite cabinets rest on matching plinth bases. Cable management is provided by a 60 mm round grommet at each inner corner, routing laptop and power cables below the surface; the listed cable opening size is 80 mm diameter, with a cable tray depth of 120 mm. Mesh swivel task chairs shown with the workstation suit standard desk use. The system supports a distributed load of 80 kg per workstation, 15 kg per pedestal drawer, 20 kg per lower cabinet shelf, and 30 kg per partition run for modesty and partition stability. The task chair weight capacity is 120 kg, and the workstation net weight is 260 kg. It is appropriate for open-plan offices housing four-person clerical, administrative, or customer-service teams, and can be repeated as a standardized cluster in call centers, government service halls, and back-office zones. Procurement teams should confirm chair inclusion in the quotation, plan for four cartons per set with a packaged gross weight of 180 kg and packaging volume of 1 m³, and allow 40 minutes for assembly.

Four-Person Cross-Shaped Office Workstation with Partitions and Under-Desk Pedestals Specifications
