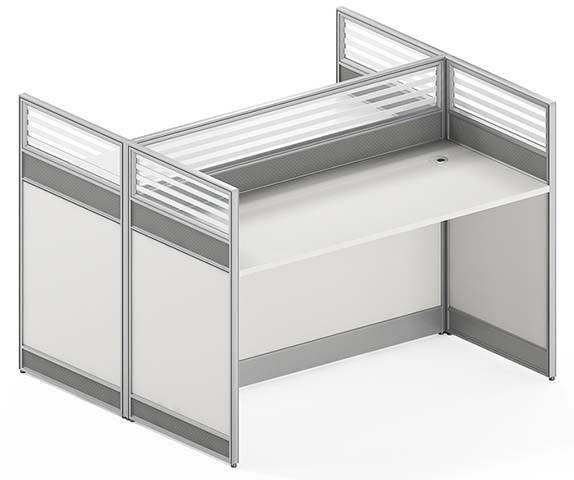

2-Seat Linear Modular Office Cubicle Workstation with Frosted Upper Partition Panels (model CUB-2S-FR1200) is listed under L-Shaped Office Desk, with overall dimensions of 2400 × 610 × 1219 mm, a net weight of 75 kg and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Partial-height,privacy,partition,aluminum-framed,modular,construction,integrated,cable,management,adjustable,leveling,feet. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit net weight | 75 kg | |
|---|---|---|
| Work surface static load capacity per seat | 120 kg | |
| Frame structural durability cycle rating | 100000 cycles | |
| Work surface scratch resistance | 2000 revolutions | |
| Leveling foot adjustment range | 15 mm | |
| Standard commercial product warranty | 3 years | |
| Available finish/color options | 100 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | E0 grade melamine-faced particleboard, scratch and water resistant matte finish | |
|---|---|---|
| Partition frame | Powder-coated silver extruded aluminum alloy, rigid modular connection profile | |
| Upper partition section | Frosted semi-translucent acrylic or tempered glass panel, light-transmitting privacy layer | |
| Lower partition section | Solid matte light gray laminate panel, seated sightline privacy barrier | |
| Worktop edge protection | Machine-pressed 2mm PVC edge banding, anti-delamination sealed edge | |
| Base leveling feet | Reinforced nylon adjustable glide feet, non-marking floor contact pad |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Circular desktop cable grommet per seat, compatible with under-desk wire tray accessories | |
|---|---|---|
| Leveling adjustment | Base glide feet rotate to adjust unit height and level on uneven floors | |
| Modular reconfiguration | Knock-down aluminum frame connection system supports extension to 4/6/8 seat layouts | |
| Privacy function | Partial-height partitions block seated sightlines while frosted upper sections transmit ambient light |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office space | Suitable for call centers, admin departments, and general staff task work areas | |
|---|---|---|
| Commercial co-working space | Supports flexible team layouts that can be reconfigured as seating needs change |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to work surface load testing | |
|---|---|---|
| EN 1335-1:2020 | Office furniture office work chair dimensional coordination, applicable to knee clearance sizing | |
| EN 1022:2019 | Furniture seating and table stability test method, applicable to workstation stability validation |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to work surface load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.6-2022 | Panel systems performance standard, applicable to partition framing and connection testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to worktop and panel components | |
|---|---|---|
| GB/T 3327-2016 | Test methods for stability of office furniture, applicable to freestanding workstation structure | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, applicable to MFC/particleboard components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to worktop and panel components; 2. GB/T 3327-2016: Test methods for stability of office furniture, applicable to freestanding workstation structure; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to MFC/particleboard components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
