Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user capacity | 1 receptionist | |
|---|---|---|
| Worktop distributed load | 80 kg | |
| Drawer static load | 25 kg | |
| Open shelf load per level | 15 kg | |
| Mobile/CPU compartment load | 20 kg | |
| Product net weight | 135 kg | |
| Panel structural grade | E1-class wood-composite substrate recommendation | |
| Warranty duration | 5 years | |
| Color option count | 3 colorways | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surfaces | Melamine-faced wood-composite panel with walnut grain | |
|---|---|---|
| White cabinet panels | Warm-white melamine-faced composite panels | |
| Dark lower panels | Dark gray or charcoal melamine-faced panels | |
| Panel edge banding | PVC or ABS edge banding in matching white, gray and woodgrain colors | |
| Privacy screen | Ribbed translucent acrylic or polycarbonate sheet in a gray metal frame | |
| Screen frame | Gray powder-coated aluminum or steel extrusions | |
| Structural supports | Gray metal vertical posts and panel support rails | |
| Drawer box and front | Woodgrain melamine drawer front with composite drawer box | |
| Drawer lock | Keyed cam lock with silver face and black insert | |
| Hardware and connectors | Steel cam-and-dowel connectors, hinges where applicable, screws and brackets | |
| Feet and glides | Black round nylon or PP leveling glides | |
| Cable grommet | White oval plastic cable port with flexible cover |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

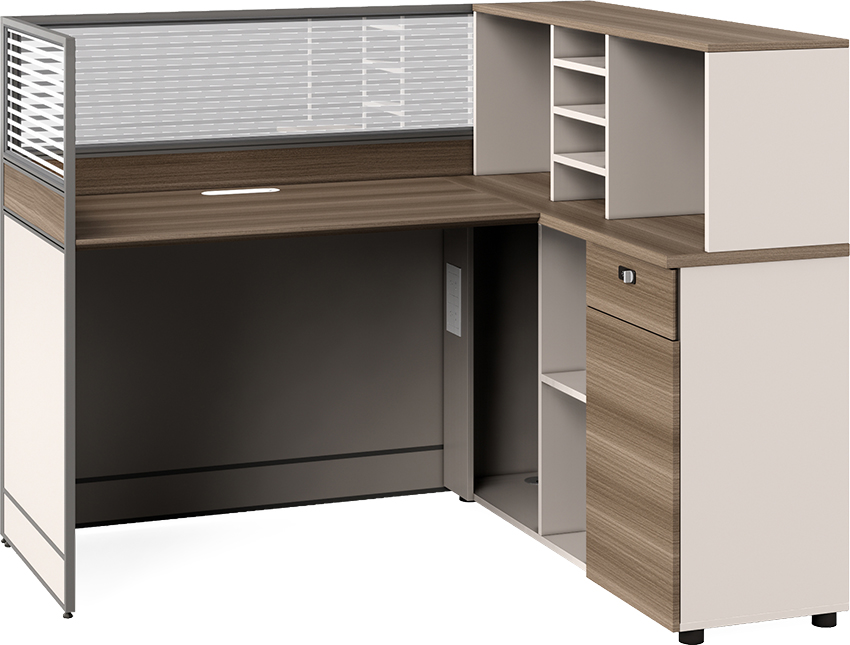

| Front reception and rear work zones | Dual-height layout uses a 1100 mm visitor counter and 750 mm seated work area | |
|---|---|---|
| Privacy screening | 350 mm ribged translucent screen shields the operator area while preserving light transmission | |
| Transaction service | 300 mm deep front deck supports paperwork, visitor sign-in and exchange of documents | |
| Drawer security | Upper lockable drawer secures keys, visitor badges, petty cash and stationery | |
| Open equipment bay | Lower open cavity under the return accepts a CPU, printer paper basket or cable transformer | |
| Overhead document sorting | Four vertical open cubbies provide separated storage for forms, brochures and mail | |
| Cable routing | Oval worktop grommet and lower circular outlet route cables from desktop devices into the rear service cavity | |
| Levelling installation | Black glides at exposed feet compensate for floor variation and protect floor finishes | |
| Side storage integration | Right return combines an open knee-side shelf, lockable drawer and tall woodgrain storage front | |
| Flat-panel assembly | Knock-down panel construction connects end panels, worktops, screens and storage units with cam hardware | |
| Visitor direction control | Solid front modesty panel conceals the seated operator's legs and under-desk equipment | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 4 flat-packed cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate office lobby | Suitable for a single receptionist managing visitor sign-in, calls and access badges while concealing under-desk equipment. | |
|---|---|---|
| Medical or clinic reception | Dual-height counter supports paperwork exchange and the side hutch organizes forms, brochures and patient documents. | |
| Hotel or serviced-apartment entrance | Compact L-shaped service point combines guest interaction, key storage and back-office equipment space. | |
| School or training administration | Provides a staffed front counter with lockable storage for registers, visitor passes and stationery. | |
| Open-plan admin area | Translucent screen creates visual separation without fully blocking light across the workspace. | |
| Small branch office | Integral drawer and open bays reduce the need for separate filing cabinets behind a reception point. | |
| Recommended companion seating | Pair with one operator task chair at the 750 mm work zone and visitor seating in front of the 1100 mm counter. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
