PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1600 × 1200 mm
Overall footprint	2800 x 1600 x 1200 mm
Worksurface height	750 mm
Per-seat worksurface size	1400 x 1600 mm
Partition panel thickness	60 mm
Worksurface board thickness	25 mm
Knee clearance height under desk	650 mm
Knee clearance depth per seat	500 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Desk grommet diameter	60 mm
Slatted ventilation section height	150 mm
Caster wheel diameter on pedestals	50 mm
Modular frame post cross-section	30 x 30 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worksurface static load capacity	100 kg
Mobile pedestal drawer static load	30 kg
Recommended user weight per seat	136 kg
Partition acoustic privacy NRC	0.35
Surface abrasion resistance	2000 cycles
Product net weight	185 kg
Mobile pedestal caster rolling load	80 kg
Structure warranty period	5 years
Hardware warranty period	1 year
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worksurface core	E1 grade melamine-faced MFC board
Worksurface edge banding	2mm thick PVC edge trim
Partition frame	Powder-coated extruded aluminum profiles
Partition infill panels	Fabric-wrapped particleboard with upper slatted metal grille
Support legs and lower modesty panels	Powder-coated cold-rolled steel
Mobile pedestal body	Melamine-faced MFC with metal drawer slides
Pedestal locks and hardware	Zinc alloy lock cores with steel fasteners
Casters for pedestals	Black nylon swivel casters, two with brake locks
Cable grommets	ABS plastic desk cable ports
Partition fabric	Woven polyester upholstery
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy partition layout	Full-perimeter dividers with 1200mm height
Cable management access	Desktop grommet with under-desk raceway routing
Mobile pedestal storage	3-drawer lockable cabinet on casters
Modular connection system	Tool-less aluminum frame connectors
Upper partition slat grille	Horizontal louvered panel section
Pedestal caster locking	Two lockable swivel casters per cabinet
Worksurface finish resistance	Water, scratch and stain resistant melamine
Knock-down assembly structure	Flat-pack CKD construction
Pedestal drawer function	One stationery drawer plus two file drawers
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff zones	Creates divided private workspaces in open office layouts without full wall construction
Call center environments	Provides acoustic and visual separation for focused phone-based work
Small business startup offices	Cost-effective modular seating for two staff with integrated storage
Temporary office fit-outs	Knock-down design supports fast installation and reconfiguration for leased spaces
Administrative work areas	Provides dedicated desk space with storage for routine paperwork and computer tasks
Coworking space dedicated desks	Fixed individual work positions with private storage for monthly members

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables, safety and strength requirements for work surfaces
EN 1022:2018	Seating and desk stability test methods for structural verification
EN 13986:2004+A1:2015	Wood-based panel performance requirements for furniture use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard for mobile pedestal testing
ANSI/BIFMA X7.1-2022	Formaldehyde emission standard for low-emitting furniture materials

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to desktops and pedestals
GB/T 3325-2017	Test methods for metal office furniture, applicable to steel frames and supports
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to MFC substrates
GB/T 10357.1-2013	Desk strength and durability testing standard for structural performance verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desktops and pedestals;
2. GB/T 3325-2017: Test methods for metal office furniture, applicable to steel frames and supports;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MFC substrates;
4. GB/T 10357.1-2013: Desk strength and durability testing standard for structural performance verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW-2P-1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW-2P-1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW-2P-1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

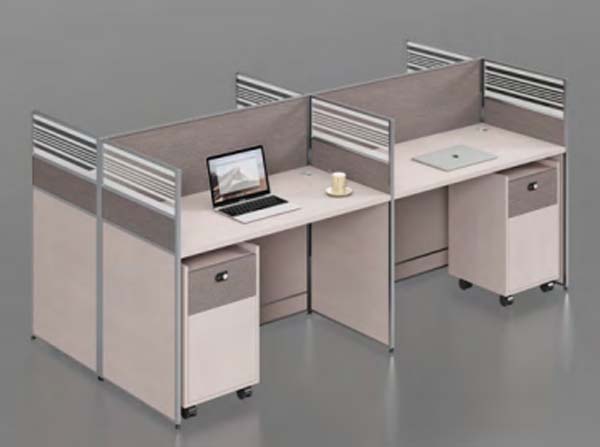

The 2-Person Straight Office Cubicle Workstation with Mobile Pedestals, model CW-2P-1200, is an unbranded modular public furniture piece designed for shared work environments. Visually, it features a straight, symmetrical two-seat layout with full-perimeter privacy partitions that stand at a height that shields seated user lines of sight, paired with wide individual worksurfaces. Each seat has a dedicated worksurface, with an upper horizontal louvered slatted metal grille on partition sections that balances air flow with visual separation, supported by clean, consistent linework across the frame and storage units for a professional, understated office aesthetic. For construction, the workstation uses durable, commercial-grade materials tailored for daily high-use settings. The worksurface is made of E1 grade melamine-faced MFC board with 2mm thick PVC edge trim, supported by powder-coated cold-rolled steel legs and matching lower modesty panels. Privacy partitions are built with powder-coated extruded aluminum frames, holding fabric-wrapped particleboard infill panels for soft visual appeal. The included mobile storage pedestals feature melamine-faced MFC bodies with metal drawer slides, zinc alloy lock cores, steel fasteners, and black nylon swivel casters, two of which include brake locks per unit. Cable management ports are constructed from durable ABS plastic, positioned flush with the worksurface. Core practical functions support focused, organized work. Each unit comes with two 3-drawer lockable mobile pedestals that roll smoothly into position under the desk or can be repositioned as needed, with two lockable casters per cabinet to hold units securely in place during use. The full-height partitions deliver acoustic privacy for reduced cross-seat distraction, while an integrated cable management system includes desktop grommets and under-desk raceway routing to keep power and data cords organized and out of sight. The melamine worksurface finish resists water, scratches, and stains for easy upkeep, and the tool-less aluminum frame connection system supports straightforward assembly and reconfiguration. The worksurface supports static loads appropriate for standard office equipment, with rated weight capacities for seats, drawers, and casters aligned to regular commercial use. This workstation suits a broad range of commercial and select residential-adjacent work settings. It works seamlessly in open plan office staff zones to create divided private work areas without full permanent wall construction, and provides necessary acoustic and visual separation for call center environments focused on phone-based tasks. It is a cost-effective choice for small business startup offices seeking two-person seating with integrated storage, and its knock-down design makes it ideal for temporary office fit-outs in leased spaces where fast installation and future reconfiguration are priorities. It also fits administrative work areas for routine paperwork and computer tasks, as well as coworking spaces for dedicated fixed desks with private lockable storage for monthly members. Procurement teams should note that each set ships in two cartons, with packaging dimensions and weight aligned to standard commercial freight handling, and a reference assembly time that supports efficient on-site setup without specialized tooling.

2-Person Straight Office Cubicle Workstation with Mobile Pedestals Specifications
