Name: 2-Person L-Shaped Partition Office Workstation with Mobile Pedestal and CPU Stand
Brand: KANAITE
SKU: 3L5XAS

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1650 × 1100 mm
Overall footprint (including partition)	2800 x 1650 x 1100 mm
Work surface height (floor to top)	760 mm
Per-user main worktop segment length	1650 mm
Per-user worktop depth	750 mm
Worktop panel thickness	32 mm
Privacy divider thickness	16 mm
Knee clearance height under worktop	660 mm
Knee clearance width at curved front cutout	700 mm
PVC edge banding thickness (worktop)	1 mm
3-drawer mobile pedestal dimensions	400 x 500 x 660 mm
Steel leg box section wall thickness	1.5 mm
Cable management grommet diameter	60 mm
Rolling CPU stand platform dimensions	300 x 500 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per work surface static load capacity	90 kg
Drawer slide cycle rating	50000 open/close cycles
Worktop surface abrasion resistance	2000 cycles
Recommended maximum user weight per seat	136 kg
Product warranty period	5 years
Available finish color count	12 options
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface substrate	Particleboard/MDF core with melamine laminate
Support frame and legs	Powder-coated white mild steel box section
Privacy dividers	White laminated composite panel with steel frame
3-drawer pedestal body	Melamine laminated engineered wood
Drawer slides	Full-extension steel ball-bearing slides
Edge banding	1 mm PVC trim on all panel edges
Mobile pedestal casters	Hard nylon swivel casters (2 locking)
CPU stand casters	Swivel nylon casters with 1 locking brake
Cable grommets	ABS plastic round desk grommets with brush insert
Leg levelers	Adjustable plastic glides at leg bases
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual independent work zones	Two separated L-shaped work surfaces with central dividers
Curved knee cutout design	Contoured front edge per seat for enhanced seated leg comfort
Mobile 3-drawer storage	Rolling pedestal fits under worktop, includes 2 stationery drawers + 1 file drawer
Integrated cable management	Round grommets route power/data cables from worktop to floor
Mobile CPU stand	Rolling platform mounts under worktop for desktop computer placement
Modular reconfiguration	Partition frame allows repositioning or adding adjacent workstation units
Adjustable floor leveling	Threaded glides on each leg adjust up to 10mm for uneven floors
Locking caster function	2 locking casters on mobile pedestal and CPU stand secure units in place
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Modular dual-seat design fits high-density open office staff work areas
Startup and small team workspaces	Compact L-shape provides individual work zones without large private offices
Back-office administrative areas	Integrated storage and cable management supports daily administrative task work
Co-working shared office spaces	Reconfigurable design adapts to changing member seating requirements
Call center work floors	Low-height dividers reduce visual distraction without blocking supervisor visibility
Educational institution staff rooms	Durable commercial construction withstands frequent daily use by faculty

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to worktop and frame performance
EN 527-2:2016	Office work tables dimensional and safety requirements, applicable to work height and clearance
EN 1335-1:2020	Office furniture ergonomic requirements for seated work, applicable to knee clearance dimensions

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to structural load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to mobile pedestal drawer performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to work surfaces and storage cabinets
GB/T 3327-2016	Performance requirements for office desks, applicable to worktop load and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to all laminated wood components
GB/T 13667.1-2015	Steel furniture general requirements, applicable to powder-coated metal frame and legs

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to work surfaces and storage cabinets;
2. GB/T 3327-2016: Performance requirements for office desks, applicable to worktop load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to all laminated wood components;
4. GB/T 13667.1-2015: Steel furniture general requirements, applicable to powder-coated metal frame and legs;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 2PL-OFFICE-WS-1650

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 2PL-OFFICE-WS-1650

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 2PL-OFFICE-WS-1650Open Export Tool

Quick Actions

Post an RFQ

Product Description

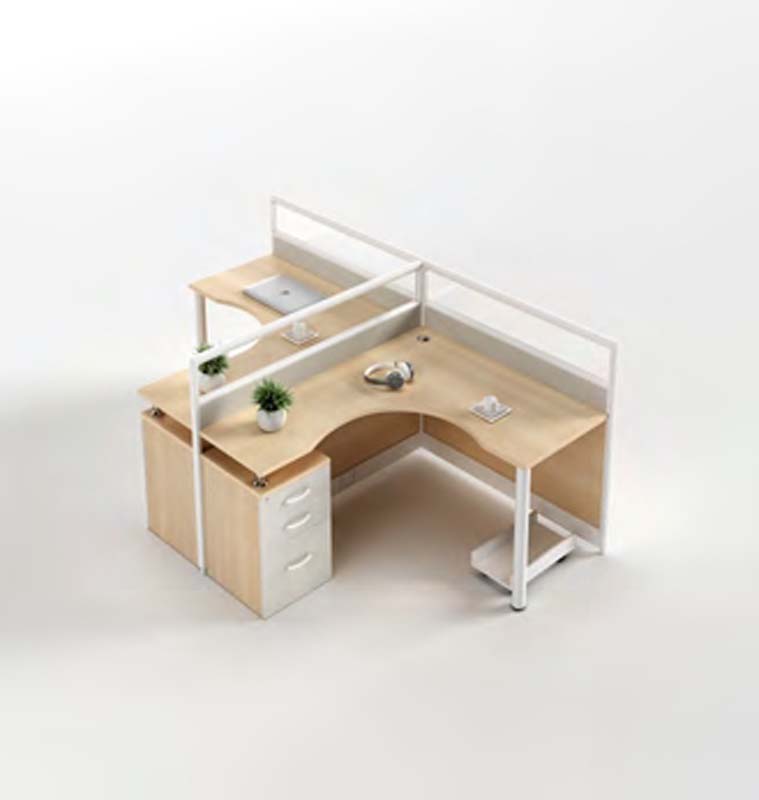

The KANAITE 2-Person L-Shaped Partition Office Workstation, model 2PL-OFFICE-WS-1650, is a purpose-built dual-seat cubicle desk designed to balance individual privacy and collaborative flexibility across professional work environments. Visually, the unit features a streamlined L-shaped layout split into two independent, separated work zones by central privacy dividers, finished in a light wood tone option paired with a clean white metal frame for a modern, unobtrusive aesthetic that complements a wide range of interior design schemes. The footprint accommodates two identical work positions, each with a contoured curved front knee cutout to support comfortable seated posture during extended work sessions.
Constructed for long-term commercial use, the workstation’s work surfaces use a particleboard or MDF core clad in durable melamine laminate, with 1mm PVC edge banding protecting all panel edges from impact and wear. The support structure relies on powder-coated white mild steel box section legs fitted with threaded leveling glides to adapt to uneven flooring, while privacy dividers are made of white laminated composite panels set within steel frames for structural stability. Each unit includes a mobile 3-drawer pedestal built from melamine laminated engineered wood, fitted with full-extension steel ball-bearing slides rated for repeated daily use, and mounted on hard nylon swivel casters with two locking mechanisms to secure the unit when positioned. A matching mobile CPU stand with lockable swivel nylon casters fits under the work surface, and round ABS plastic cable grommets with brush inserts are integrated into each worktop to route power and data cables neatly out of sight. The work surface supports a static load of 90kg per individual surface, with a 150kg uniformly distributed top load reference, and is rated to withstand surface abrasion through regular use.
This workstation is well suited for high-density open plan office spaces, startup and small team work areas, back-office administrative zones, co-working shared facilities, call center floors, and educational institution staff rooms. Its modular frame design allows users to reposition components or add adjacent workstation units as team needs evolve, while the low-profile dividers reduce visual distraction without blocking sight lines for supervisors in open floor plans. The unit ships with packaging aligned to standard freight logistics, with a noted reference assembly time of 40 minutes per set, and is backed by a 5-year product warranty. Procurement teams can select from 12 available finish options to match existing space decor, and should note the work surface height, per-user worktop dimensions, and under-desk knee clearance to confirm alignment with ergonomic requirements for intended users, as well as the mobile storage and CPU stand inclusions that eliminate the need for separate under-desk furniture purchases for basic workstation setups.

2-Person L-Shaped Partition Office Workstation with Mobile Pedestal and CPU Stand Specifications
