Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface uniform static load capacity | 100 kg | |
|---|---|---|
| Total workstation net weight | 185 kg | |
| Seating capacity | 2 persons | |
| Caster load rating per caster | 40 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface and shelf panels | 18mm thick melamine-faced particle board, scratch-resistant laminate finish | |
|---|---|---|
| Desk side panels and modesty panels | 25mm thick melamine-faced MDF, matte white finish | |
| Partition screen frame | 1.2mm thick powder-coated aluminum alloy, silver anodized finish | |
| Partition screen lower panel | Fabric-wrapped 9mm thick MDF core, muted green color | |
| Mobile pedestal drawer slides | 3-section full-extension cold-rolled steel slides, zinc-plated finish | |
| Mobile casters | 50mm diameter black nylon dual-wheel casters, 2 locking casters per unit |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

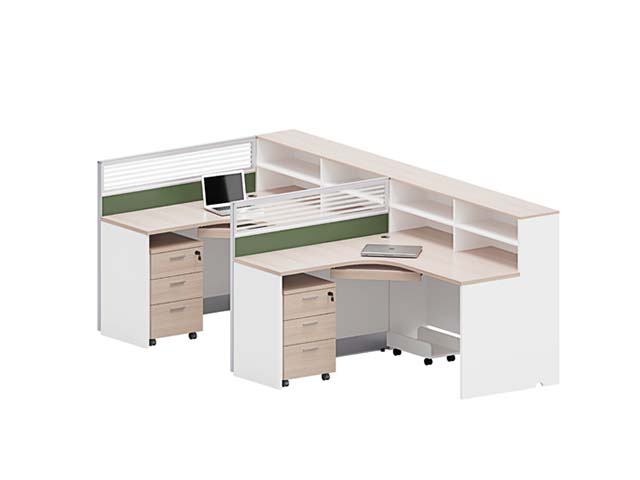

| Workstation layout | Facing opposite L-shaped configuration for 2 independent users, separated by dual privacy screens | |
|---|---|---|
| Storage configuration | Each seat includes 1 lockable 3-drawer mobile pedestal for personal file storage | |
| Cable management | Desktop grommets route power and data cables to under-desk management tray | |
| Mobility features | Mobile pedestals and CPU caddies are fitted with lockable casters for easy repositioning |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping gross weight | 210 kg | |
|---|---|---|
| Total shipping volume (CBM) | 0.62 | |
| 20ft GP container loading quantity | 42 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Creates defined individual work zones without permanent wall construction | |
|---|---|---|
| Corporate department work areas | Provides integrated personal storage and cable management for daily administrative and computer tasks |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
