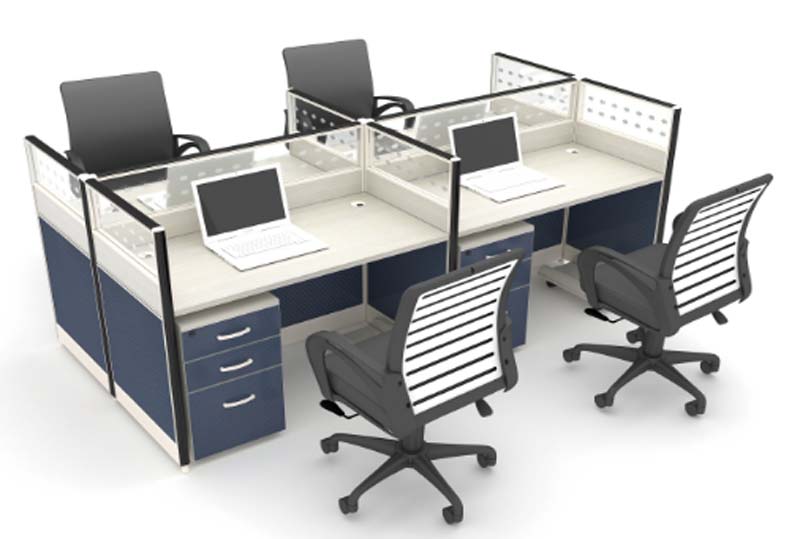

Product supplier4-Person Cross Cluster Office Cubicle Workstation with Glass Partitions and Drawer Pedestals, 25mm E1 grade melamine-faced particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2840 × 2840 × 1100 mm | |
|---|---|---|
| Overall cluster dimensions | 2840 x 2840 x 1100 mm | |
| Per-seat desktop dimensions | 1400 x 700 mm | |
| Standard desktop working height | 750 mm | |
| Partition panel thickness | 40 mm | |
| Lower solid partition height | 750 mm | |
| Upper glass partition height | 350 mm | |
| Under-desk knee clearance height | 680 mm | |
| Under-desk knee clearance depth | 650 mm | |
| 3-drawer pedestal dimensions | 400 x 500 x 600 mm | |
| Desktop cable grommet diameter | 60 mm | |
| Adjustable foot height adjustment range | 20 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation net weight | 158 kg | |
|---|---|---|
| Individual desktop static load capacity | 100 kg | |
| Desktop surface abrasion resistance | 2000 cycles | |
| Recommended user capacity | 4 people | |
| Partition frame corrosion resistance | 48 hours | |
| Product warranty period | 5 years | |
| Available color options | 6 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface board | 25mm E1 grade melamine-faced particleboard | |
|---|---|---|
| Work surface edge banding | 2mm thick PVC edge banding, impact-resistant | |
| Lower partition panels | Fabric-faced medium density fiberboard, blue finish | |
| Upper partition infill | 5mm frosted semi-transparent glass with black aluminum frame | |
| Partition frame construction | 1.2mm thick powder-coated aluminum extrusion | |
| Drawer pedestals | 18mm melamine-faced particleboard with metal drawer slides | |
| Desk support structure | 1.0mm thick powder-coated steel frame | |
| Leveling feet | Nylon base with steel threaded adjustment stem | |
| Drawer handles | Brushed aluminum curved pull handles | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cross partition layout | Central cross divider separates four independent facing work zones | |
|---|---|---|
| Cable management system | Desktop grommets route cables to under-desk separated wiring channels | |
| Pedestal storage | Each station includes 3 lockable drawers for stationery and file storage | |
| Floor leveling adjustment | Threaded adjustable feet compensate for uneven office flooring | |
| Modular assembly | Knock-down design allows reconfiguration into linear or 2-person layouts | |
| Seated privacy design | 750mm lower solid panel blocks seated cross-line sight between users | |
| Cable separation | Dedicated channels separate power and data cables to reduce interference | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office space | Ideal for 4-member teams in open office layouts to reduce distraction | |
|---|---|---|
| Call center and admin work areas | Suitable for high-density staff seating with dedicated storage per user | |
| Startup and co-working spaces | Modular design supports flexible team expansion and reconfiguration | |
| Corporate staff departments | Fits standard HR, finance, and operations team seating arrangements | |
| Government procurement projects | Meets standard public sector office furniture durability and safety requirements | |
| Small business office setups | Provides complete turnkey seating for small teams without custom build requirements |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Applicable for office work desk mechanical safety and strength requirements | |
|---|---|---|
| EN 1335-1:2020 | Applicable reference for seated user ergonomic clearance dimensions | |
| EN 1022:2018 | Applicable for furniture seating stability reference for desk compatibility | |
| EN 15372:2016 | Applicable for office furniture storage unit structural requirements |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2024 | Applicable for general technical requirements of wooden office furniture | |
|---|---|---|
| GB 18580-2017 | Applicable for formaldehyde emission limits for wood-based panels | |
| GB/T 15102-2017 | Applicable for melamine-faced wood-based panel surface performance | |
| GB 18584-2024 | Applicable for harmful substance limits in wooden furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2024: Applicable for general technical requirements of wooden office furniture; 2. GB 18580-2017: Applicable for formaldehyde emission limits for wood-based panels; 3. GB/T 15102-2017: Applicable for melamine-faced wood-based panel surface performance; 4. GB 18584-2024: Applicable for harmful substance limits in wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
