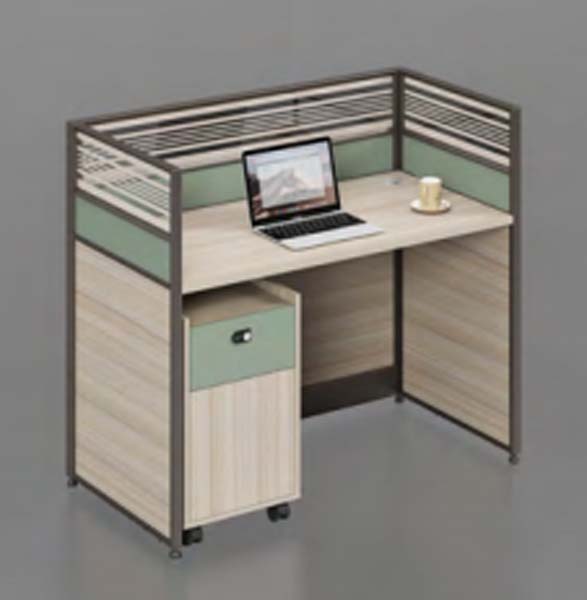

Product supplierSingle-Person Partitioned Office Cubicle Workstation with Mobile Pedestal, 25mm E1 grade melamine-faced MFC panel with 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1400 × 1200 × 1100 mm | |
|---|---|---|
| worksurface height | 750 mm | |
| worksurface thickness | 25 mm | |
| knee well clearance height | 600 mm | |
| knee well clearance width | 700 mm | |
| partition panel thickness | 32 mm | |
| upper mesh screen height | 300 mm | |
| lower solid partition height | 800 mm | |
| mobile pedestal dimensions | 400 x 500 x 584 mm | |
| caster diameter | 50 mm | |
| metal frame tubing size | 30 x 30 mm | |
| desktop grommet diameter | 60 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total unit net weight | 68 kg | |
|---|---|---|
| worksurface static load capacity | 100 kg | |
| recommended user weight capacity | 136 kg | |
| surface abrasion resistance | 2000 cycles | |
| warranty period | 5 years | |
| available color options | 60 | |
| caster rolling load rating per unit | 40 kg | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| work surface | 25mm E1 grade melamine-faced MFC panel with 2mm PVC edge banding | |
|---|---|---|
| partition metal frame | Powder-coated dark gray square steel tubing | |
| upper partition section | Perforated metal mesh screen with semi-opaque finish | |
| lower partition panels | 18mm melamine-faced particleboard panels in sage green and light oak finish | |
| mobile pedestal carcass | 16mm melamine-faced manufactured wood with matching light oak and sage green fronts | |
| drawer lock hardware | Zinc alloy cylinder key lock with black plastic face | |
| drawer slides | Cold-rolled steel telescopic ball-bearing drawer runners | |
| casters | PA6 hard plastic swivel casters with metal mounting stems | |
| leveling feet | Nylon adjustable leveling glides integrated with base caster mounts | |
| cable grommet | ABS plastic round cable port with removable cover | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| three-sided privacy partition | Wraps left, rear and right sides to block sightlines for focused single-user work | |
|---|---|---|
| mobile pedestal storage | Rolls fully out from under desk on casters to access lockable drawer storage | |
| modular reconfiguration | Frame connectors allow linking multiple units to build multi-seat cubicle layouts | |
| cable management port | Round desktop grommet routes monitor and power cords below work surface | |
| level adjustment | Integrated glides adjust up to 15mm to compensate for uneven floor surfaces | |
| drawer locking | Keyed cylinder lock secures pedestal drawer to protect personal work items | |
| mobility for repositioning | Base casters allow individual workstation movement during office layout changes | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open plan offices | Provides individual privacy screens in open work areas to reduce visual distraction | |
|---|---|---|
| call center and admin areas | Single-seat layout fits dense staff deployments with modular connection capability | |
| home office dedicated workspaces | Compact footprint includes integrated storage for remote work setups | |
| temporary office fit-outs | Castered base and modular design support rapid layout changes and reconfiguration | |
| startup and co-working spaces | Balances individual focus and easy rearrangement for dynamic team sizes | |
| educational staff offices | Durable commercial construction supports daily long-term use for administrative staff |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional safety and adjustment requirements, applicable to user clearances | |
| EN 1335-2:2009 | Office furniture safety requirements for seating adjacent workstations | |
| EN 1022:2018 | Furniture stability testing for freestanding office desks and storage units |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for static load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard applicable to mobile under-desk pedestals | |
| ANSI/BIFMA X5.11-2015 | Caster base strength and rolling durability for mobile office furniture components |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and pedestal components | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks and workstations, applicable to structural and load testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office furniture | |
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes, applicable to melamine worktops |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and pedestal components; 2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to structural and load testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office furniture; 4. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, applicable to melamine worktops; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
