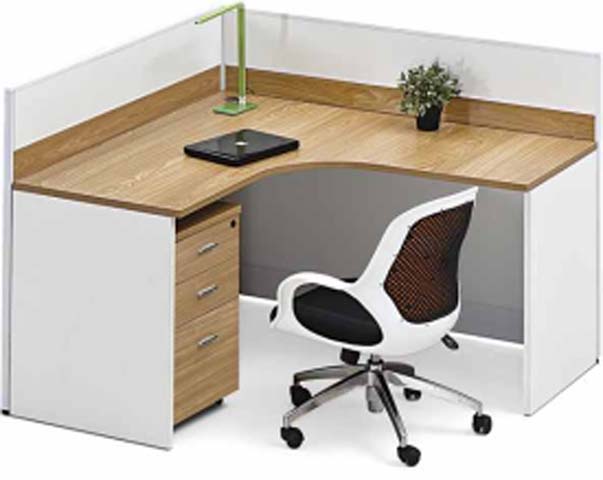

Single-Person Curved-Front L-Shaped Cubicle Office Workstation with 3-Drawer Pedestal (model CB-L1880-OAKWHT-3DR) is listed under L-Shaped Office Desk, with overall dimensions of 1880 × 1880 × 1220 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Light,oak/white,finish,3-sided,privacy,enclosure,integrated,3-drawer,storage,L-shaped,corner,layout,curved,knee,cutout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 1880 x 1880 x 1220 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Work surface thickness | 25 mm | |
| Main work surface depth | 610 mm | |
| Return work surface width | 1220 mm | |
| Privacy panel height | 1220 mm | |
| Privacy panel thickness | 41 mm | |
| Under-desk knee clearance height | 690 mm | |
| Knee opening width (curved front) | 800 mm | |
| 3-drawer pedestal dimensions | 476 x 470 x 676 mm | |
| Box drawer internal dimensions | 305 x 387 x 152 mm | |
| File drawer internal dimensions | 305 x 387 x 241 mm | |
| Cable grommet diameter | 60 mm | |
| Edge banding thickness | 2 mm | |
| Leveler adjustment range | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 91 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg per drawer | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Pedestal caster load rating | 50 kg total | |
| Privacy panel noise reduction coefficient | 0.35 | |
| Surface abrasion resistance | 400 cycles | |
| Adjustable leveler static load per foot | 100 kg | |
| Total assembled unit weight | 158 kg | |
| Commercial limited warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm thick particleboard core with thermally fused light oak melamine laminate | |
|---|---|---|
| Privacy divider panels | MDF core with foam padding, fabric tackable surface, aluminum frame edge trim | |
| Side and modesty panels | 18mm thick particleboard with white melamine finish, shock-absorbent PVC edge banding | |
| 3-drawer pedestal | 25mm thick light oak melamine drawer fronts, white powder-coated steel drawer bodies, ball-bearing full-extension slides | |
| Support frame and hardware | 1.5mm thick powder-coated white steel frame, zinc-plated connecting brackets, nylon adjustable leveling feet | |
| Pedestal casters | 50mm diameter black nylon twin-wheel casters, 2 with locking brake |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 2 utility box drawers plus 1 lockable hanging file drawer for letter/legal/A4 documents | |
|---|---|---|
| Cable management | 2 desktop cable grommets plus under-desk removable cable channel for power and data routing | |
| Privacy function | 3-sided mid-height dividers block visual distraction, fabric surface accepts push pins for notices | |
| Mobility and leveling | Mobile pedestal rolls on casters for flexible under-desk positioning, workstation levelers adjust for uneven floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office individual workstations | Provides privacy and dedicated storage for focused task work in shared office spaces | |
|---|---|---|
| Small business private offices | Compact L-shaped layout fits corner spaces with integrated filing for solo workers |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2016 | Office work tables safety and strength requirements, applicable to work surface and frame performance | |
|---|---|---|
| EN 1335-2:2018 | Office chair safety (for paired seating reference), specifies stability and strength for task chair compatibility | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to drawer pedestal structural integrity |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to work surface load, stability, and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to drawer slide cycle and lock performance | |
| ANSI/BIFMA X5.6-2021 | Panel systems standard, applicable to privacy panel structural connection and tackability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate panel work surfaces and cabinet components | |
|---|---|---|
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to work surface static load and stability verification | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required for indoor office furniture air quality compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate panel work surfaces and cabinet components; 2. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to work surface static load and stability verification; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required for indoor office furniture air quality compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
