Name: Curved Corner L-Shaped Office Cubicle Workstation with Mobile Pedestal
Brand: aibi furniture
SKU: 4DXTC4

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1500 × 1500 × 1200 mm
Overall workstation footprint	1500 x 1500 x 1200 mm
Work surface height	750 mm
Worktop thickness	25 mm
Partition panel height	1200 mm
Partition panel thickness	60 mm
Knee clearance width (corner opening)	800 mm
Knee clearance height under worktop	680 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Cable grommet diameter	80 mm
Base adjustable foot height	15 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static load capacity	150 kg
Recommended user weight capacity	120 kg
Workstation net weight	110 kg
Surface abrasion resistance	2000 cycles
Warranty period	10 years
Available finish/color options	60
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	E1 grade melamine-faced particleboard with 2mm PVC edge banding
Partition frame	Powder-coated aluminum profile, 1.2mm wall thickness
Partition infill panels	Fabric-upholstered hardboard with 0.6mm steel lower modesty panel
Side support panels	Melamine-faced particleboard with matte white finish
Mobile pedestal	0.8mm thick powder-coated steel body with lock and chrome-plated handles
Cable management components	ABS plastic grommet and internal PVC cable raceways under worktop
Leveling feet	Nylon base with steel threaded stem
Pedestal casters	50mm diameter nylon twin-wheel casters, 2 lockable
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated privacy screening	3-sided 1200mm high fabric partitions block cross-desk sightlines for seated users
Cable management	Corner grommet routes power/data cables from desktop to under-desk raceways
Under-desk storage	Lockable 2-drawer mobile pedestal fits fully under left worktop for personal storage
Floor leveling	Adjustable threaded feet compensate for up to 15mm of uneven floor surface
Modular connectivity	Pre-drilled connection points link to adjacent identical workstations for multi-staff layouts
Drawer locking	Integrated key lock secures both pedestal drawers for personal item security
Mobility for storage unit	Twin-wheel casters allow pedestal to be pulled out for access or repositioned
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Modular design connects to form rows of staff seats with visual privacy
Small business team spaces	Single or paired units provide dedicated work areas for startup teams
Call center seating	1200mm partition height reduces distraction while maintaining supervisor visibility
Government/enterprise staff positions	Durable commercial-grade construction meets public procurement furniture standards
Temporary office fit-outs	Knock-down design allows fast installation and reconfiguration for short-term leases

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements for commercial workstations
EN 1335-1:2000	Office furniture ergonomic dimensions for seated work surface clearance
EN 71-3:2019	Migration of certain elements, applicable to surface finish safety

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for structural performance and durability testing
ANSI/BIFMA X5.9-2019	Storage units standard for pedestal drawer slide and load performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and panel components
GB/T 3327-2019	Technical requirements for office desks, applicable to work surface and structural stability
GB 18580-2017	Formaldehyde emission limits for wood-based panels, minimum E1 grade for office furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and panel components;
2. GB/T 3327-2019: Technical requirements for office desks, applicable to work surface and structural stability;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade for office furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L1500-CRV-MP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L1500-CRV-MP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L1500-CRV-MPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

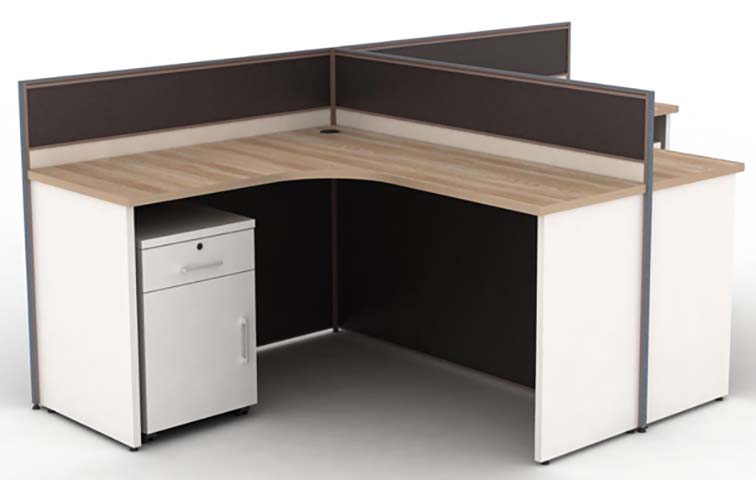

The Curved Corner L-Shaped Office Cubicle Workstation with Mobile Pedestal from aibi furniture, model CUB-L1500-CRV-MP, is a purpose-built L-shaped corner office cubicle workstation desk designed to balance privacy, functionality, and flexible layout options for professional work environments. Visually, the workstation features a smooth curved corner work surface framed by three-sided fabric-upholstered privacy partitions that sit 1200mm high, creating a defined, enclosed personal work zone while retaining an open, approachable aesthetic. Its curved work surface softens the angular lines of traditional L-shaped cubicles, with a matte white finish on side support panels and chrome-plated pedestal handles lending a clean, contemporary look that complements a wide range of office interiors. Constructed for commercial durability, the work surface uses E1 grade melamine-faced particleboard with 2mm PVC edge banding, cut to a 25mm thickness, with a static load capacity of 150kg. Partition frames are built from 1.2mm wall thickness powder-coated aluminum, with infill panels combining fabric-upholstered hardboard and a 0.6mm steel lower modesty panel for added privacy and structural stability. The included mobile pedestal features a 0.8mm thick powder-coated steel body, fitted with 50mm diameter nylon twin-wheel casters, two of which are lockable for secure positioning. Nylon leveling feet with steel threaded stems adjust to compensate for uneven floor surfaces, while ABS plastic grommets and under-desk PVC cable raceways form an integrated cable management system. Major joints use M6-M10 connectors with at least two fixing points per connection for long-term structural integrity. Practical features are tailored to daily office use: the three-sided partitions block cross-desk sightlines for seated users to reduce distraction, while the partition height retains visibility for supervisors in open collaborative spaces. The lockable two-drawer mobile pedestal fits fully under the left worktop, with an integrated key lock securing both drawers for personal item storage, and casters allowing easy repositioning or access. Pre-drilled connection points enable seamless linking of identical units to scale layouts as needed, while the corner cable grommet routes power and data cables neatly away from the work surface. The unit offers 750mm work surface height, with 680mm of knee clearance height under the worktop and 800mm of knee clearance width at the corner opening for comfortable seated use. This workstation suits a broad range of commercial spaces, including open-plan offices where connected rows can create structured staff seating with consistent visual privacy, small business and startup team spaces where single or paired units deliver dedicated work areas, call centers where reduced visual distraction supports focused customer interaction, government and enterprise staff positions where commercial-grade construction aligns with public procurement requirements, and temporary office fit-outs where its knock-down design supports fast installation and reconfiguration for short-term lease spaces. For procurement, teams should note each workstation is delivered in two cartons per set, with a packaged gross weight of 120kg per set and a reference assembly time of 40 minutes per unit. The product is backed by a 10-year warranty, and is available in 60 finish and color options to align with existing interior design schemes.

Curved Corner L-Shaped Office Cubicle Workstation with Mobile Pedestal Specifications
